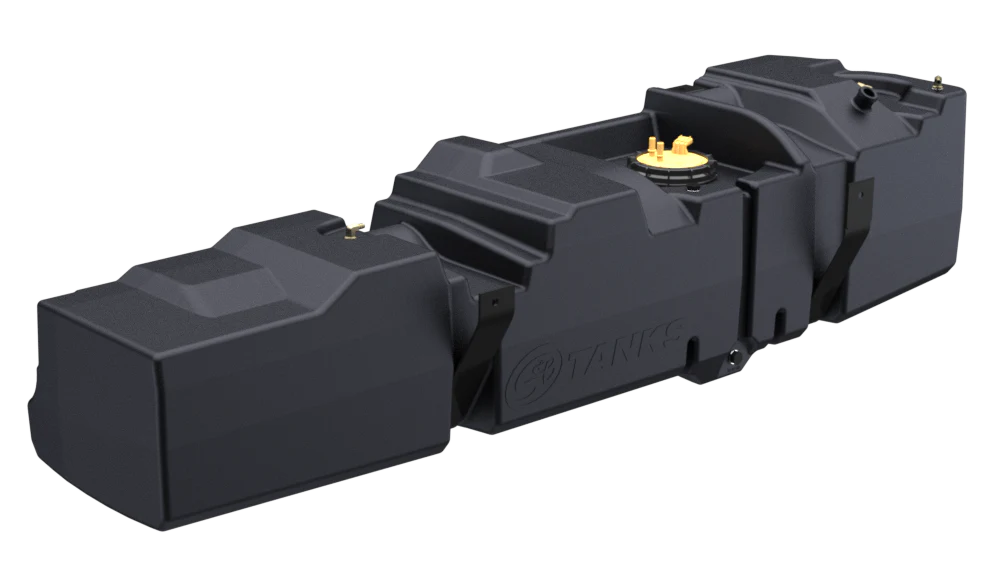

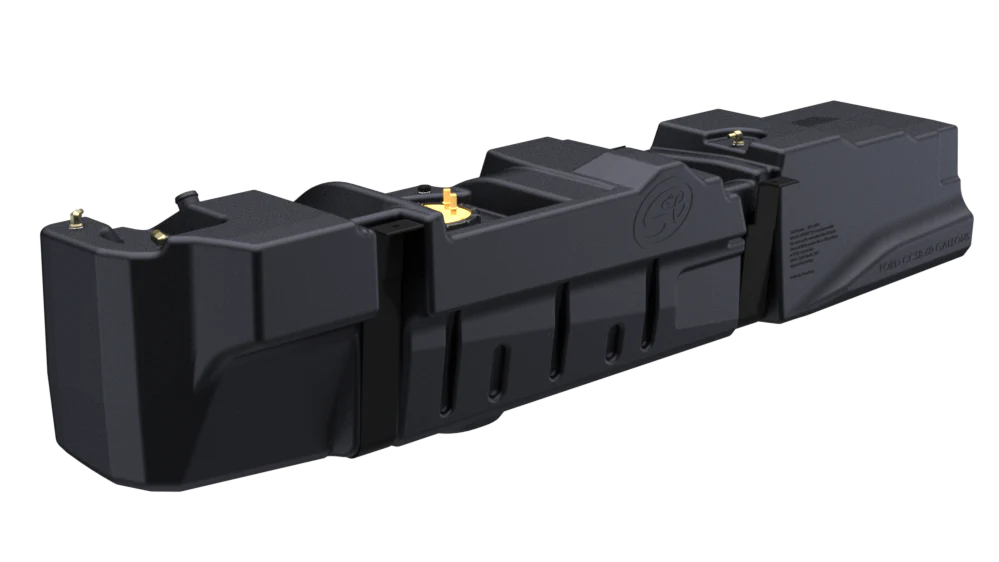

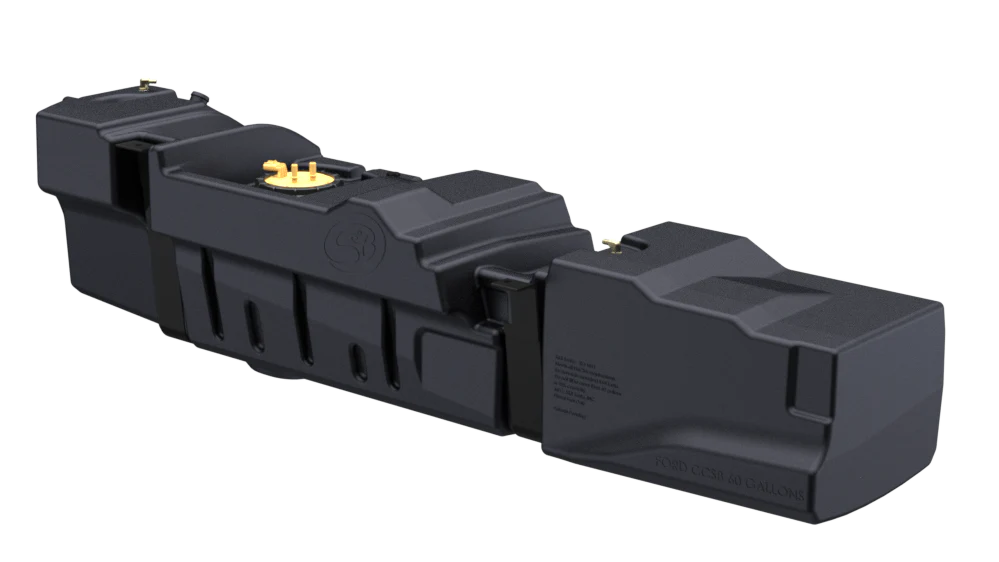

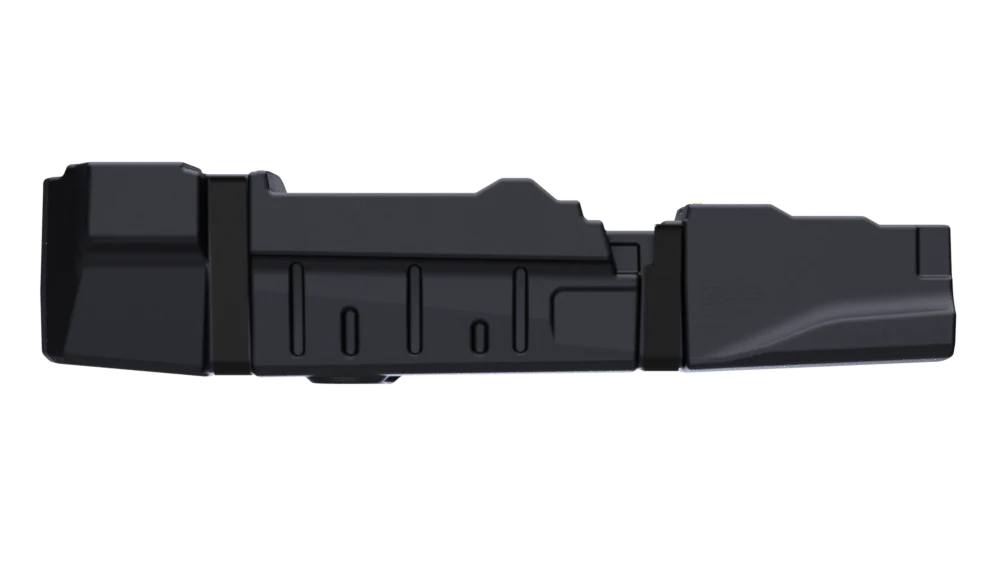

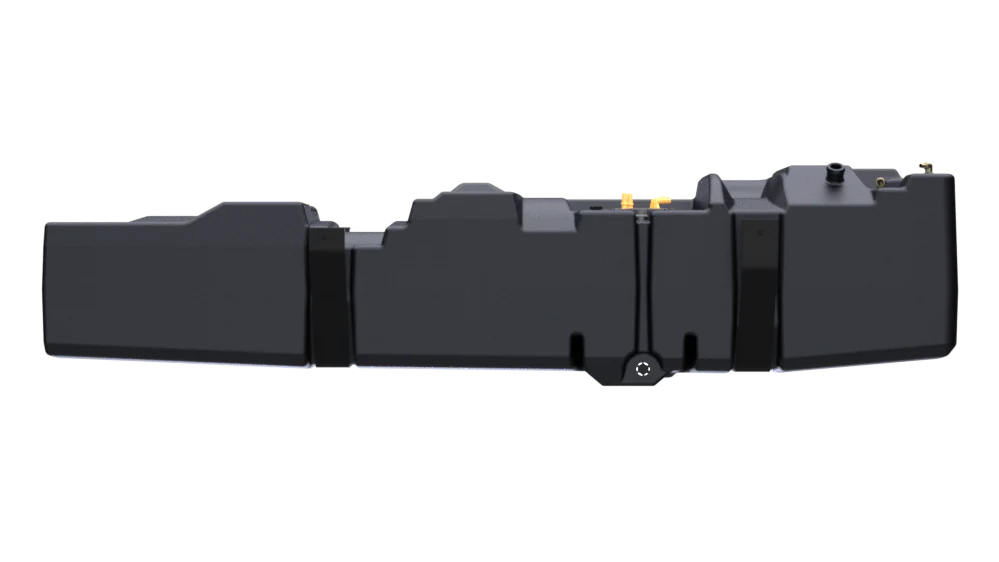

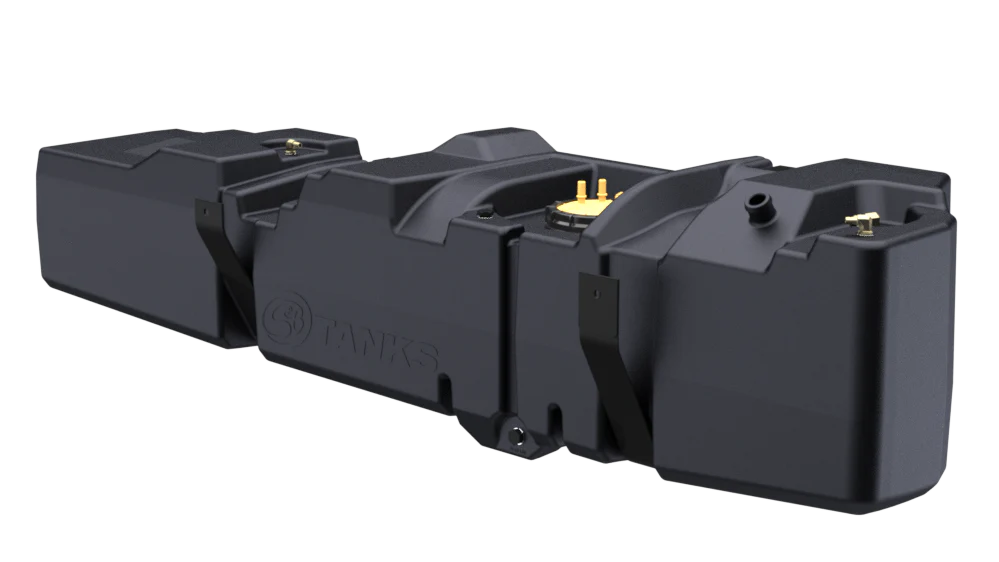

S&B's 60-gallon fuel tank directly replaces the OEM 29-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 9 more gallons than competitor tanks allowing you to save time, go futher, and get more out of your truck! Go big or go home!
TRANSFER PUMP & AFTERMARKET LIFT PUMP
Save space in your truck bed and pull fuel out of your large S&B Tank with our GPI Transfer pump kit.This tank features a built in sump which can be used for aftermarket lift pump installation, if desired. S&B recommends aftermarket lift pumps be installed according to the pump manufacturer's instructions only. The S&B sump will not cure typical "1/4 tank issues" common with aftermarket lift pumps.
This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.
| Compatible with gooseneck and 5th wheel | Yes |
| Compatible with oe skid plate | No |
| Dimensions | 79" X 17.37" X 19.37" |
| Drain | Yes |
| Embedded fitting thread size | 1/2" NPT |

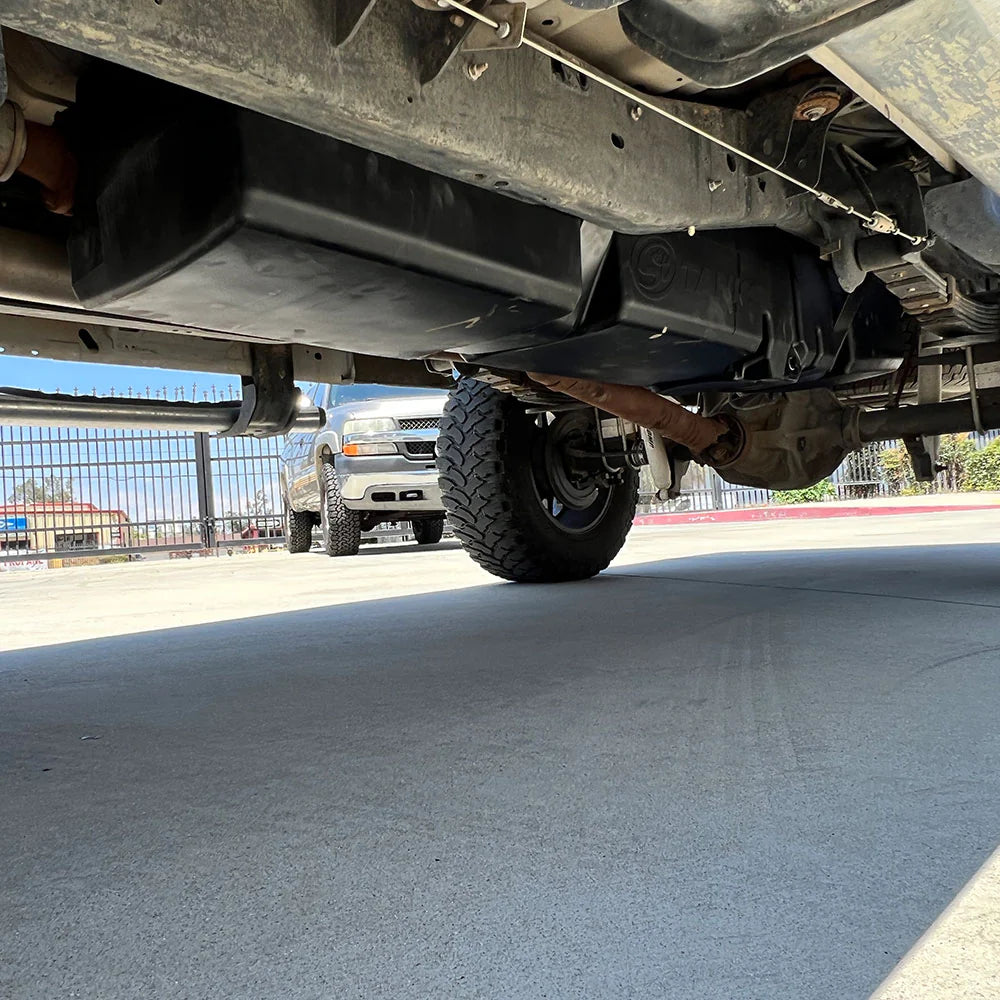

| Ground clearance compare to oe tank | 2.9" lower than stock. |
| Oem capacity | 29 Gallons |
| Sending unit | OE |
| Straps included | Yes |
| Sump | Yes |
| S&B Capacity (Approximate) | 60 gallons |
| Tank type | Midship |
| Transfer pump ready | Yes |
| Weight dry | 45lbs |
