The 2000-2010 Ford F350, F450 & F550 Cab and Chassis trucks are equipped with an after-axle 40 gallon fuel tank. These OEM tanks have a failure prone coating inside the tank. Once the coating becomes unstable inside the tank, the laminate peels off and gets picked up into the fuel system. If not addressed, the containments can ruin the entire fuel system on the truck.
THE SOLUTION
S&B Tanks are made out of Crosslink Polyethylene. This material will not delaminate and is the SOLUTION to fixing issues with tank delamination. If you truck is not showings signs of delamination, this tank is a great way to protect fuel system
OEM STYLE LOCKING RING
Easily secure your OEM sending unit into the S&B tank by transferring over your original Ford locking ring. This is a faster and easier way to put secure the sending unit into the S&B Tank.
Important Note: The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically. Skid plates and straps are NOT included. These parts are reused.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.

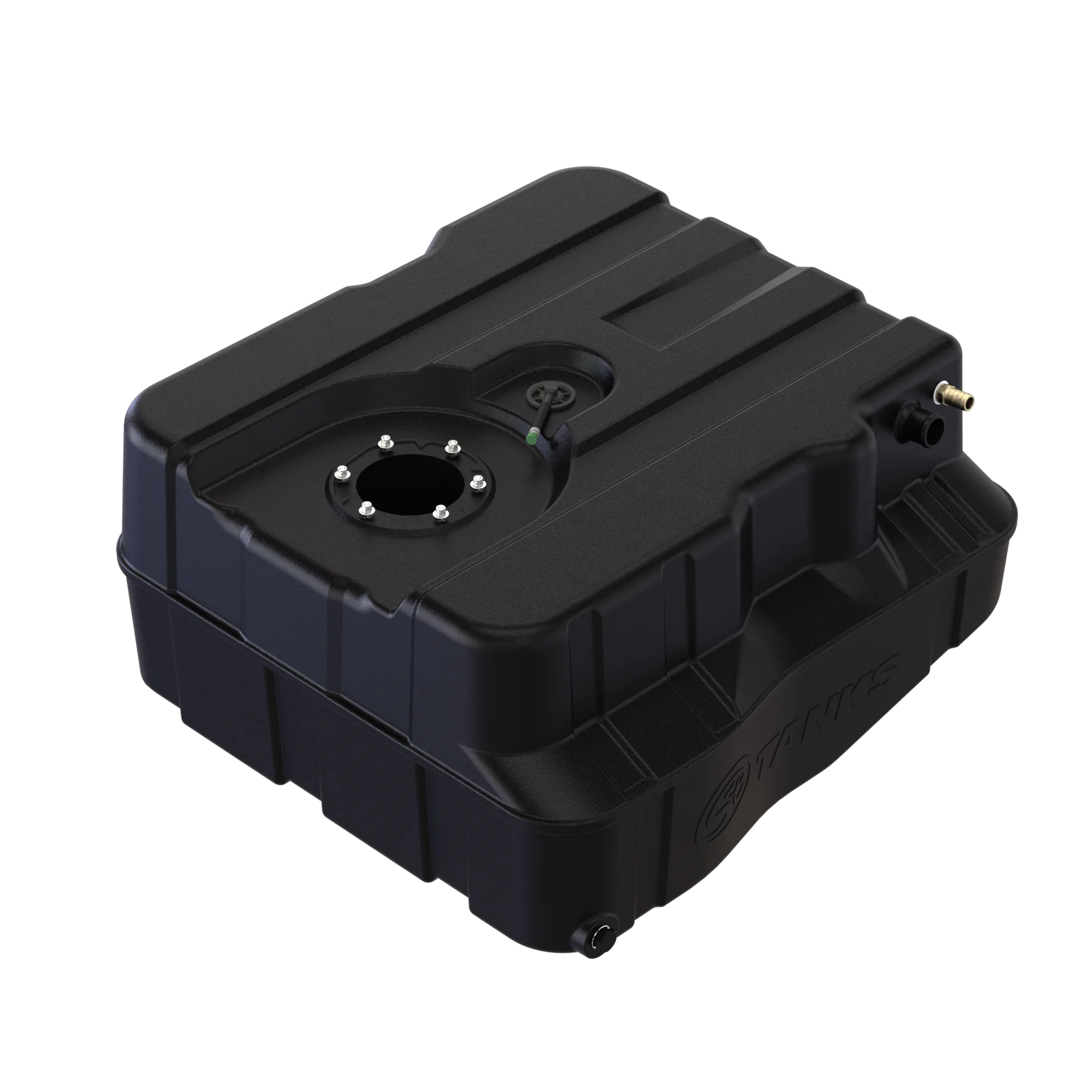

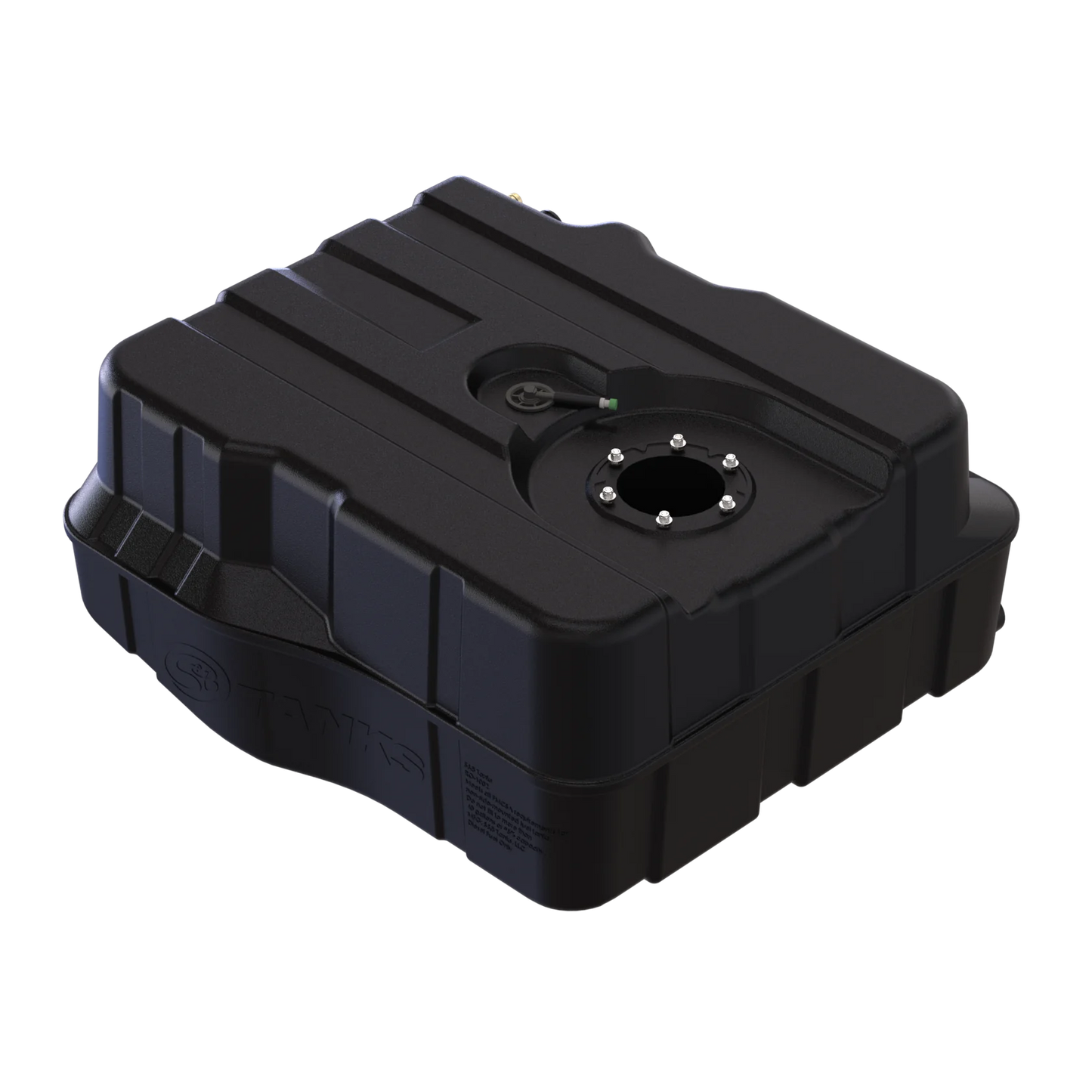

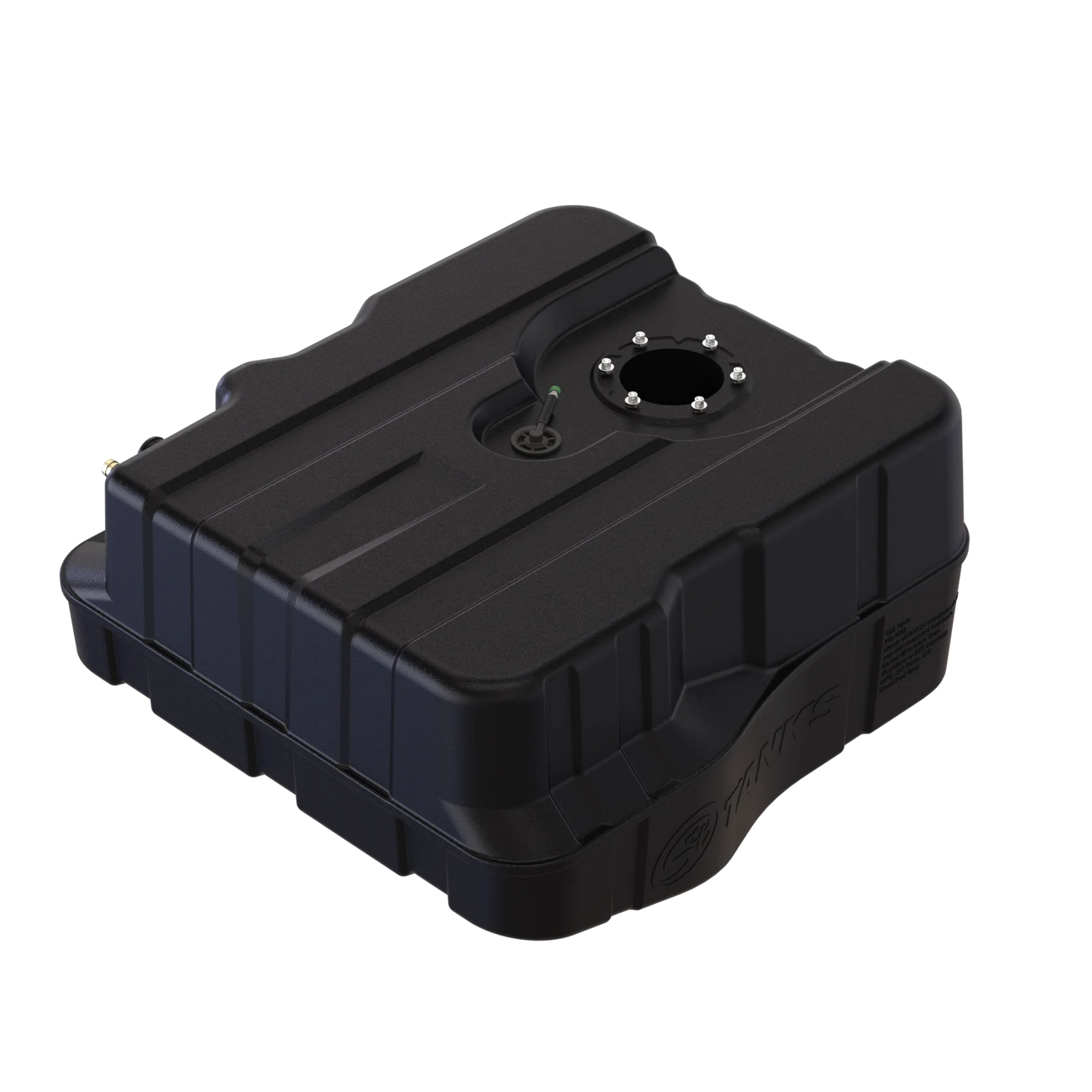

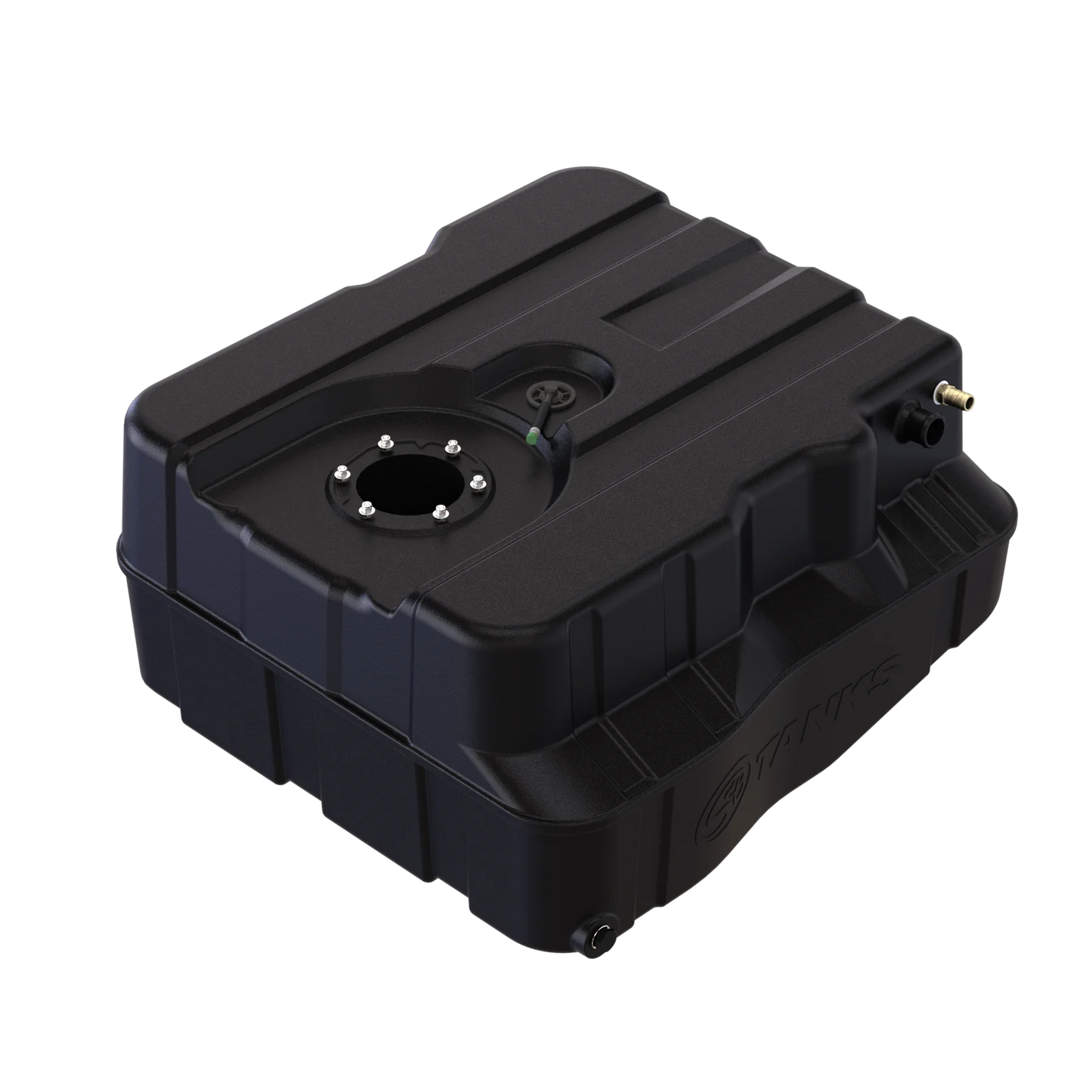

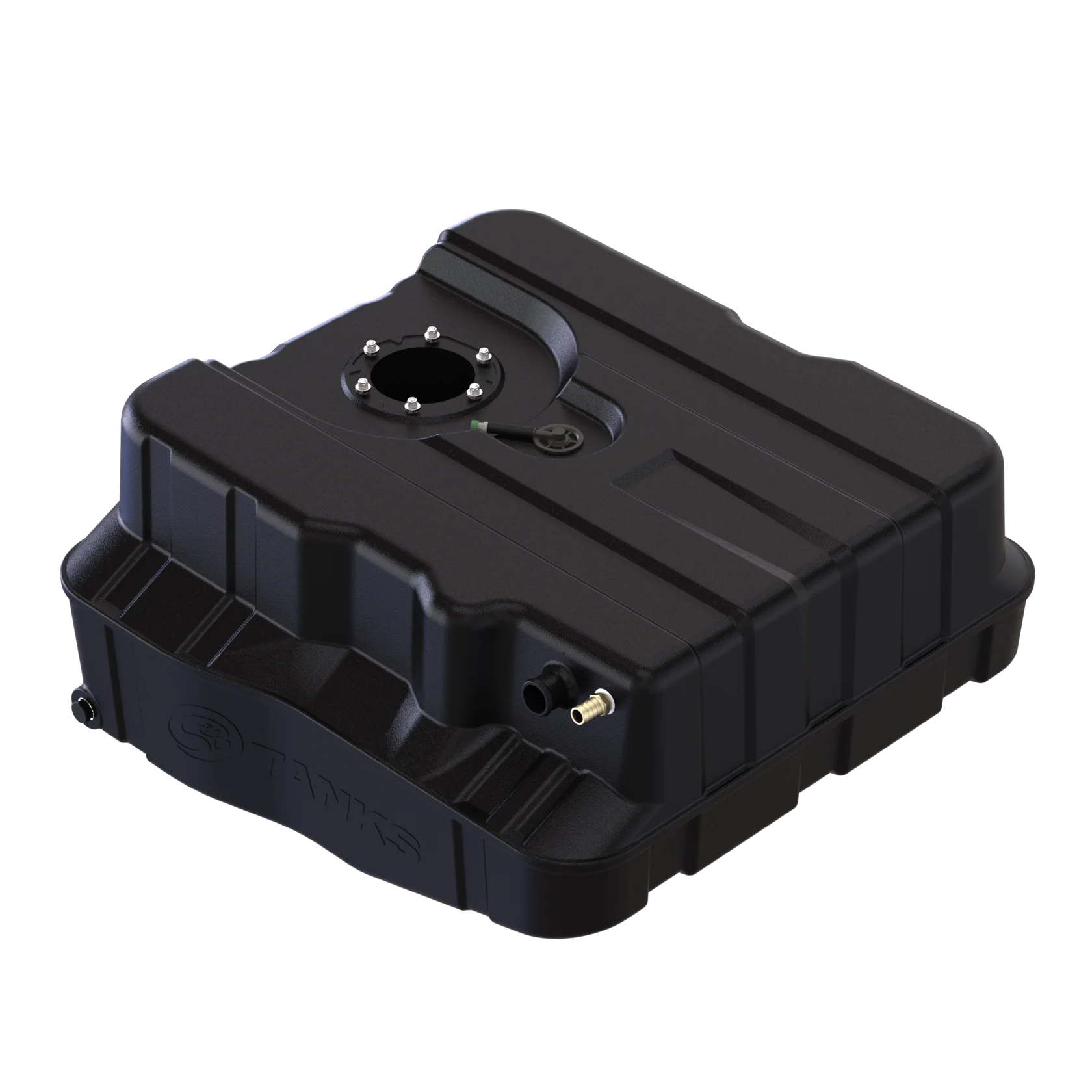

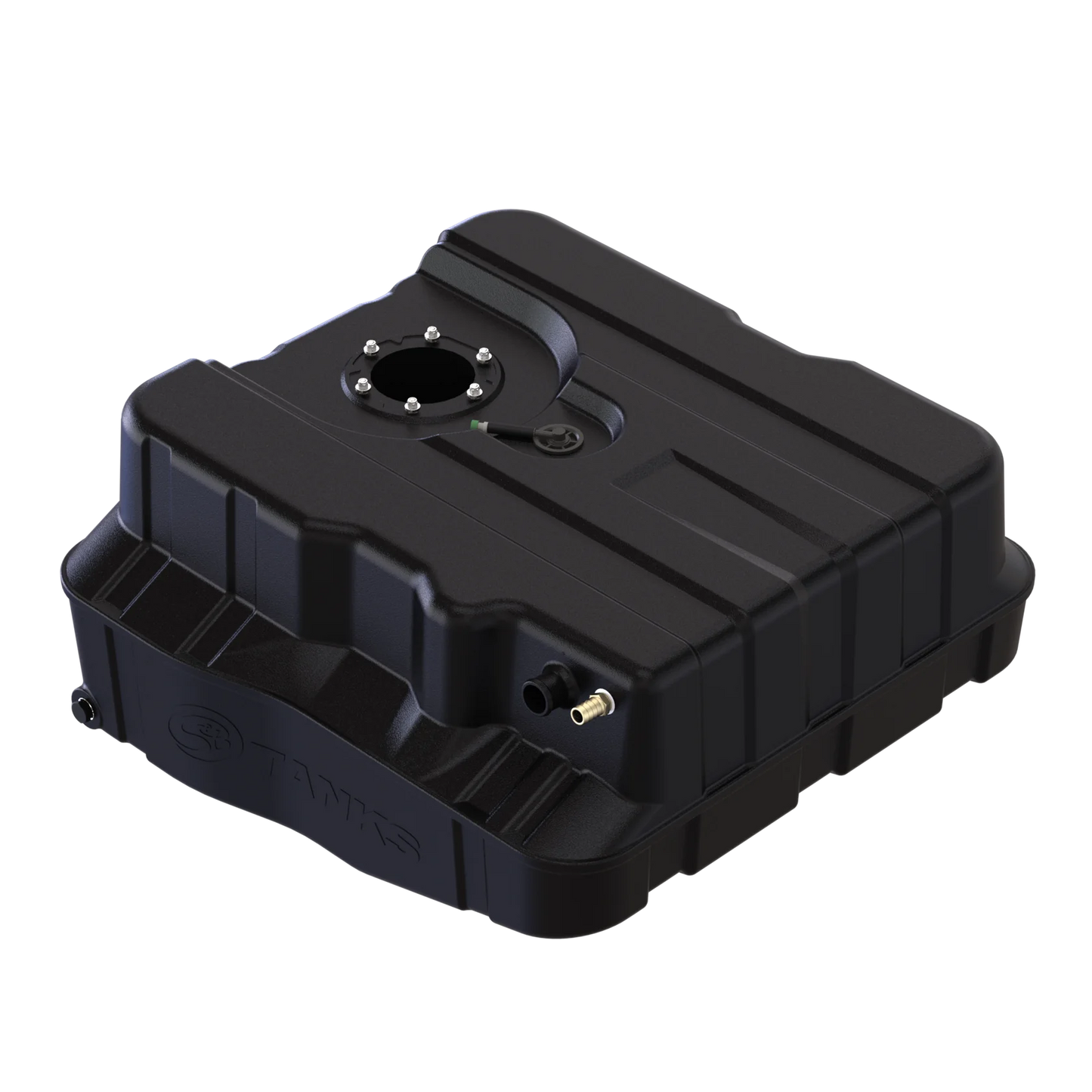

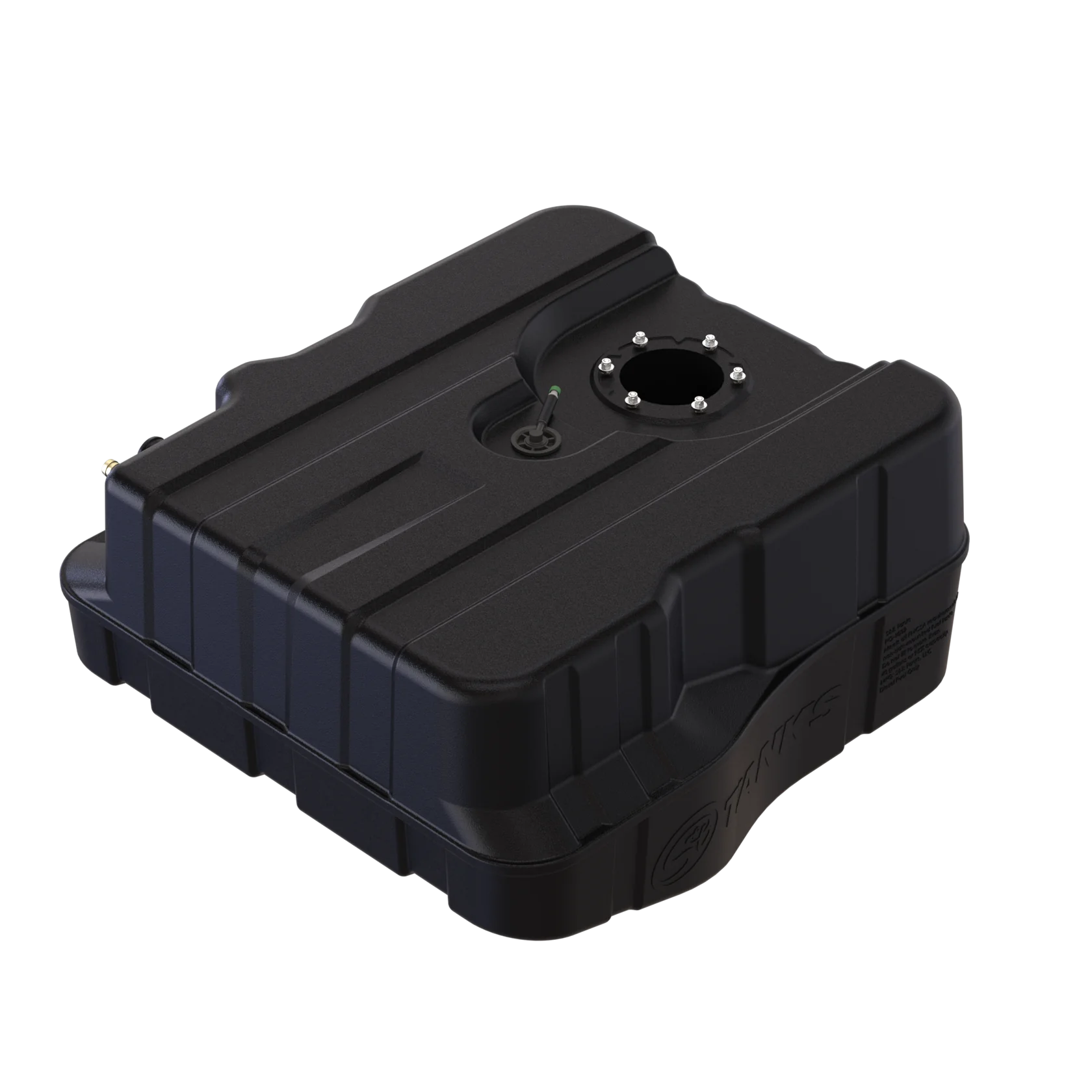

This is a direct replacement to the OEM 40 gallon tank. This and your current OEM tank are the same size and shape. This poly tank resolves the problem of the OEM steel tank delaminating. This tank does NOT fit 1999 trucks.
| Compatible with gooseneck and 5th wheel | Yes |
| Compatible with oe skid plate | Yes |
| Dimensions | 31.84" X 31.77" X 14.94" |
| Drain | Yes |
| Embedded fitting thread size | 1/2" NPT |
| Ground clearance compare to oe tank | Same |
| Sending unit | OE |
| Straps included | No |
| Sump | No |
| S&B Capacity (Approximate) | 40 gallons |
| Tank type | AFT |
| Transfer pump ready | No |
| Weight dry | 28lbs |
