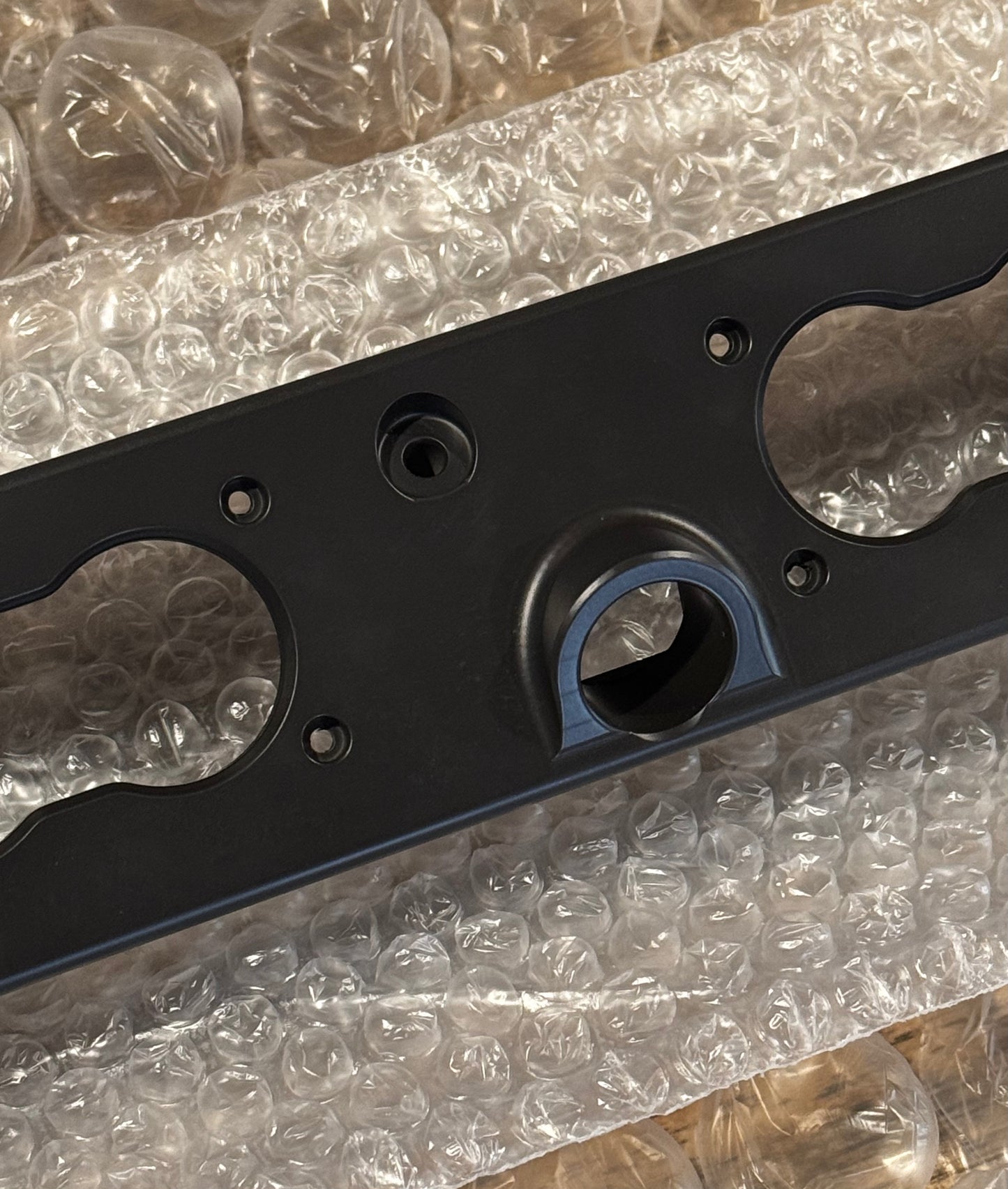

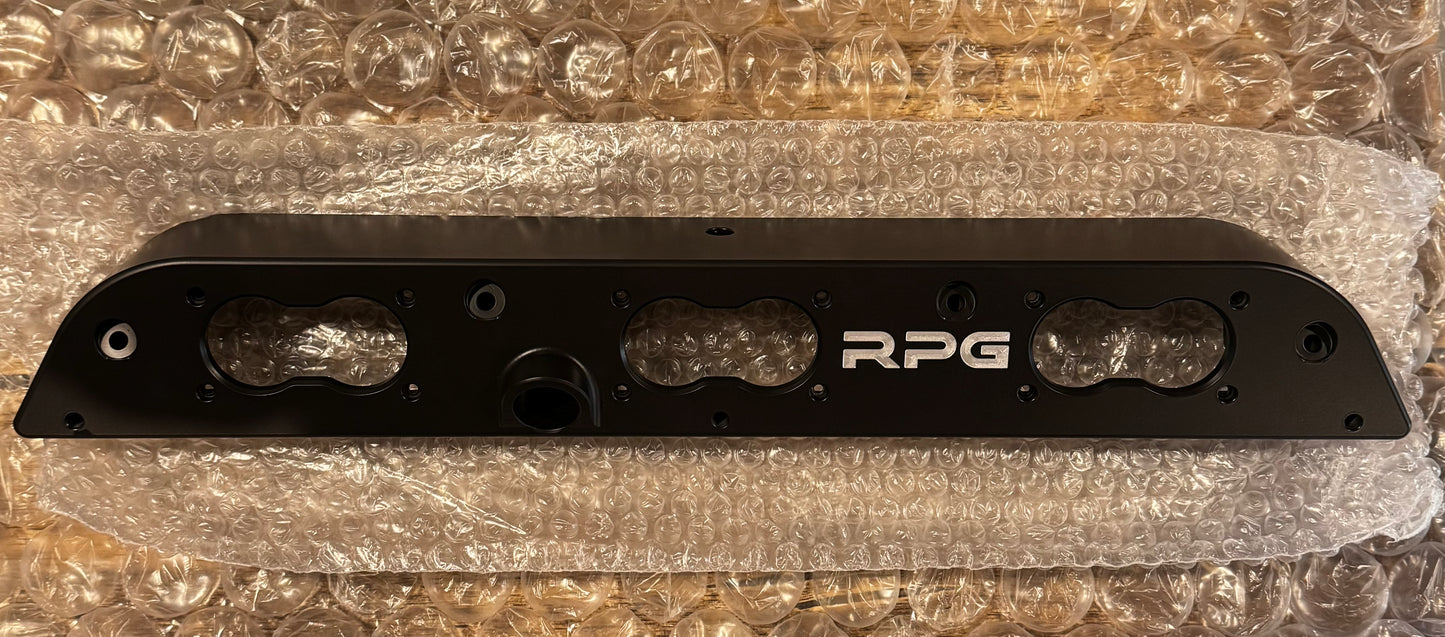

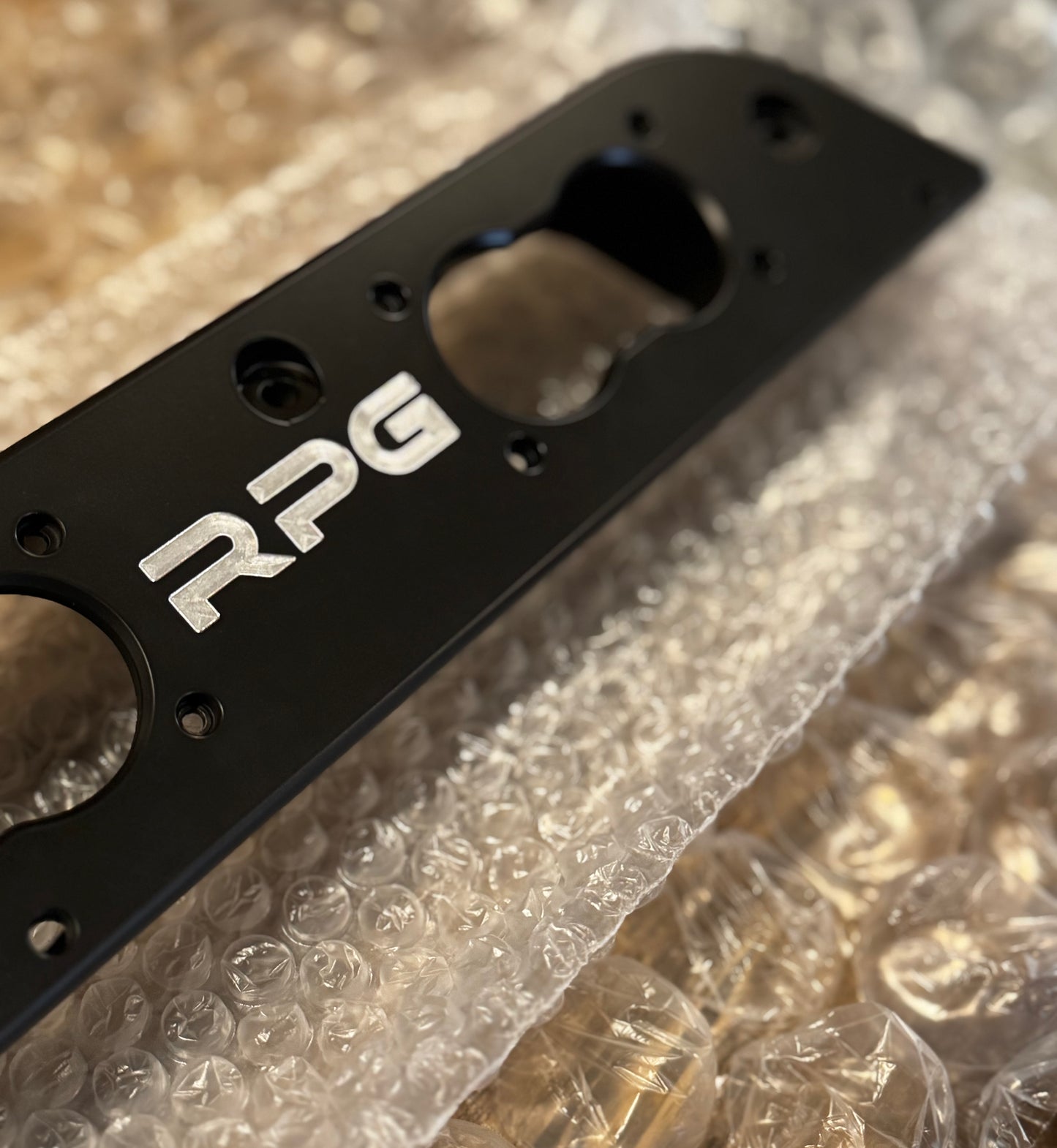

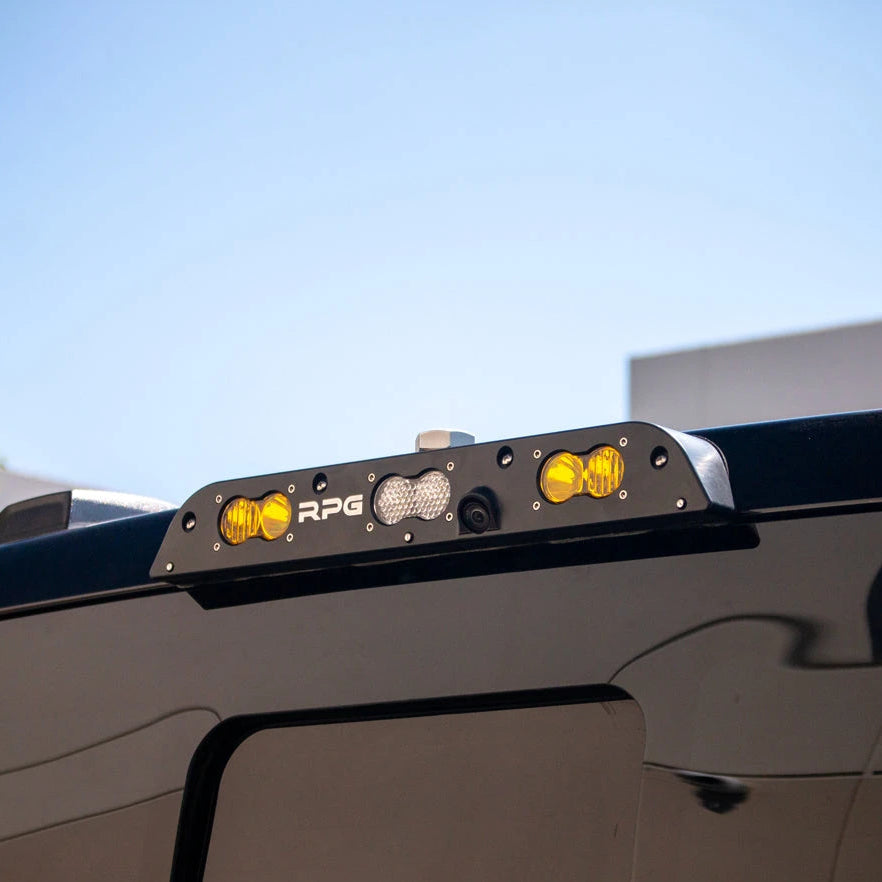

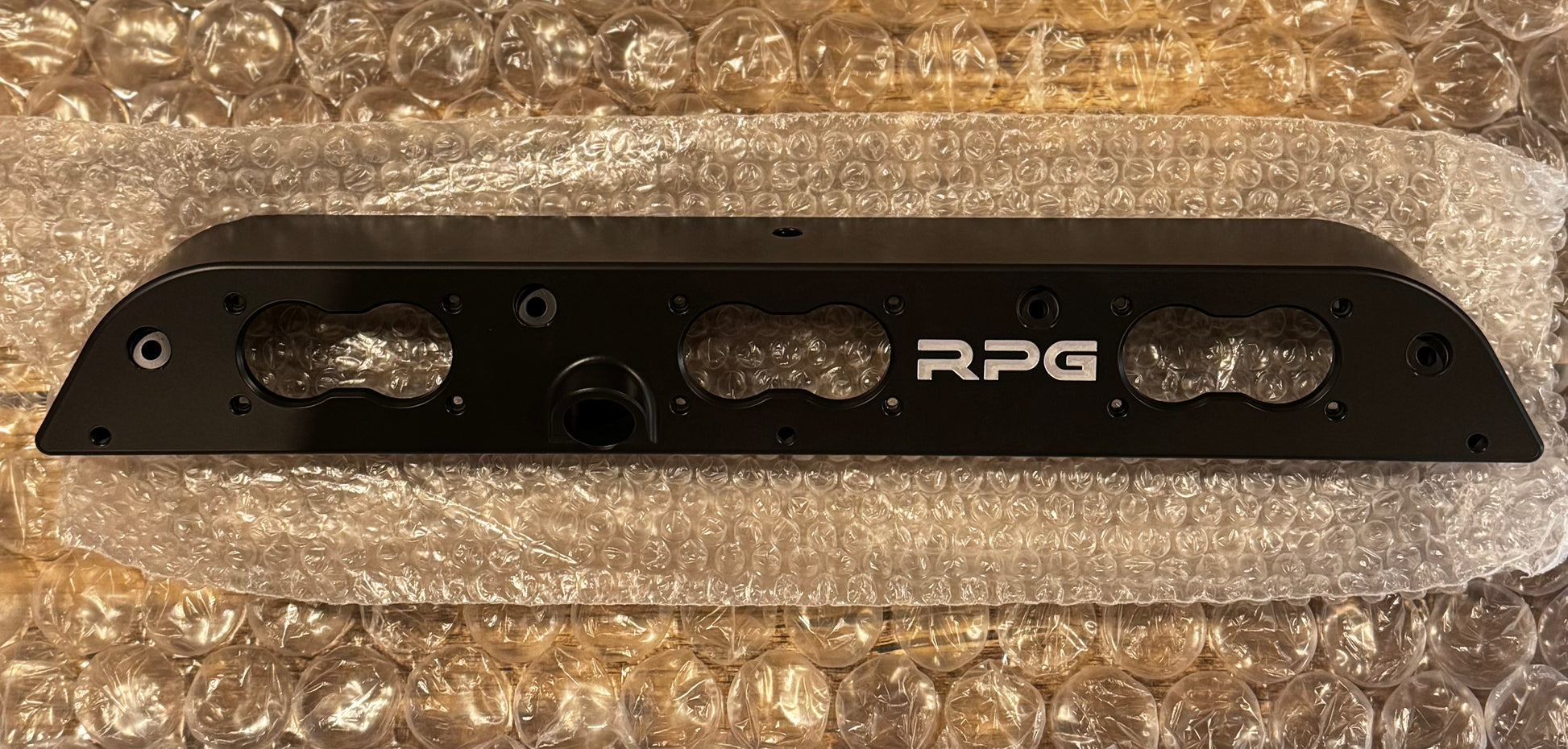

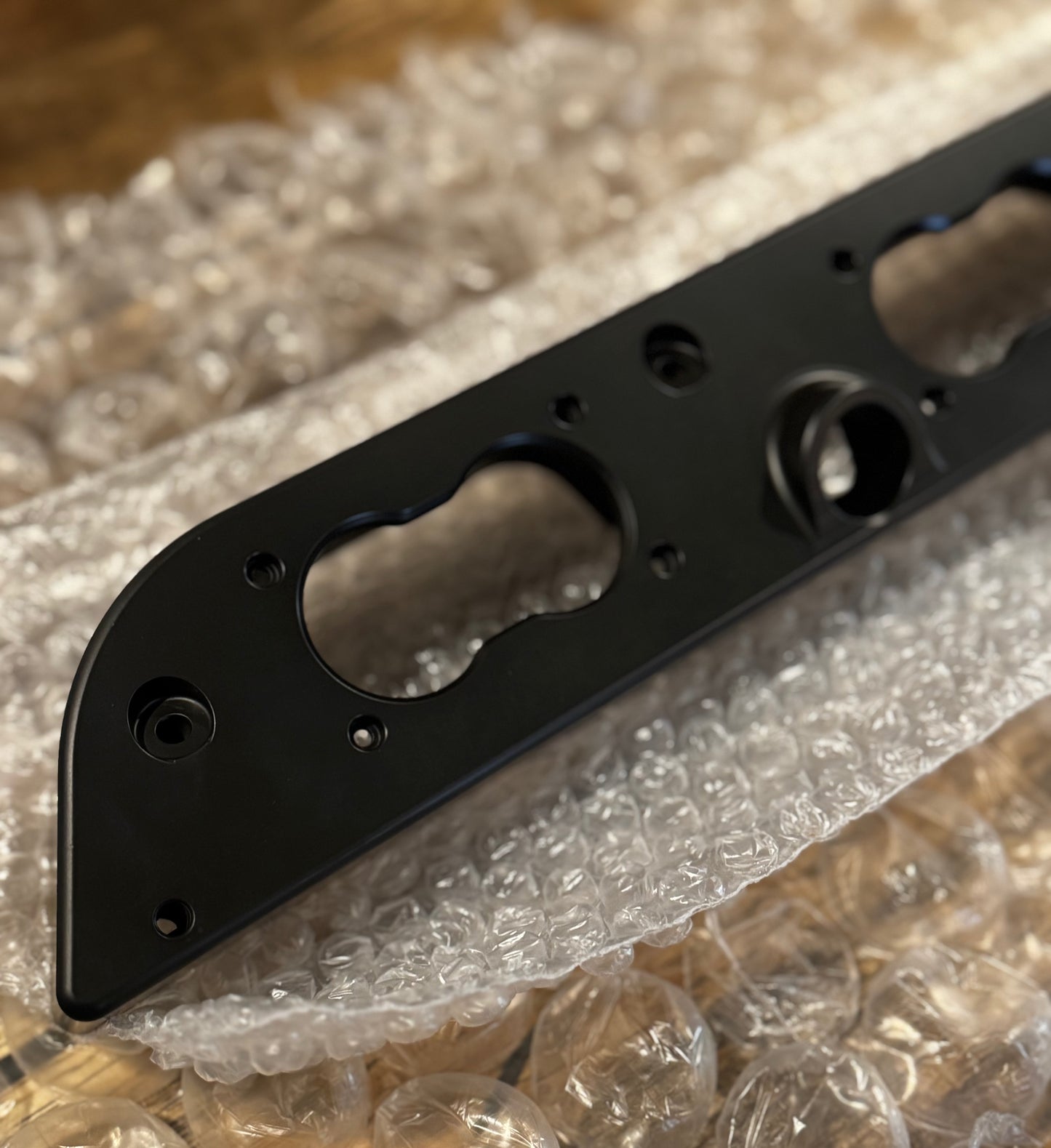

RPG Offroad GEN 3 Raptor/R Billet Third Brake Light Kit

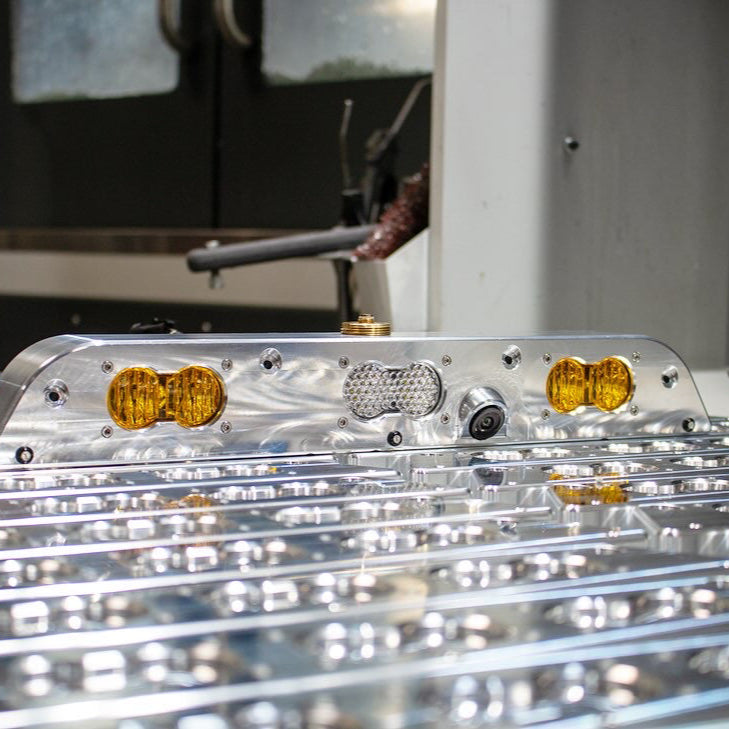

• Proudly Machined In-House in the USA
• 6061-T6 Billet Aluminum
• Includes LED Brake Lights
• Includes NMO Mount with 17ft Cable
• Includes Custom Gasket
• Option to Add Baja Designs S2 Sport Package
• Option to add a wiring harness (Basic, Reverse, or Stop/Tail/Turn)
• Black Cerakote Finish

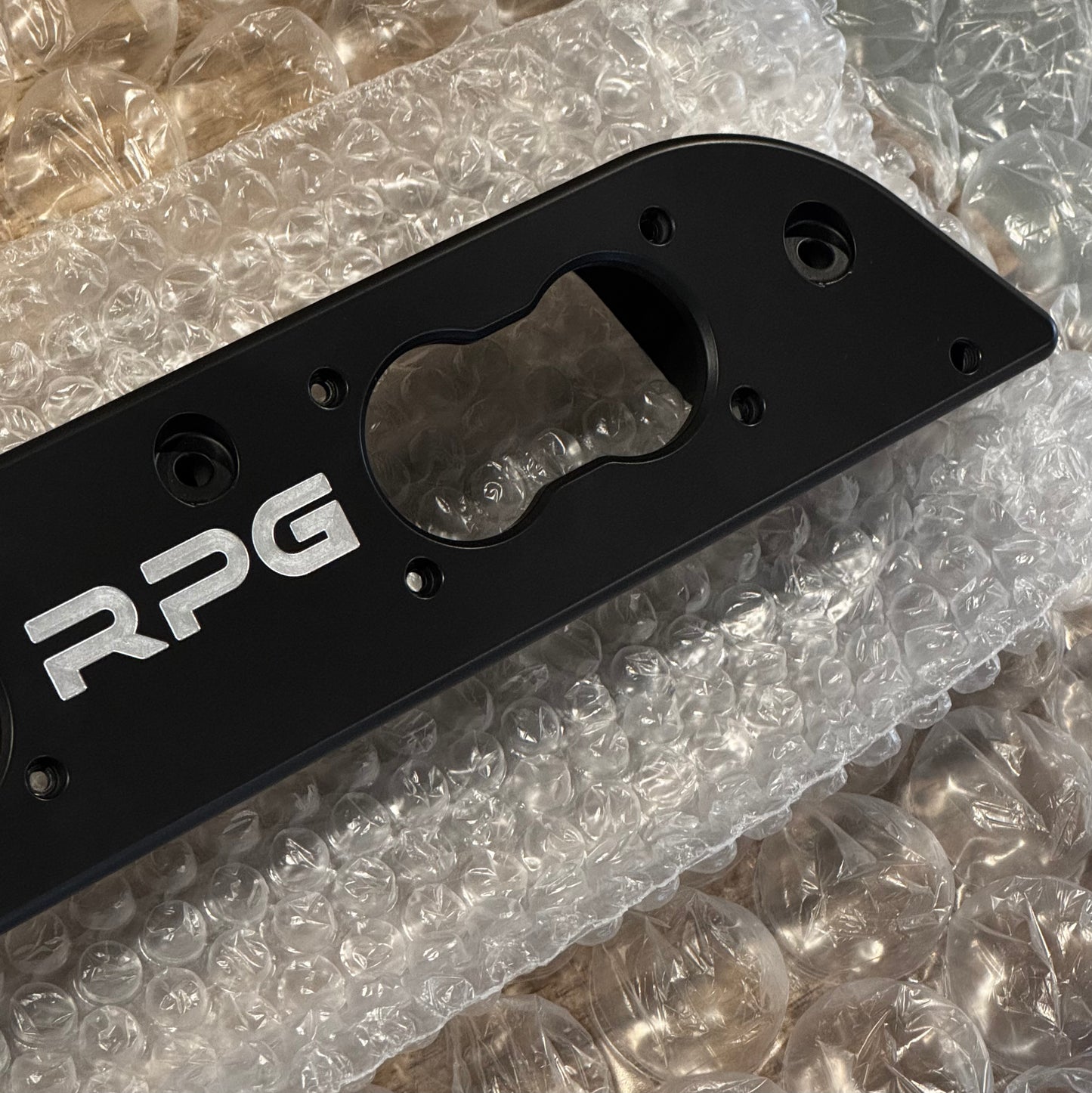

• CNC Mill Engraved
• Fits 2021+ Raptor, 2021+ F150, 2017+ Super Duty (with Camera)

Important Note: We include the correct harness to wire in the three brake light LED's. These are the lED's that illuminate when the brake pedal is pressed.

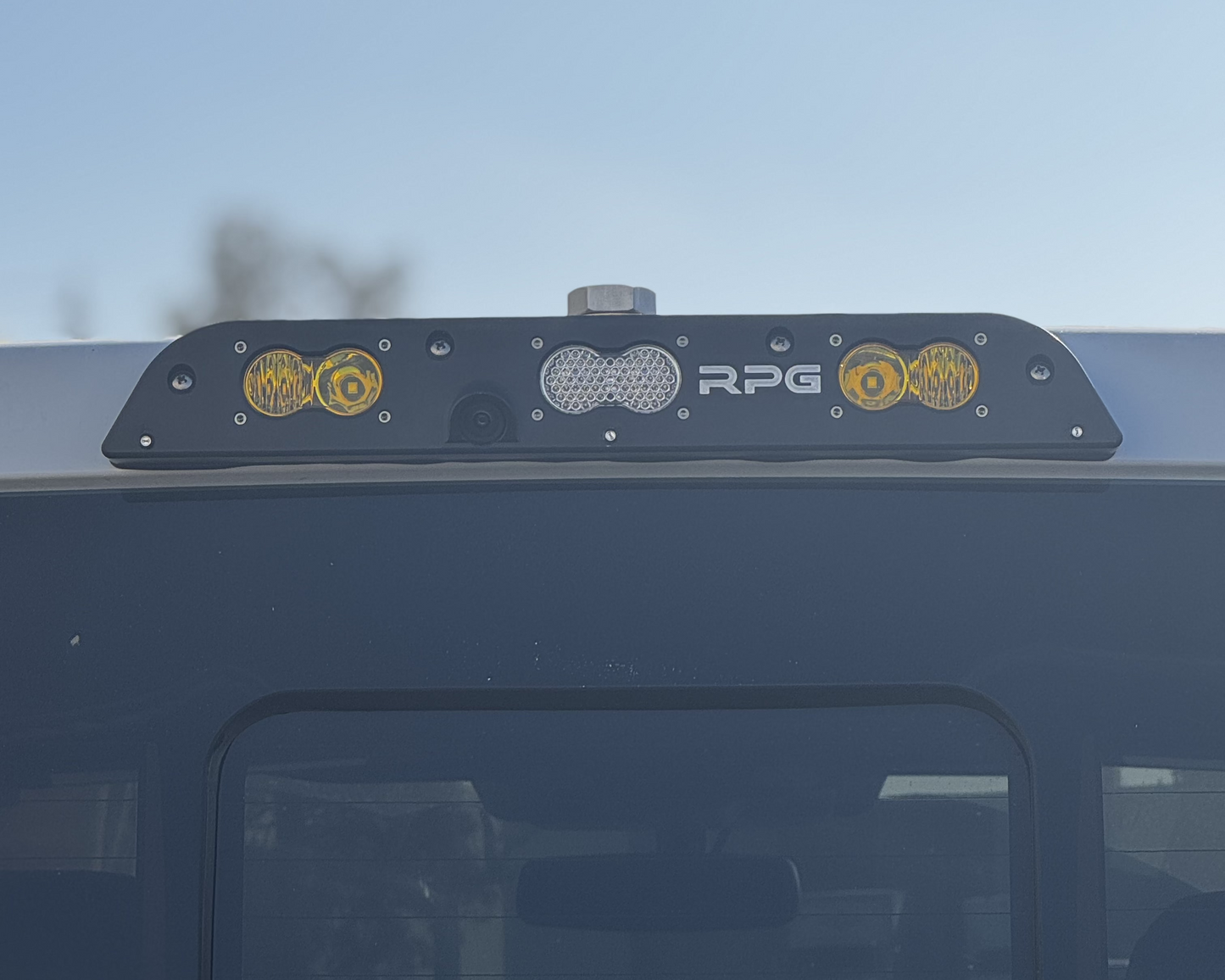

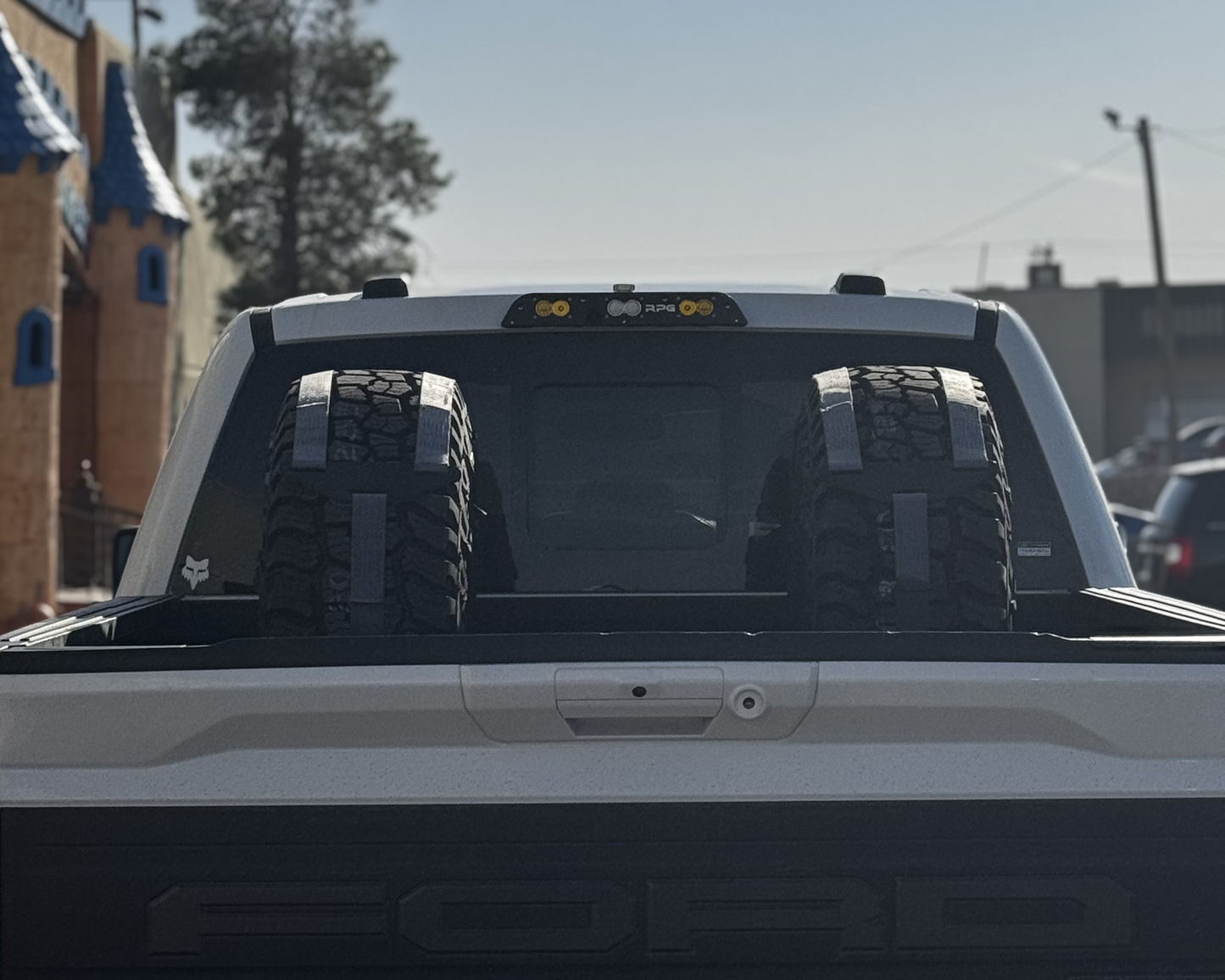

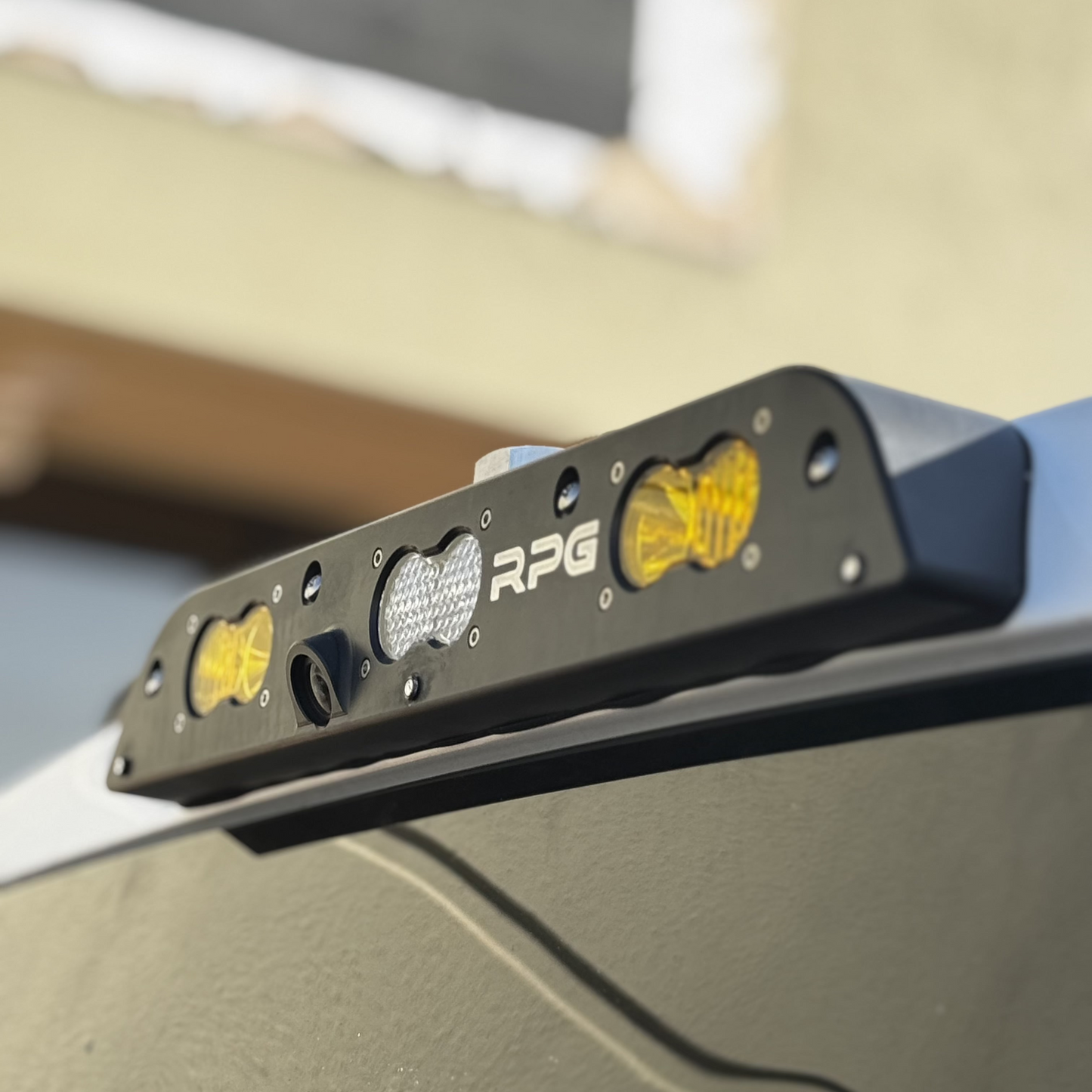

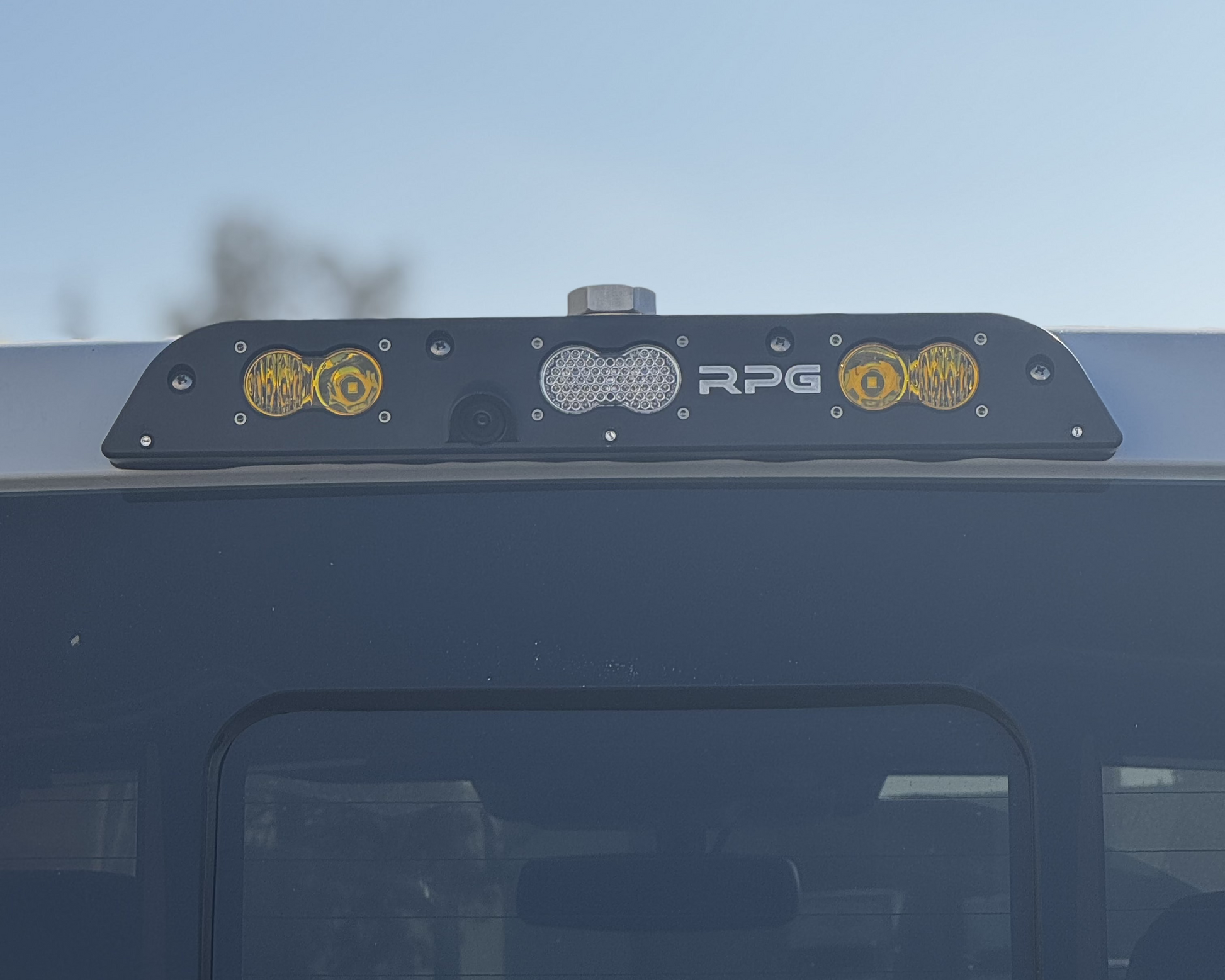

If you’re looking or needing to add chase lights to the rear of your Raptor, a 3rd Brake Light is the perfect option. Using factory mounting holes, the brake light will not require drilling into the cab of the truck. Simply remove the factory brake light and bolt your brand new brake light in. The brake light will include LED brake lights and an NMO mount with 17ft of cable from our friends at PCI Race Radios.

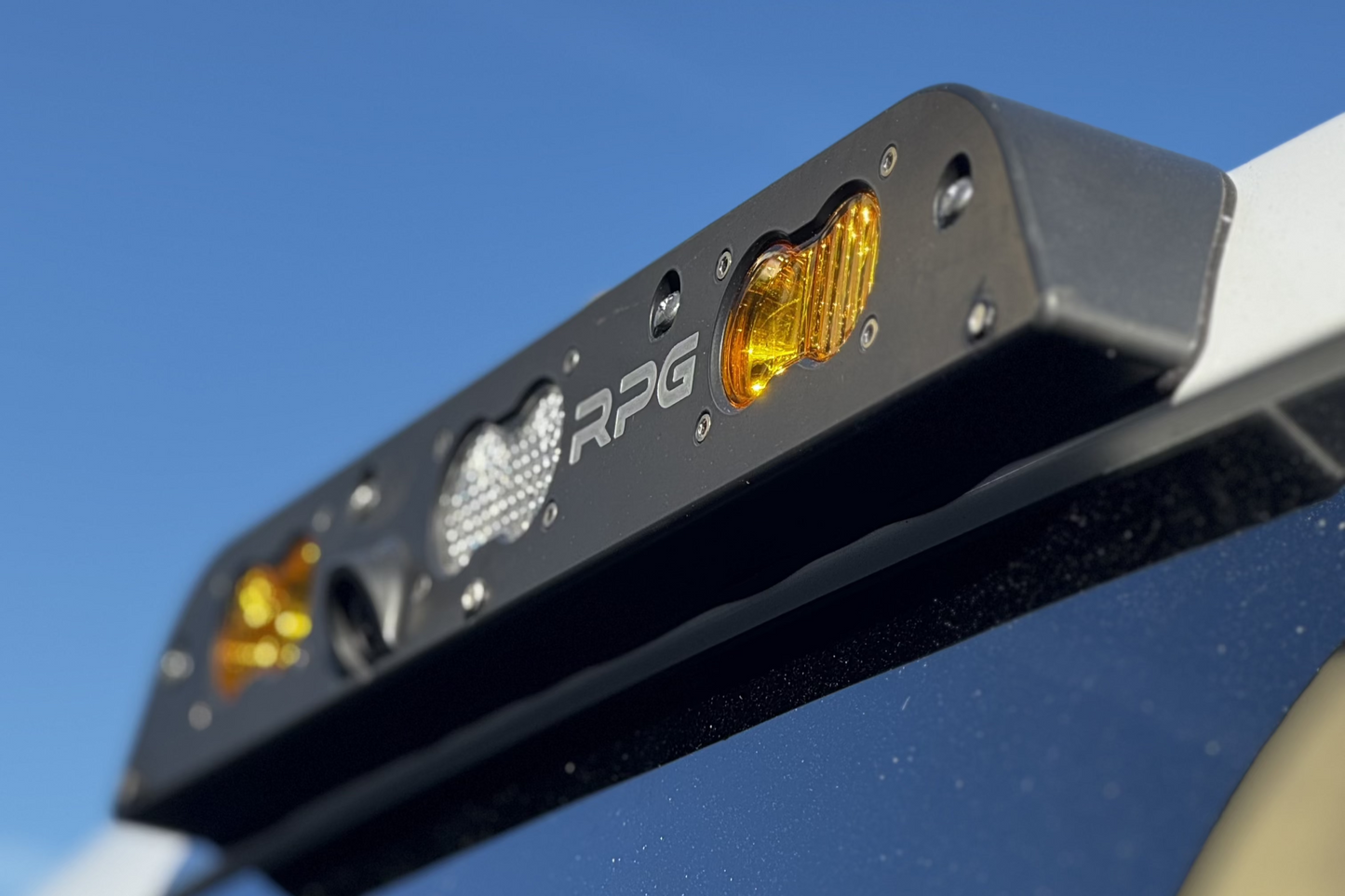

The Baja Designs S2 option for both the Pro and Sport series lights will be standard with (2) Wide Cornering Amber and (1) Clear Work/Scene. If you are looking to use different lenses, those can be easily swapped if purchased separately from us.

These brake light housings will be finished in a semi-gloss black cerakote.

Wiring Harness Options

All wiring harnesses are cut to length and pre-terminated with weatherpack connectors and wrapped in soft loom for easy installation in your truck. The factory integration for the marker lights and cargo light uses the factory connector and does not require any cutting or soldering.

Basic Harness

This harness provides integration of the 3 marker/brake light LED's with factory wiring harness as well as connecting the center light to the cargo light circuit. Two additional circuits are provided to connect the outer lights to the factory upfitter switches in the passenger kick panel.

Reverse Light Harness

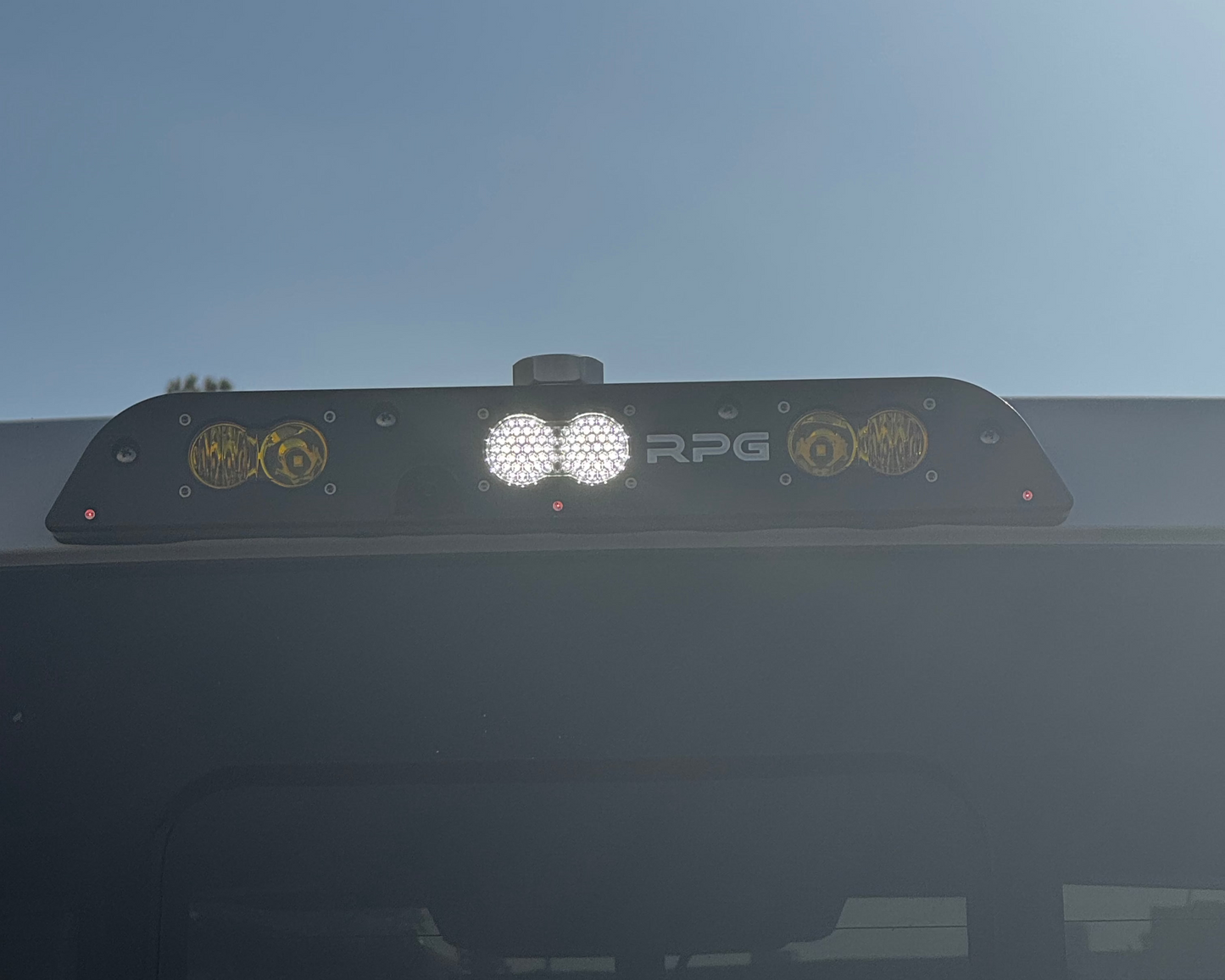

This harness has all the features of the basic harness, but also connects the center light to the brake light circuit so that it comes on automatically when the truck is placed in reverse.

Stop/Tail/Turn Harness

This harness includes a stop/tail/turn controller to integrate the outer to lights with the factory brake/turn signals. It includes inputs for connecting to your aux switches for:

• Master power to turn the system on/off
• Strobe Function
• Strobe pattern change (momentary switch to be optionally mounted in the dash)
• Constant on override to disable the turn/brake integration
