Morimoto Big Banger LED Pod
Morimoto Big Banger LED Pod
**Pods sold individually**
DESCRIPTION
FEATURES & BENEFITS

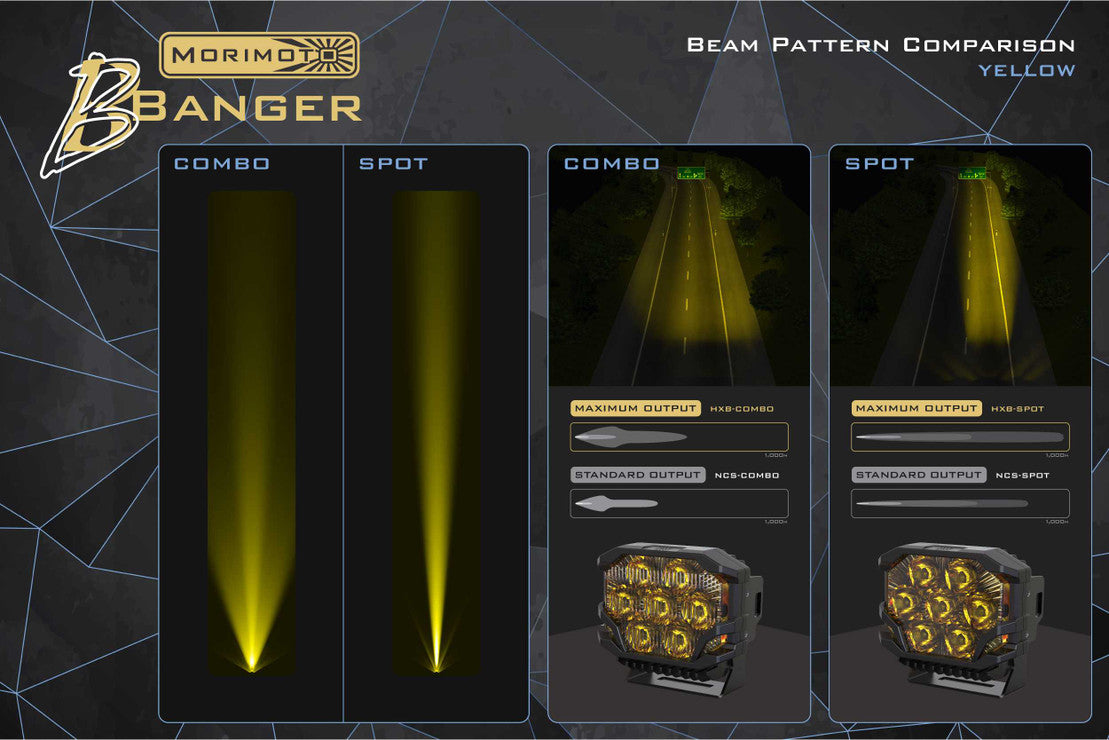

- Powerful Illumination: HXB Combo Beam for exceptional off-road lighting.
- Maximized Brightness: Osram LEDs for high-performance light output.
- Rugged and Weatherproof: Built to endure with copper DTP PCB and IP69K protection.
- Customizable Setup: Choose beam patterns, colors, and link pods for a tailored light bar.
- Safety First: HXB Combo Beam ensures a safe and comfortable off-road experience.
WHAT’S INCLUDED
-
LED Pod: 1x Morimoto BigBanger HXB Combo (Sold Individually)
-
Bracket: 1x Universal U-Shape Mount
-
Hardware: Complete pack (Stainless Steel)
-
Optional Wiring: 1x Morimoto Switched Relay Harness or Deutsch DT Pigtail
WARRANTY INFORMATION
-
Note: These specifications are per pod / each!
-
Intensity (White): 210,000 Cd (2,100 lux @ 10m)
-
Intensity (Yellow): 158,000 Cd (1,580 lux @ 10m)
-
Input Voltage: 9-18V DC
-
Current (@ 13.5V DC): 5.55A (Stabilized), 8.15A (Startup), 2.2A (Backlight), 600mA (Dim Backlight)
-
Peak Luminosity (raw): 7,000lm
-
Dimensions: 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D
-
Color: 2700K (Yellow) or 5700K (White)
-
Light Source: 7x Osram HX Boost (Output), 12x CREE XP-E2 PC Amber (Backlight)
-
Input: Integrated Deutsch DT 4-Pin
-
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
