Gen 3 Ford Raptor Rear Frame Reinforcement Package

The Ultimate Solution for Serious Off-Road Strength

If you push your Gen 3 Ford Raptor the way it was meant to be driven, the factory frame eventually becomes the limiting factor. High-speed desert runs, whoops, hard landings, oversized shocks, and aggressive suspension setups place tremendous stress on the OEM rear frame rails and suspension pockets. Over time, this can lead to bent frame rails, distorted rear pockets, and suspension alignment issues.

Our Gen 3 Raptor Rear Frame Reinforcement Package is designed to eliminate these weak points before they become expensive problems. Manufactured entirely from premium 4130 chromoly steel, this complete reinforcement system dramatically increases frame rigidity, strengthens critical suspension mounting areas, and helps ensure your suspension performs exactly as intended—even under the harshest off-road conditions.

Whether you're building a prerunner, weekend desert truck, overland rig, or race-inspired Raptor, this kit provides the confidence to drive harder without worrying about the factory frame becoming the weak link.

Why You Need This Kit

The factory Gen 3 Raptor frame incorporates engineered crumple zones designed for collision safety. While effective on the street, these areas become a liability when subjected to repeated high-impact off-road abuse.

Under severe suspension loads, the OEM frame rails can begin to flex or bend immediately behind the rear suspension mounting area. At the same time, the factory rear suspension pockets can deform and the slotted alignment holes can shift, causing unwanted suspension movement and alignment changes.

This package addresses each of these common failure points by reinforcing the frame where it matters most, creating a significantly stronger foundation for your suspension system.

What's Included

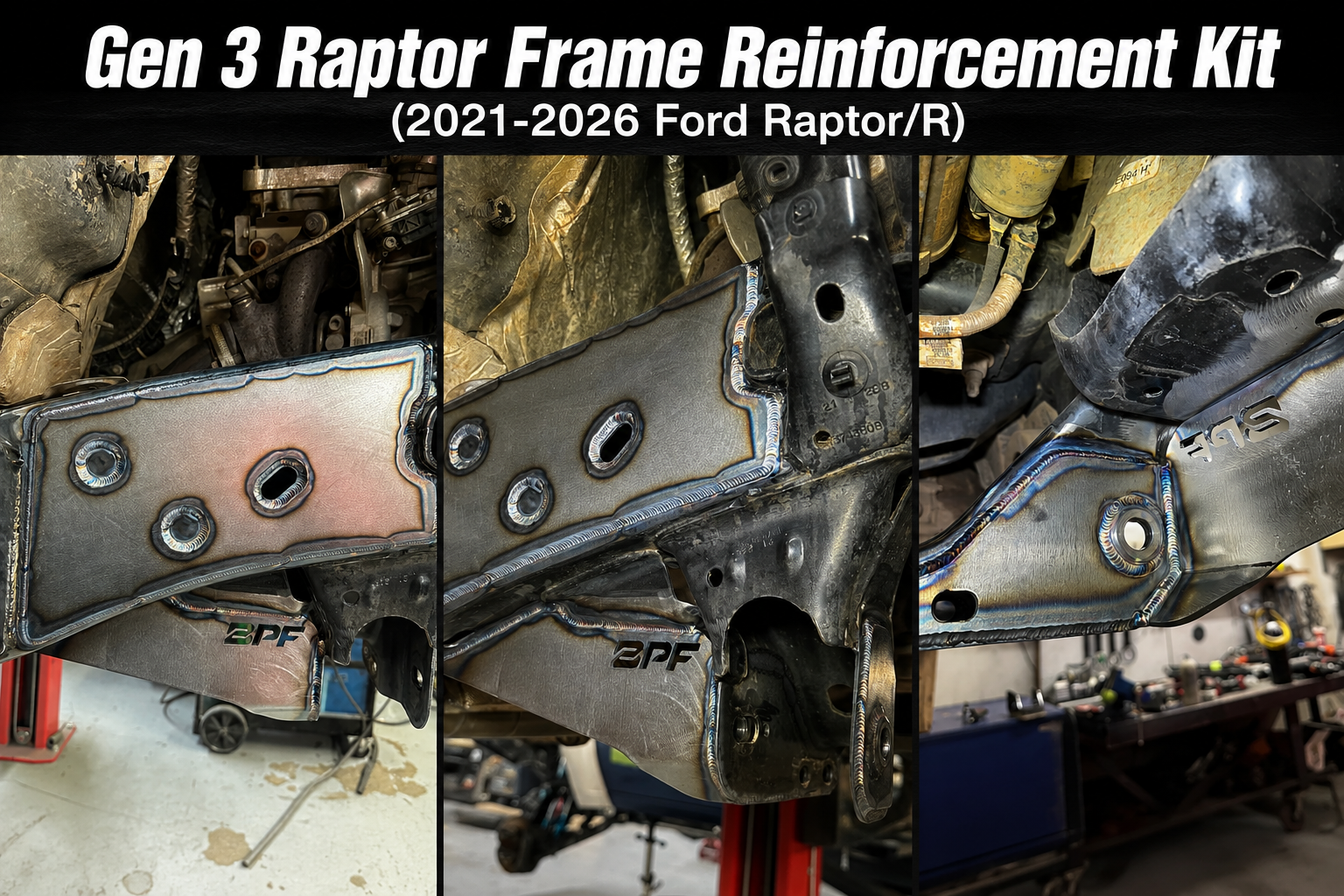

Gen 3 Raptor Frame Plate Kit

The Frame Plate Kit reinforces one of the most common failure points on the Gen 3 Raptor frame by doubling the thickness of the frame rails in critical load-bearing areas.

By boxing and strengthening this section of the chassis, the plates dramatically improve resistance to bending and flex while providing a much stronger mounting surface for aftermarket suspension components.

Features:

• Precision-cut 4130 chromoly construction

• Reinforces the factory crumple zone behind the suspension mounts

• Doubles frame rail thickness in critical areas

• Significantly increases frame rigidity

• Creates a stronger mounting surface for aftermarket bypass shock mounts

• Designed for extreme off-road use

Massive Rear Pocket Brace

Our Massive Rear Pocket Brace is the largest and strongest rear pocket reinforcement available for the Gen 3 Raptor.

During aggressive off-road driving, the factory rear pockets are subjected to enormous forward and rearward loads that can cause them to bend backward. This brace ties both frame rails together while reinforcing the suspension pocket, dramatically increasing structural integrity.

In addition to strengthening the suspension mounting area, the brace adds valuable lateral support across the rear frame rails to reduce unwanted chassis flex.

Features:

• Largest rear pocket brace on the market

• Heavy-duty 4130 chromoly construction

• Prevents rear suspension pockets from bending backward

• Adds significant lateral reinforcement across the frame rails

• Designed for high-speed off-road abuse

• Engineered for maximum rigidity

Note:

• Does not work with the OEM rear sway bar.

• Requires our Rear Pocket Lockout Kit (included in this package).

Rear Pocket Lockout Kit

The factory rear suspension pockets use slotted alignment holes that can allow suspension movement after repeated hard impacts.

Our Rear Pocket Lockout Kit permanently eliminates this weakness by locking the suspension mounting location into the proper centered position while reinforcing the surrounding structure.

The included weld washers and properly shanked Grade 8 hardware provide exceptional shear strength while helping maintain consistent suspension geometry even after severe abuse.

This kit is also required for installation of our Massive Rear Pocket Brace.

Features:

• Eliminates factory slotted alignment holes

• Prevents suspension alignment from shifting

• Precision 4130 chromoly construction

• Heavy-duty weld washers for superior bolt shear resistance

• Includes properly shanked Grade 8 hardware

• Adds significant strength to rear suspension pockets

• Compatible with our Massive Rear Pocket Brace

Built for Serious Off-Road Performance

Whether you're running long-travel suspension, aftermarket bypass shocks, jumping the truck, racing through whoops, or simply demanding the most from your Gen 3 Raptor, this reinforcement package provides the structural strength your chassis needs.

By reinforcing the frame rails, eliminating suspension pocket movement, and tying the rear frame together with the largest pocket brace available, this system transforms the rear chassis into a significantly stronger platform capable of handling extreme punishment.

Benefits

• Reinforces the Gen 3 Raptor's most common frame failure points

• Doubles frame rail thickness in critical stress areas

• Prevents rear suspension pockets from bending

• Eliminates alignment movement caused by factory slotted pockets

• Adds substantial lateral chassis rigidity

• Creates a stronger foundation for aftermarket suspension systems

• Provides an improved mounting surface for bypass shock brackets

• Manufactured from premium 4130 chromoly steel

• Designed specifically for aggressive off-road use

Compatibility

• Ford F-150 Raptor Gen 3

• Designed for extreme off-road and performance suspension applications

Important Notes

• Welding is required.

• OEM rear sway bar is not compatible with the Massive Rear Pocket Brace.

• Rear Pocket Lockout Kit is included and required for installation of the Rear Pocket Brace.

• Professional installation by a qualified fabricator is highly recommended.
