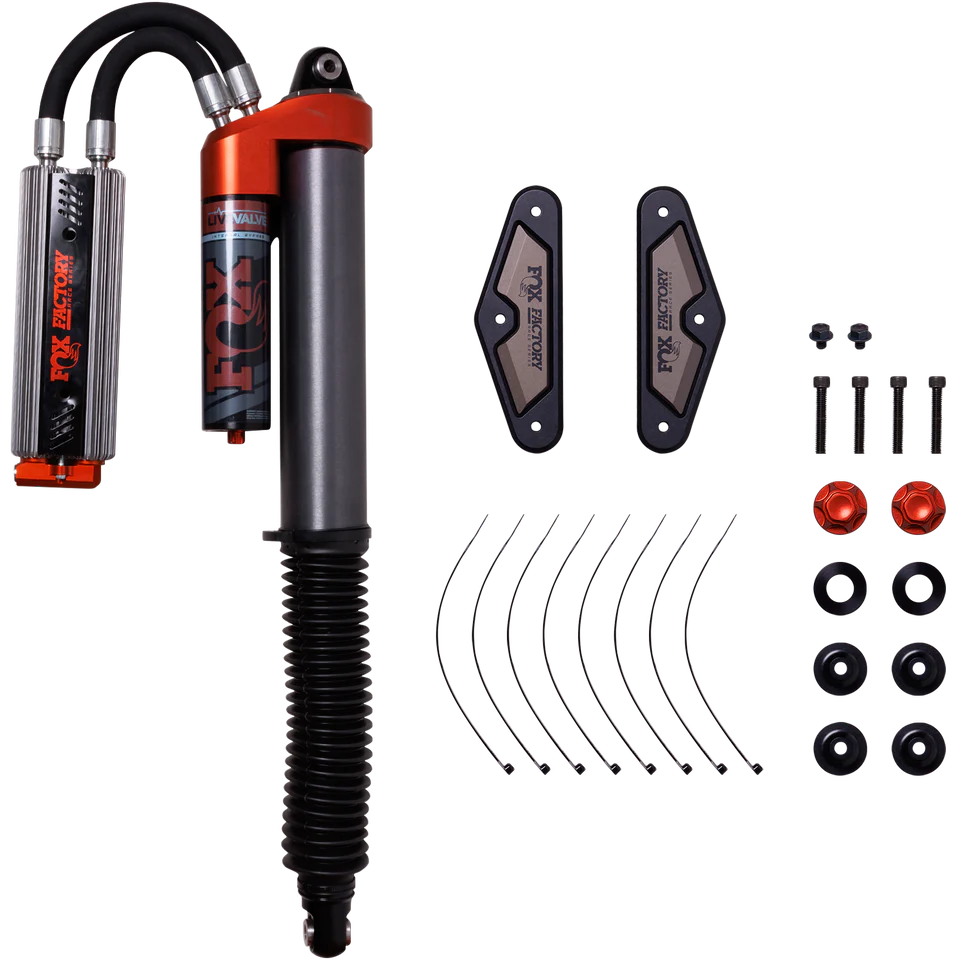

GEN 3 RAPTOR FACTORY RACE SERIES 3.2 LIVE VALVE INTERNAL BYPASS FULL SET
GEN 3 RAPTOR FACTORY RACE SERIES 3.2 LIVE VALVE INTERNAL BYPASS FULL SET
Couldn't load pickup availability
These are a direct bolt on shock upgrade front and rear, that are fully adjustable. Completely plug and play with all OEM electronics, so that means all your drive modes work with no funky codes being thrown. Being a true Gen 3 shock; these shocks are valved directly from Fox for your Gen 3 Raptor. As a true 3.2" shock, these shock bodies can withstand up to 3000 PSI, ready for anything you throw at em'! One extremely important thing to note, is that these only fit the single live valve trucks, and will not fit the dual live valve equipped Raptors. These shocks allow for 0.5" of lift up front with the 37" tire package, ensuring your truck rides smooth, and geometry isn't heavily affected; therefore no issues with CV's down the road. If you have any questions on these shocks, please don't hesitate to reply on this thread or email our team at Tspbuildz@gmail.com
Front Coilovers Specs
3.2” shock bodies can withstand internal pressures over 3,000 psi.
Position- and velocity-sensitive damping maximize control through any terrain.
Patented, Internal Bypass is specifically tuned to accommodate a lifted ride height.
Coil-overs utilize 1” hard chromed steel shafts and an optimized spring rate.
Recirculating dual hoses, rear ECS2 coolers, and front finned reservoirs increase shock cooling.
Redesigned shock mounting improves clearance under extreme suspension travel.
Guaranteed to fit all 3rd generation single valve Raptors.
| SERIES | Factory Race |
| TRAVEL | 6.85 |
| BODY | 3.2" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel |
| BODY PLATING | Hard-anodized for a durable finish awd |
| VALVING | Application-specific valving to maximize performance |
| BEARINGS | PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth |
| EXTENDED LENGTH | 29.21 |
| COMPRESSED LENGTH | 22.36 |
| TOP MOUNT | OEM |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | 0.5" lift achievable with 37" Tire package. Does not fit Dual Valve Equipped Trucks. |
Rear Bypass Specs
3.2” shock bodies can withstand internal pressures over 3,000 psi.
Position- and velocity-sensitive damping maximize control through any terrain.
Patented, Internal Bypass is specifically tuned to accommodate a lifted ride height.
Coil-overs utilize 1” hard chromed steel shafts and an optimized spring rate.
Recirculating dual hoses, rear ECS2 coolers, and front finned reservoirs increase shock cooling.
Redesigned shock mounting improves clearance under extreme suspension travel.
Guaranteed to fit all 3rd generation single valve Raptors.
| SERIES | Factory Race |
| TRAVEL | 12.26 |
| BODY | 3.2" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel |
| BODY PLATING | Hard-anodized for a durable finish awd |
| VALVING | Application-specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions |
| BEARINGS | PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth |
| EXTENDED LENGTH | 32.25 |
| COMPRESSED LENGTH | 19.99 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | Does not fit Dual Valve Equipped Trucks |
