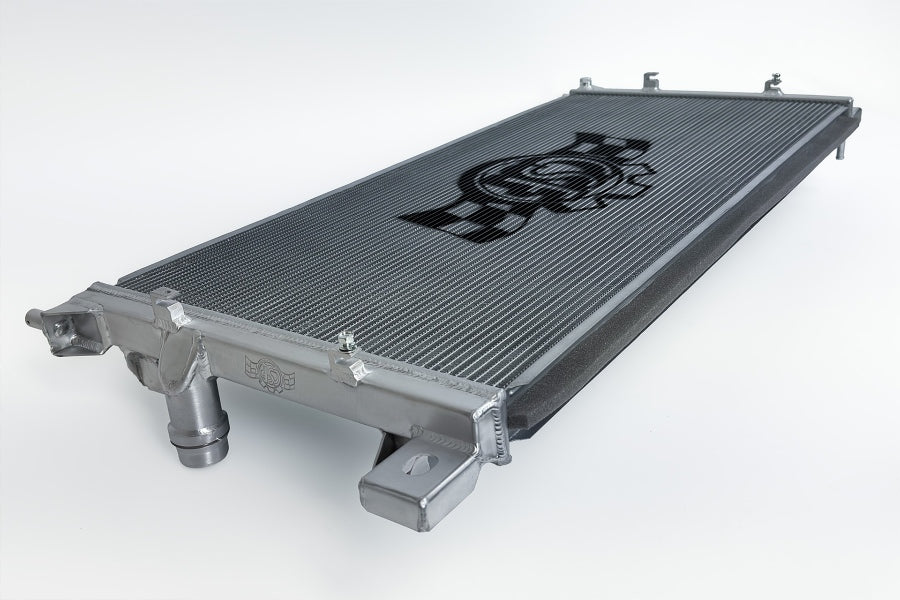

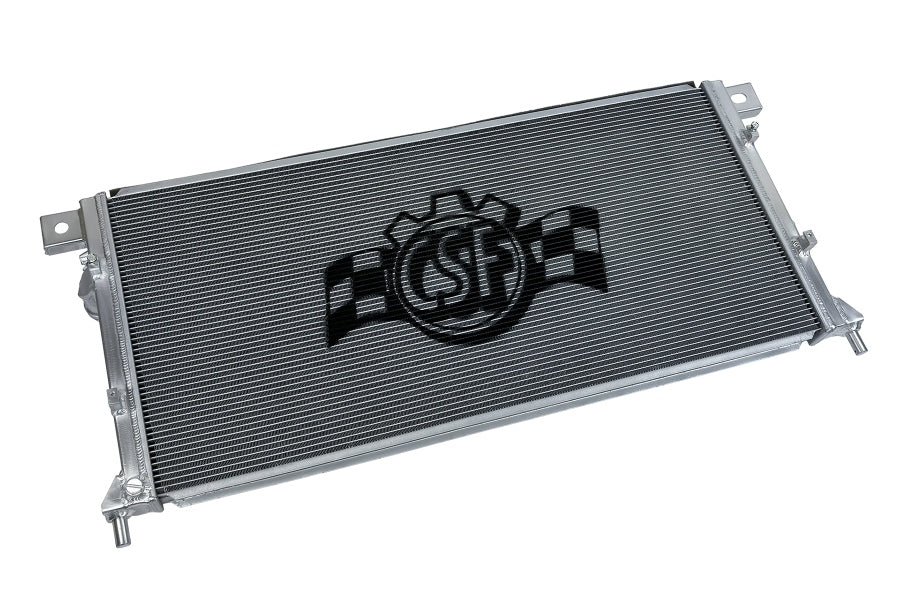

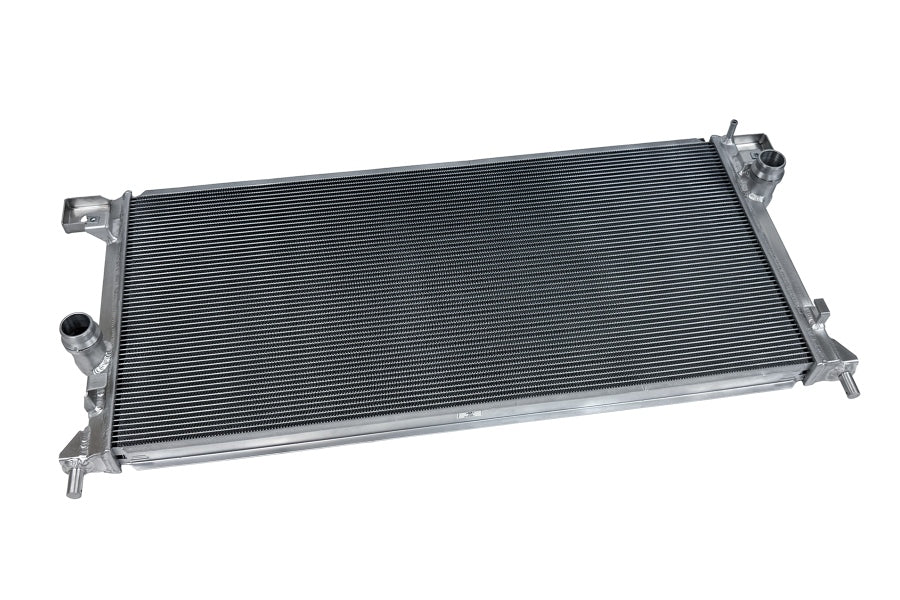

CSF 2021+ Ford Bronco / 2024+ Ranger Radiator Upgrade

The CSF Heavy-Duty Radiator for the 2021+ Ford Bronco and 2024+ Ranger is engineered to provide superior cooling performance and durability. Utilizing advanced design features like CSF's B-Tube Technology and ultra-efficient multi-louvered fins, this radiator offers exceptional heat dissipation, making it ideal for demanding off-road and high-performance driving conditions. Constructed from 100% TIG-welded aluminum with CNC machined brackets, it ensures a precise fit and long-lasting reliability.

Application List

• 2021+ Ford Bronco (2.3L & 2.7L EcoBoost)
• 2024+ Ford Ranger (2.3L & 2.7L EcoBoost)
• 2024+ Ford Ranger Raptor (3.0L EcoBoost)

• 2-Row, 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

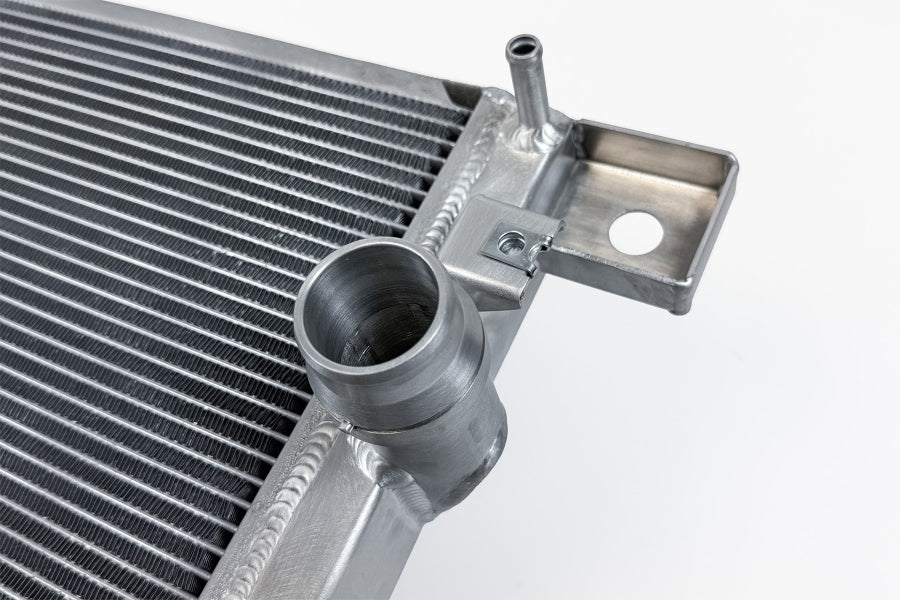

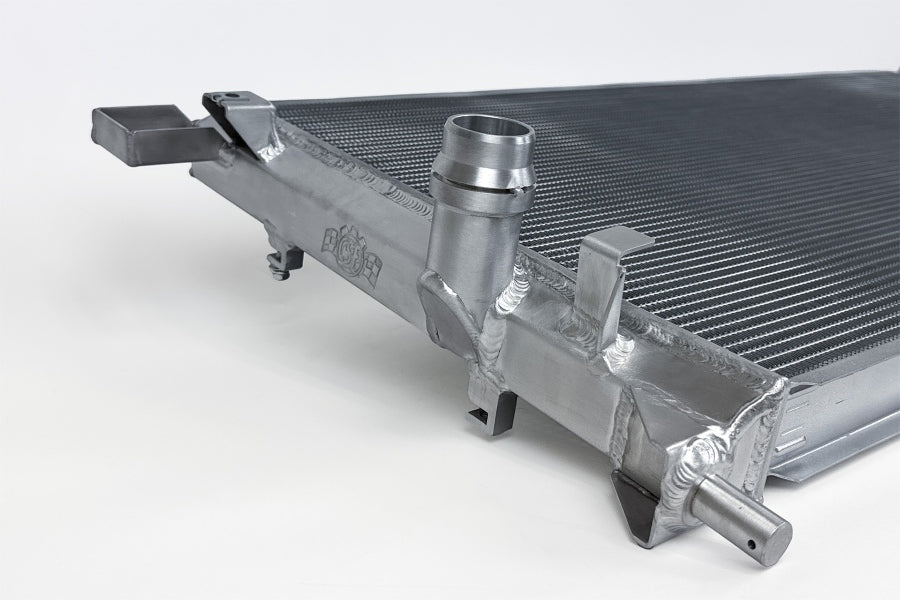

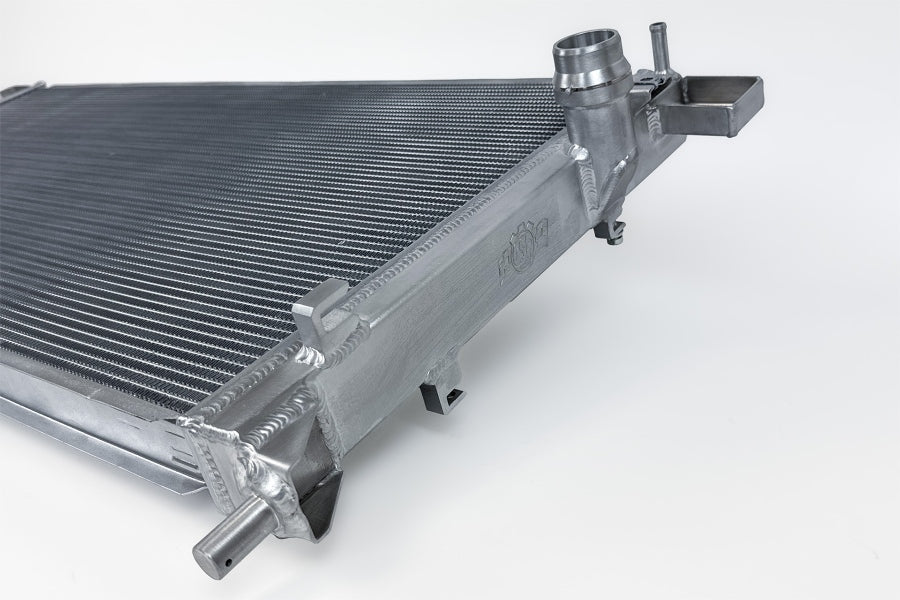

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Hand Brushed Satin Finish
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

CSF has a long and successful track record with off-road cooling systems. CSF produces some of the most popular and widely used performance radiators for a variety of off-road applications. In addition, this new Bronco/Ranger Radiator features CSF’s latest Ultra-Efficient 5mm fin cooling technology. The new fin technology increases the heat transfer area over a traditional radiator by 20-25%.

The Bronco and Ranger’s cooling system is fine for some drivers, but those who are pushing the limits of these rigs will put a strain on the factory system. However, it’s not just those with added power and hardcore off-roaders that can benefit from an upgraded cooling system. Many overlanders, campers, and more casual off-road goers add a lot of weight and drag to their rigs. Accessories like Roof mounted tents, campers, spare tires, fuel cans, and/or towing can put a lot of extra strain on both the engine and cooling system. An upgraded radiator can mean the difference between non-stop action, and having to give your engine a break to recover from overheating or heat soak.
