CAMBURG ENGINEERING 2017-2020 FORD F-150 RAPTOR LOWER CONTROL ARM KIT
CAMBURG ENGINEERING 2017-2020 FORD F-150 RAPTOR LOWER CONTROL ARM KIT

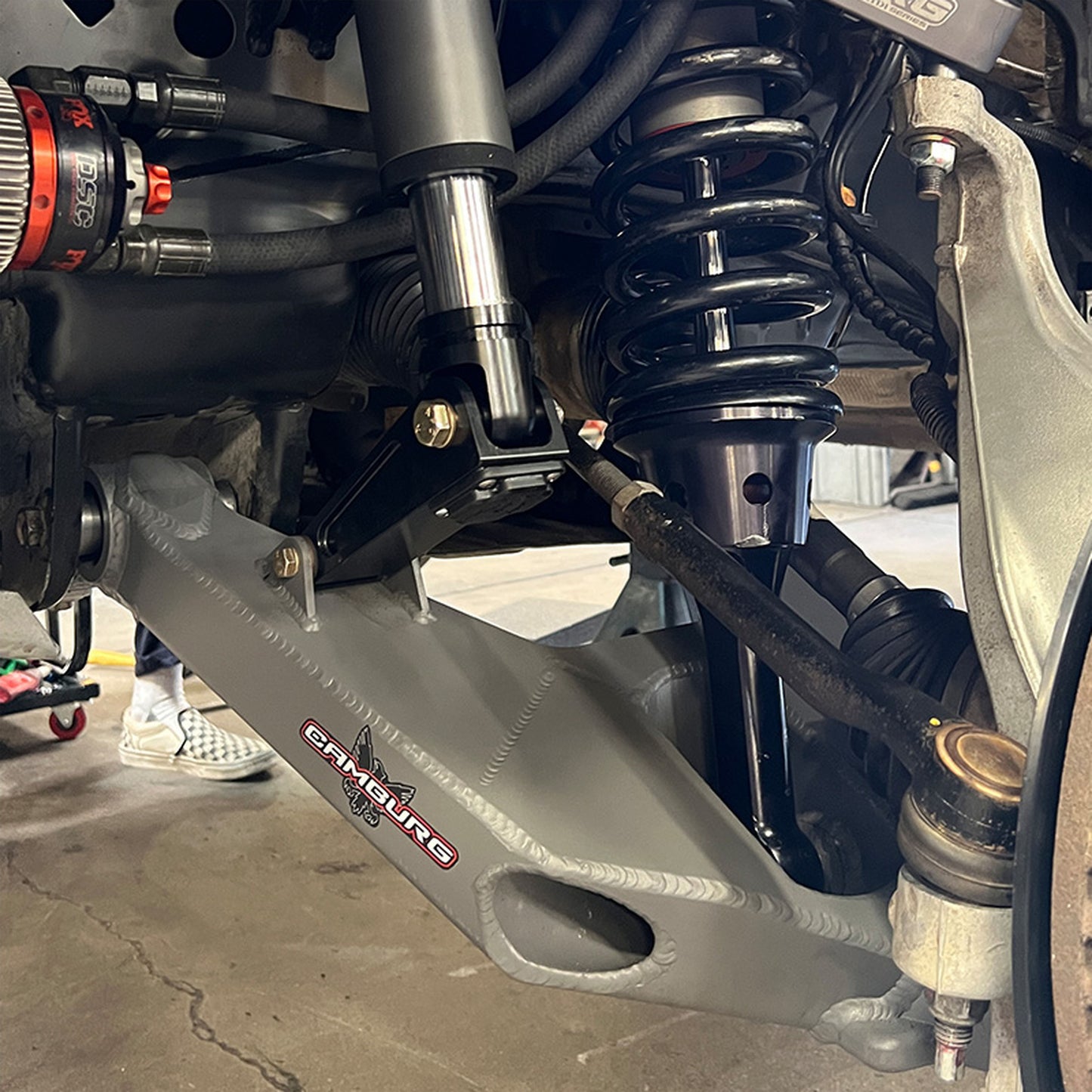

Introducing our NEW performance lower arms for Gen 2 Ford Raptor owners. These stock length arms allow you to use your existing coilovers and upper arms, avoiding the need for fiberglass fenders and extended axles. We've included our optional 2.5 Slapper bump stop system for enhanced bottom out control. The wheelbase is slightly pushed forward, providing improved handling, increased tire clearance, and better suspension performance off-road. These arms are CAD/CAM engineered, significantly stronger than stock arms, and designed for maximum ground clearance. They feature internal gusseting and pivot on FK 1" uniballs at the frame, eliminating binding and flexing under braking. The uniball setup allows for bind-free adjustment and consistent geometry and alignment. Laser cut, CNC formed, MIG welded, and powder coated Camburg gray, these arms come with all necessary hardware for easy installation. Combine them with our KINETIK billet upper control arms, 2.5 Slapper bump stop system, and FOX or King 3.0 coilovers for the ultimate stock width setup. For larger tires, we recommend a zero offset wheel with a maximum backspacing of 5.00". Please note that welding is required to install the bump stop kit, and the factory front sway-bar will be eliminated.
Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.
Technical Details
- May be used with most aftermarket coilovers
- without OEM Wheels
- Requires Wheels with 4.75 (in) - 5 (in) Backspacing
- Cutting and Welding Required
- Eliminates Factory Front Sway Bar
-
AdjustableNo
-
Ball Joint IncludedYes
-
Bushing Material4130 Chromoly
-
ConstructionBoxed
-
Control Arm ColorGray
-
Control Arm Material4130 Chromoly
-
Suspension Grade TypePerformance
-
PositionLowerCamburg includes high-quality hardware for proper and secure installation, with specified original equipment hardware to be reused when necessary.
