Camburg 2017-2020 Ford F-150 Raptor KINETIK Series Long Travel Kits

Camburg 2017-2020 Ford F-150 Raptor KINETIK Series Long Travel Kits

Regular price $5,295.00 USD
Regular price Sale price $5,295.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Overview

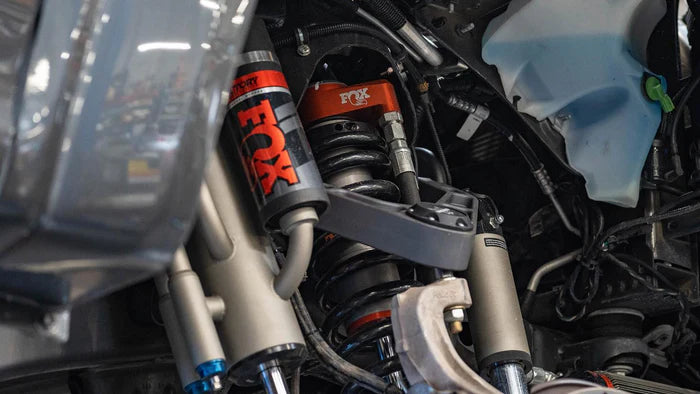

Our Camburg Performance Series long travel kit for the Ford F-150 Raptor bridges the gap between daily driver and race vehicle. We designed this kit with the ability to build up your truck in stages or all at once. Whether you're out exploring the trails in MOAB or wide open down in Baja Mexico, this is the kit that takes your Raptor's suspension to the next level. We've put together the most complete kit out there. Wanting to gain wheel travel, articulation and stability, we went 1.5 in. wider per side and pushed the front wheel position forward 1 in. for increased tire clearance at the firewall.

Important Notes

  • Factory wheels will not work with this kit, you need aftermarket wheels with 4.75-5.00" of backspacing, We recommend wheels with 4.75" backspacing for the most tire clearance.
  • Front wheel position is pushed forward 1" for added tire clearance at firewall to eliminate/minimize rubbing/trimming.
  • Designed to use the OEM coilovers or 3.0 aftermarket coilovers (DID module may be required)
  • Designed to use aftermarket fiberglass front fenders (2-2.5" flare). We recommend Advanced Fiberglass Concepts, Fiberwerx or SDHQ.

Installation

  • Bolt on aluminum skid plates for lower control arms.
  • Optional 3.5 bypass shock and weld-on bypass frame mount.
  • Professional installation recommended. A wheel alignment is required after installation.

Specification

  • Maximum articulation
  • Increased wheel travel
  • Designed for serious offroad use
  • Increased track-width 1.5" per side (3" wider total)
  • Designed for 37" tires.
  • 15% increased wheel travel
  • Grade Type: Performance
  • Hardware Included: Yes
  • Upper Control Arms Included: Yes
  • Control Arms Included: Yes

Available options:

  • Color: Gray, Blue, Gold, Red

Fitment

  • 2017-2020 Ford F-150 Raptor
  • Fitment per Camburg. Verify year, drive type and trim before ordering.
