AdventureDuty Build Package

AdventureDuty Build Package

Regular price $4,935.55 USD
Regular price Sale price $4,935.55 USD
Sale Sold out
Shipping calculated at checkout.

This package was put together in direct correlation with Christian Cormack's 2021 Ford F150 Build shown in the photos. Our complete package is tailored to those who want to improve their overall ride quality and stance. This makes your shopping experience as simple as possible being that all parts from this build, are already pieced together for you. Get your 2021-2024 F150 looking and feeling right with this full package, all in one!

What does the package consist of?

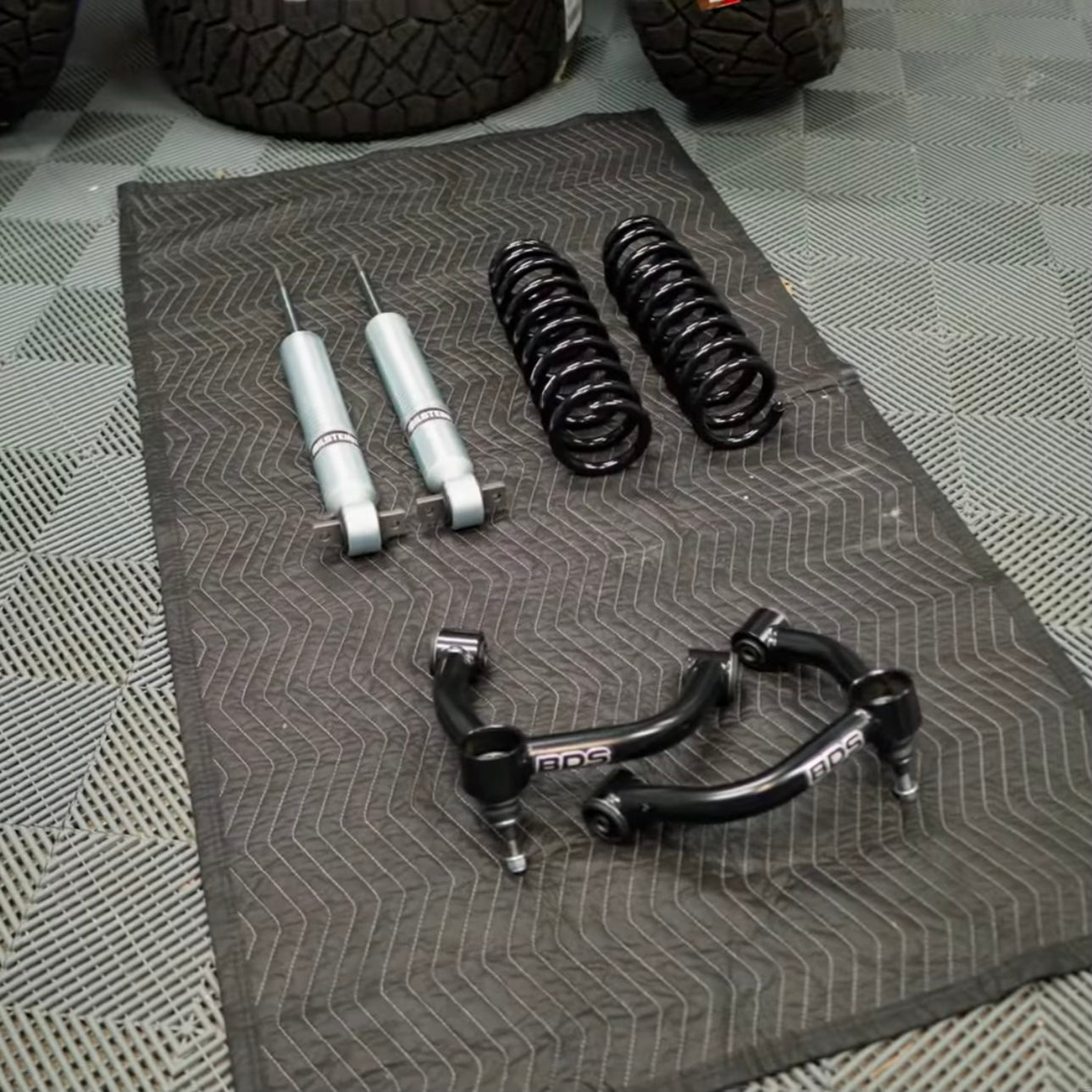

Suspension:

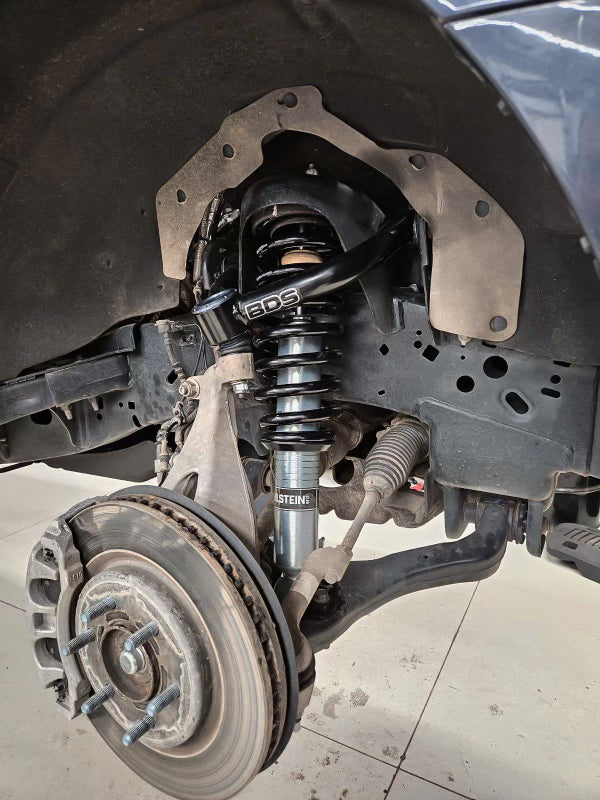

1) Bilstein 6112 Strut & Spring + Rear 5160 Reservoir Shocks Set

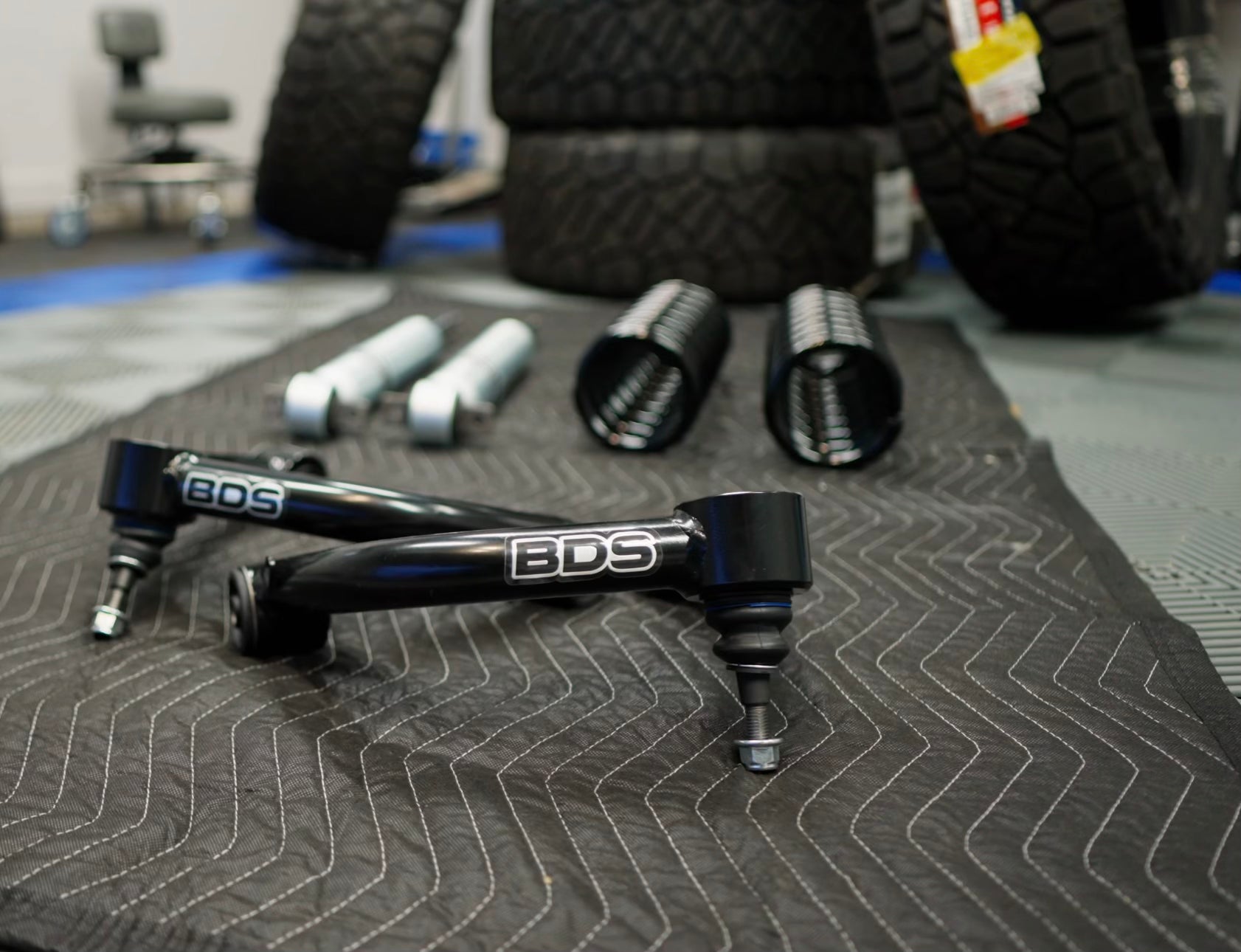

2) BDS Upper Control Arm Kit with the headlight sensor bracket

Stance

1) Bora 1.25" Spacer kit (Set of 4)

Tires:

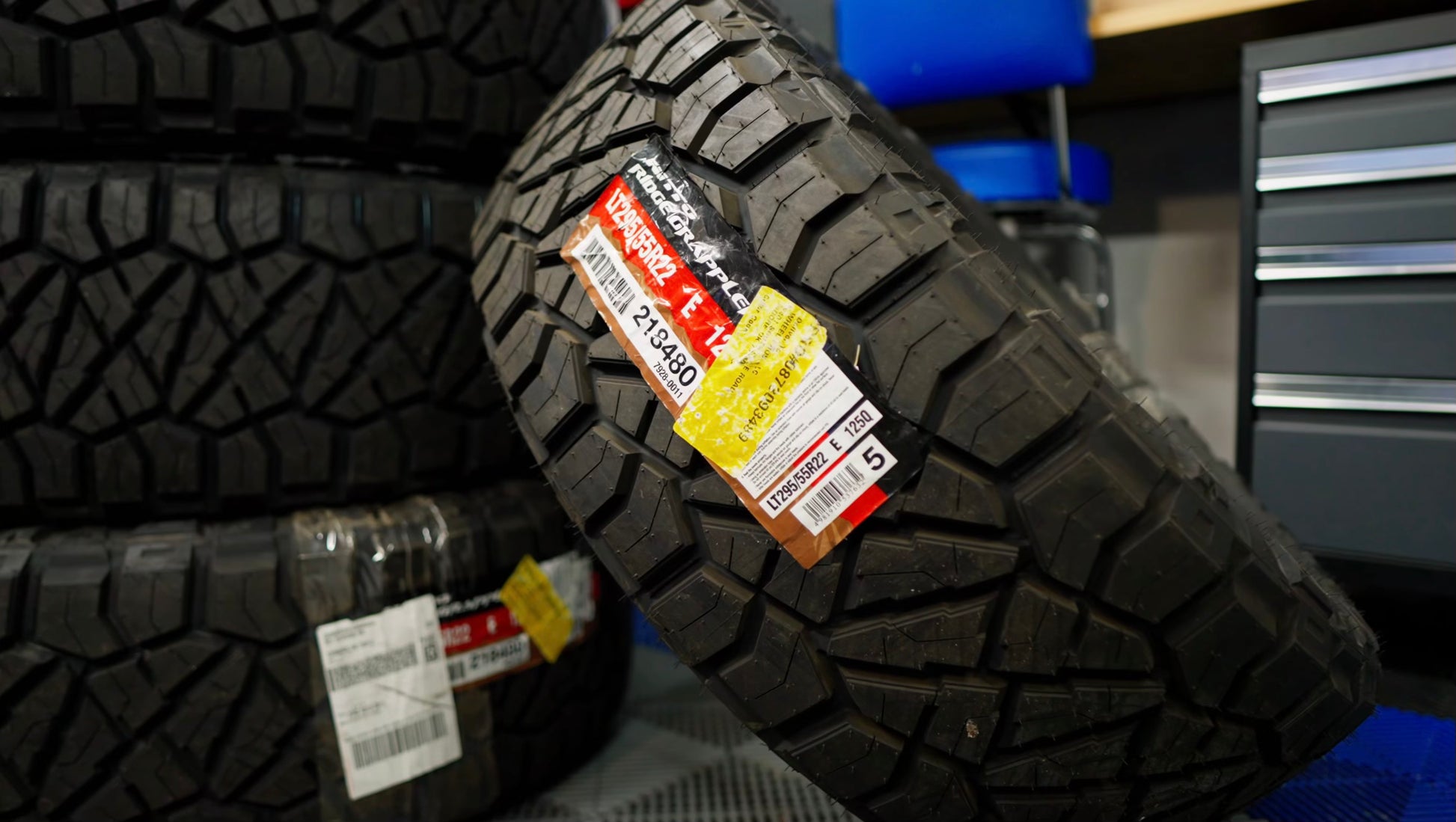

1) Nitto Ridge Grappler Hybrid Tire - LT285/65R20 (Set of 4)

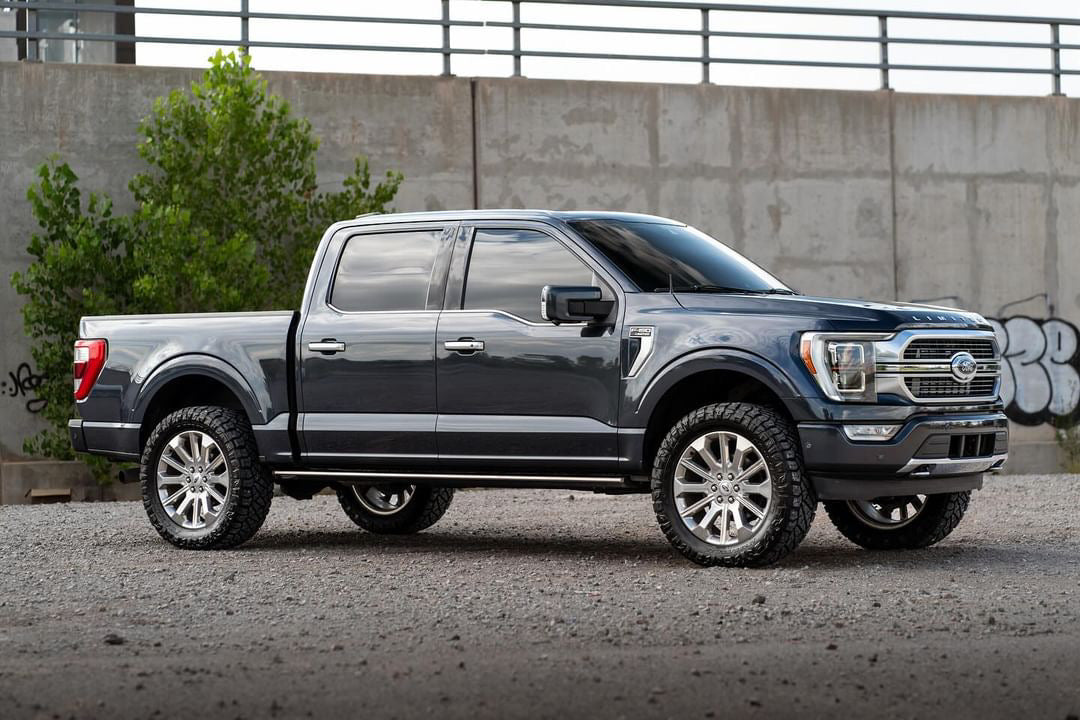

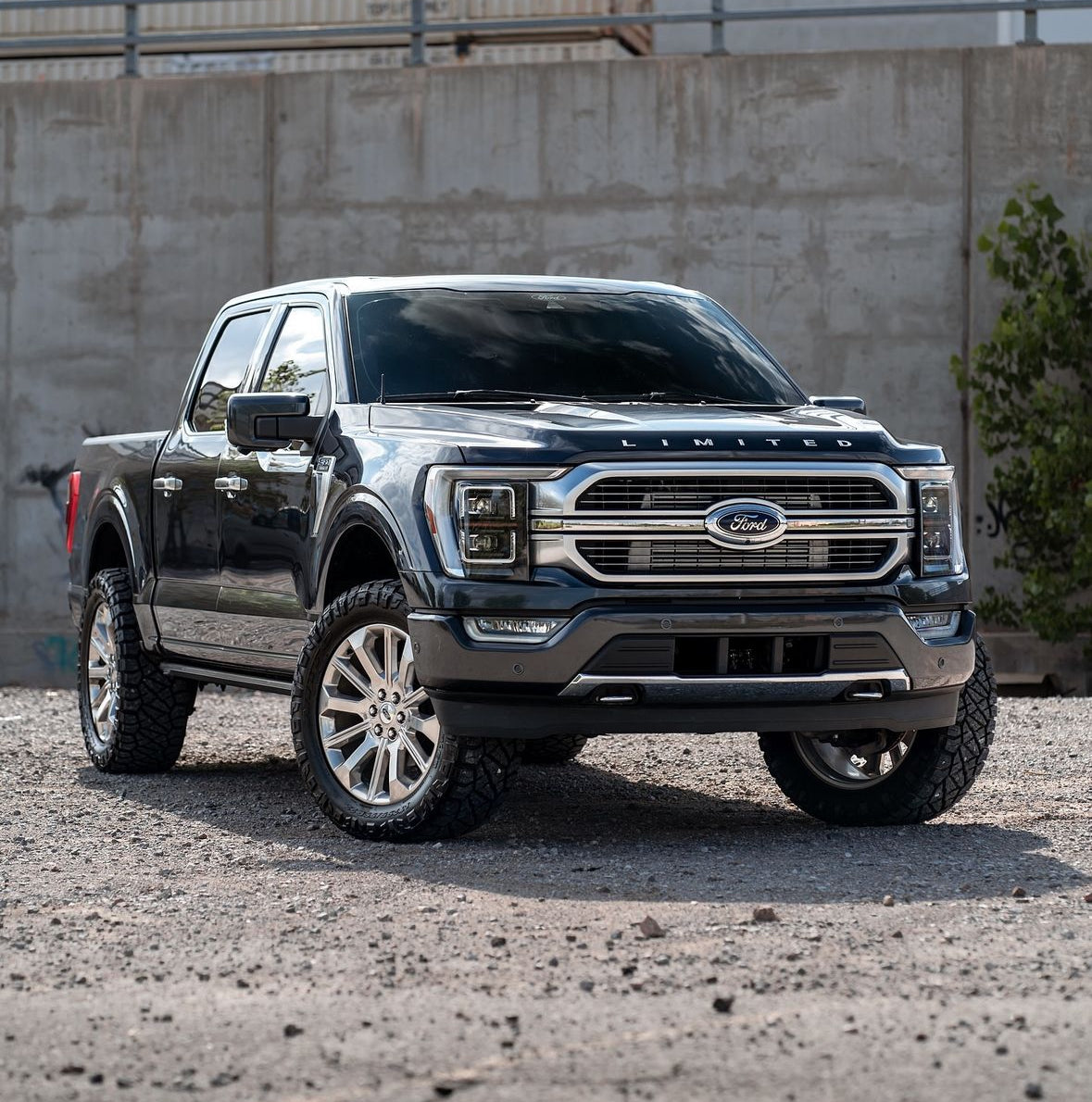

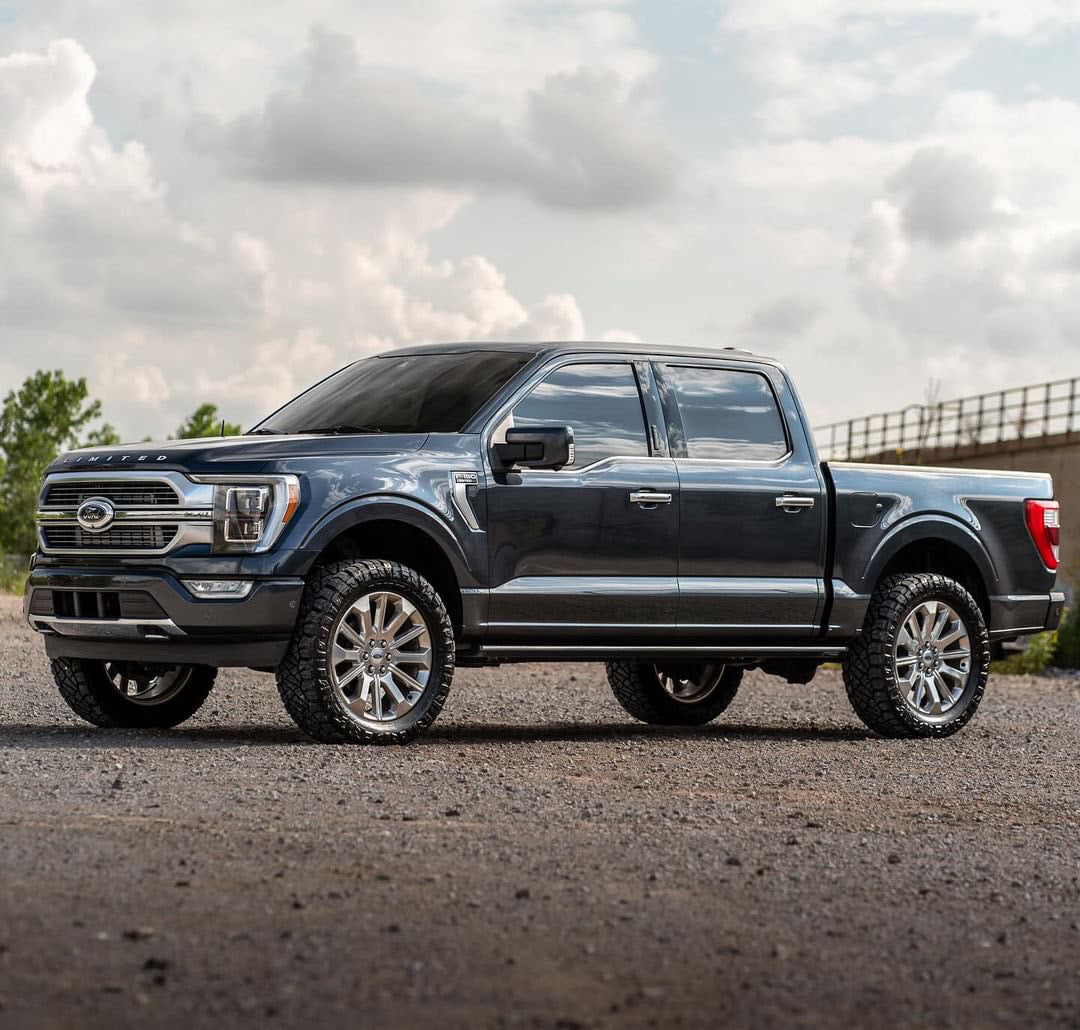

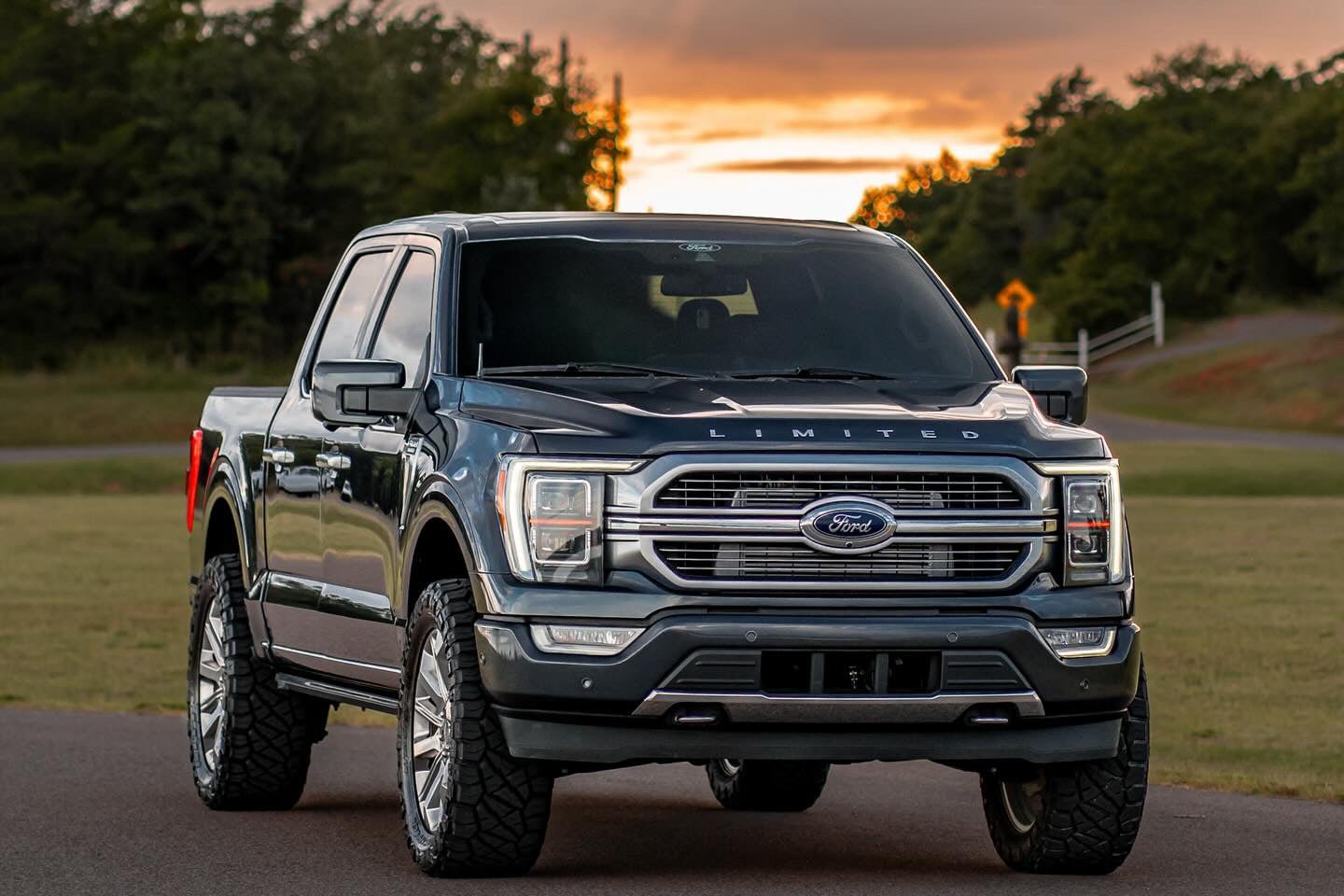

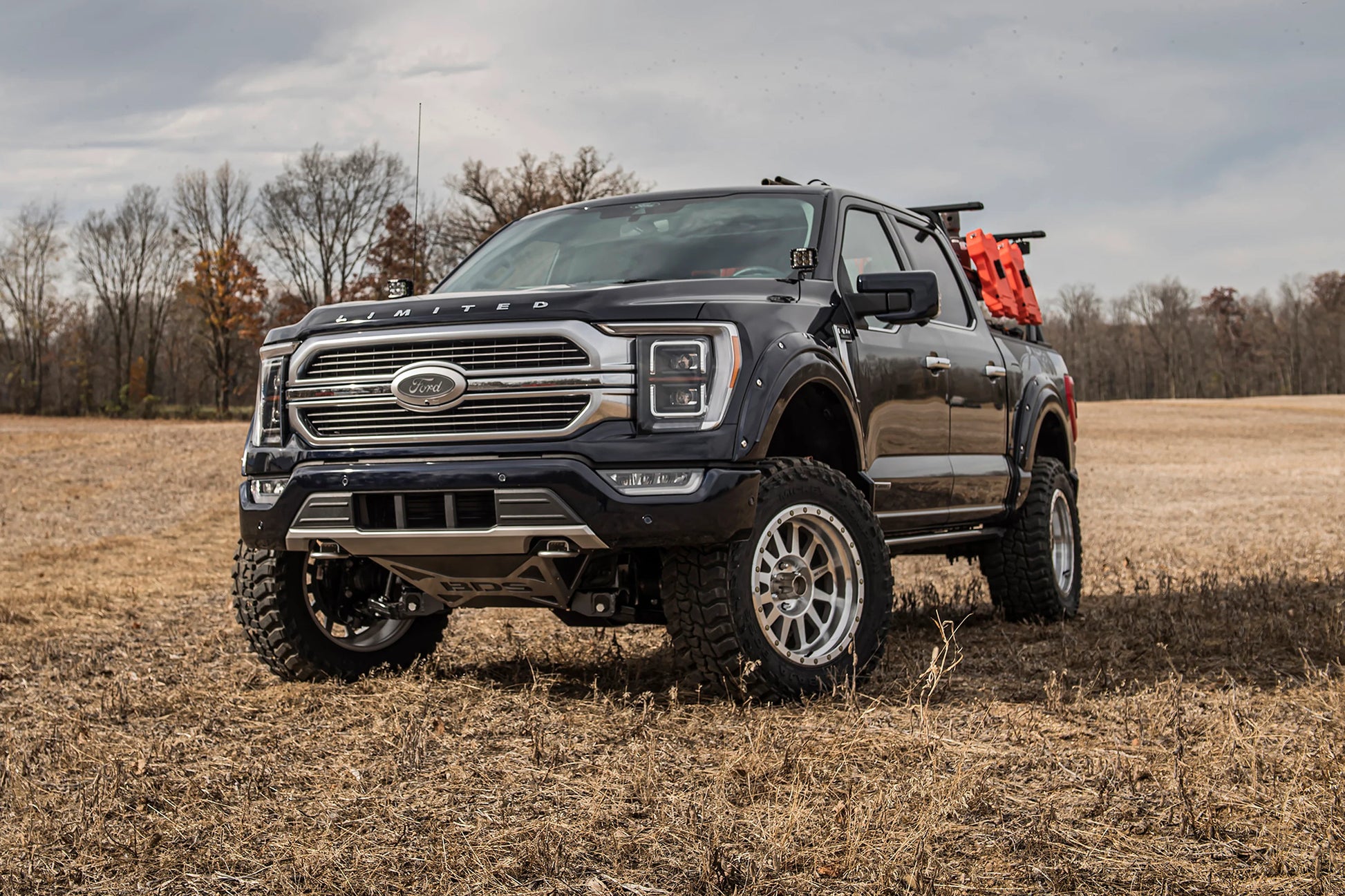

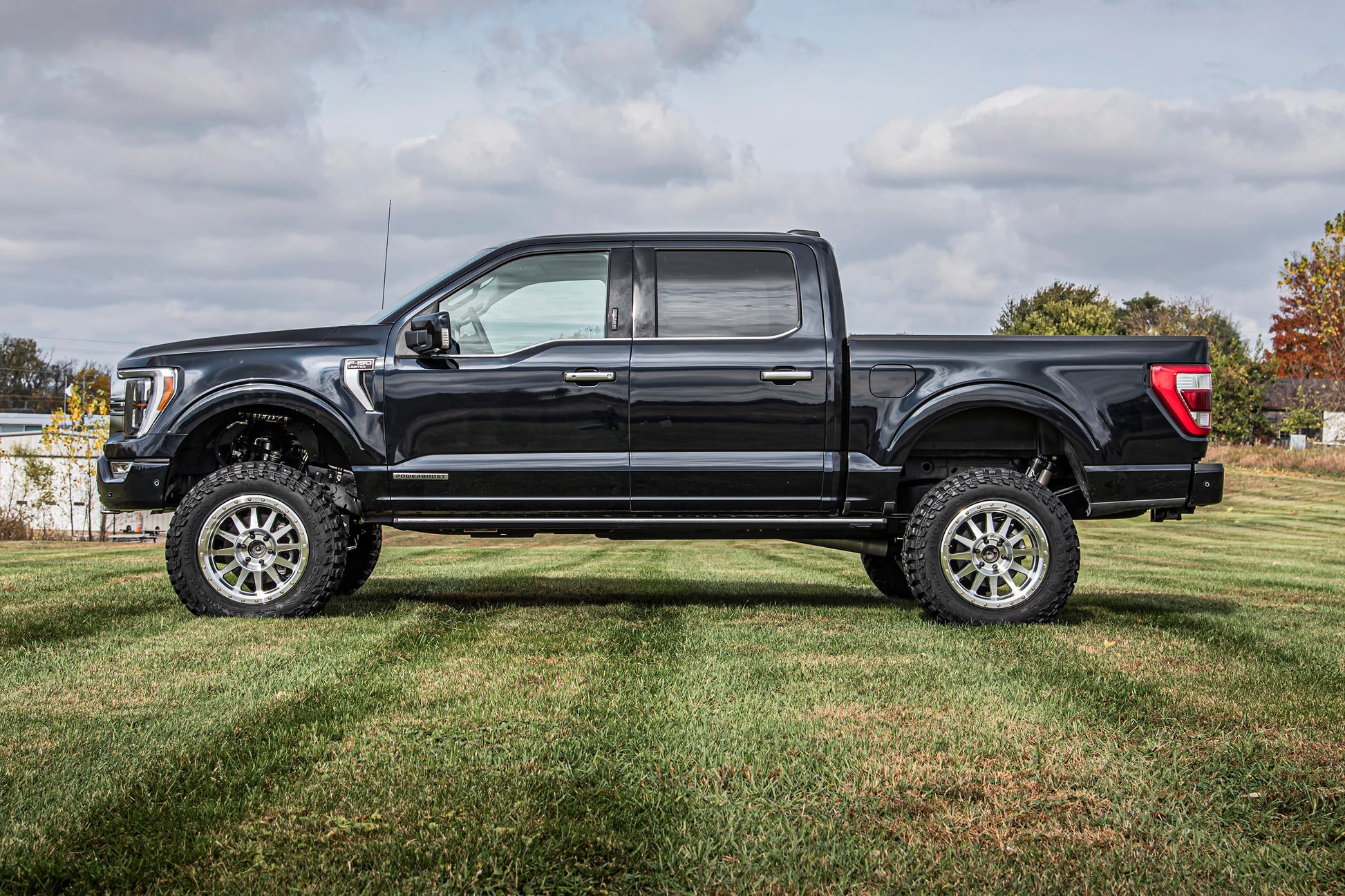

Shown in the photos, Christian's 2021 F150 build is rocking some Bilstein 6112's which offer 0-2.5"s of lift. This is ideal for that perfect stance and level ride height that many are after. With this, the truck is rolling on some LT285/65R20 Nitto Ridge Grapplers which are a hybrid terrain tire. This means you get the best of both worlds, meaning as a mud terrain and all terrain you get optimum performance without sacrificing ride quality or traction.



2021-2024 CCD EQUIPPED F-150

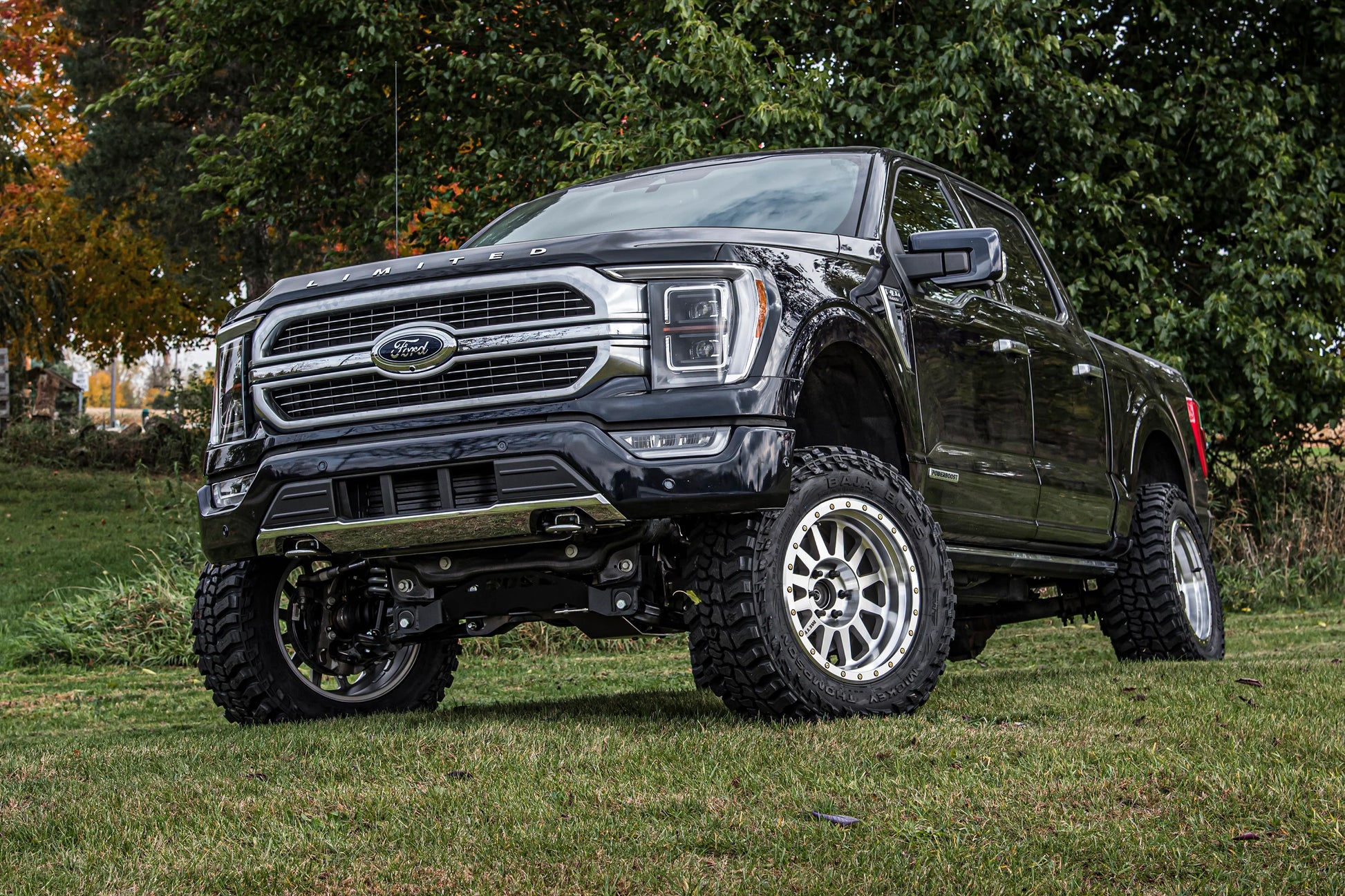

For those with 21-24' CCD equipped trucks, we also offer a kit for your build as well. This would be a BDS 6" Lift kit option. The BDS 6" kit retains your OEM struts and rear shocks in order to maintain all modes and electronic capabilities. Without the proper CCD configuration, the truck throws constant codes, so shop with ease knowing our kit offered is ideal for your truck.

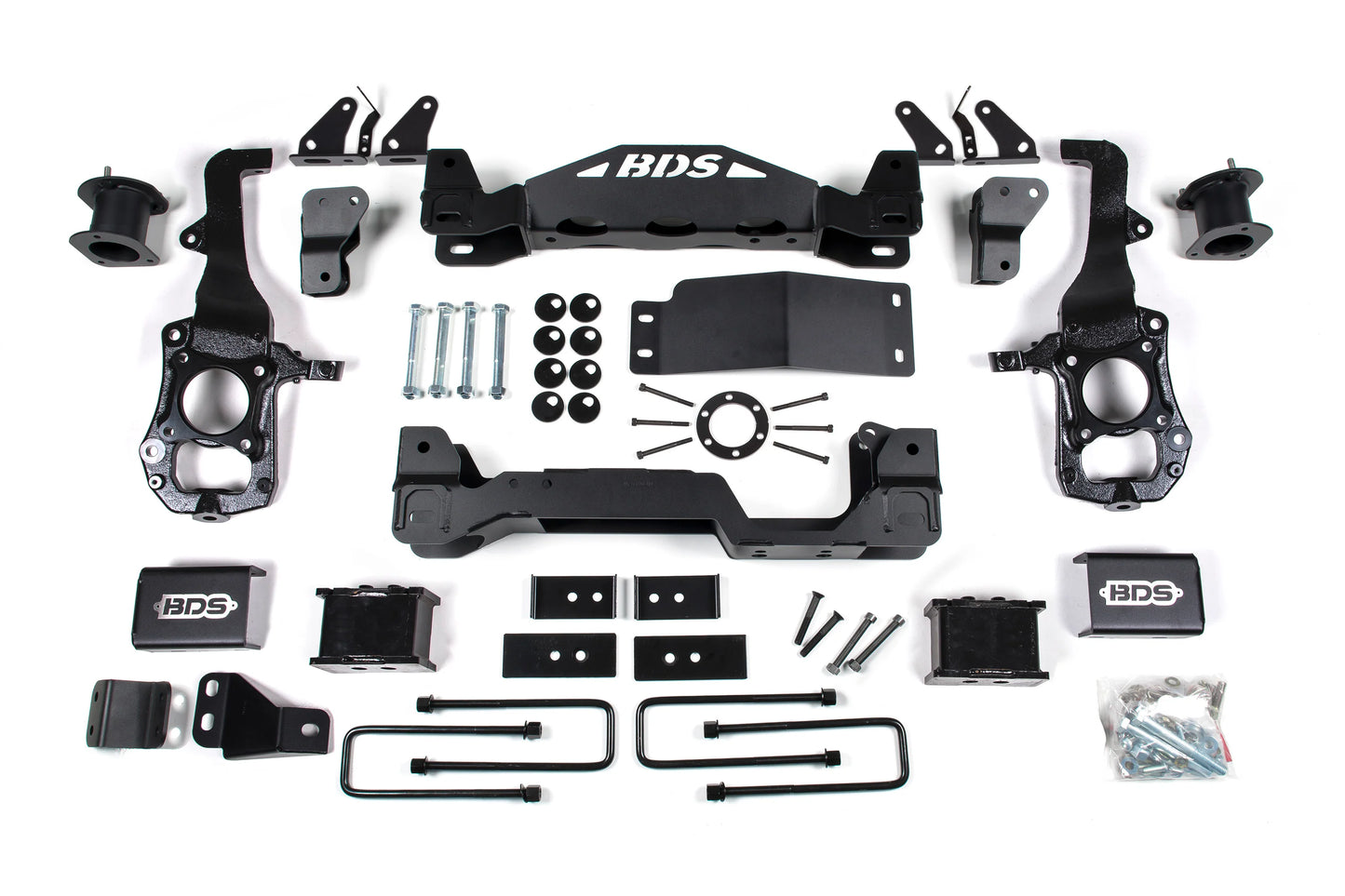

BDS steps up the performance and capability of the 2021-2024 Ford F150 trucks factory equipped with CCD (Continuously Controlled Damping) with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along with shock relocation brackets to maintain the factory CCD shocks.

High Clearance Crossmembers

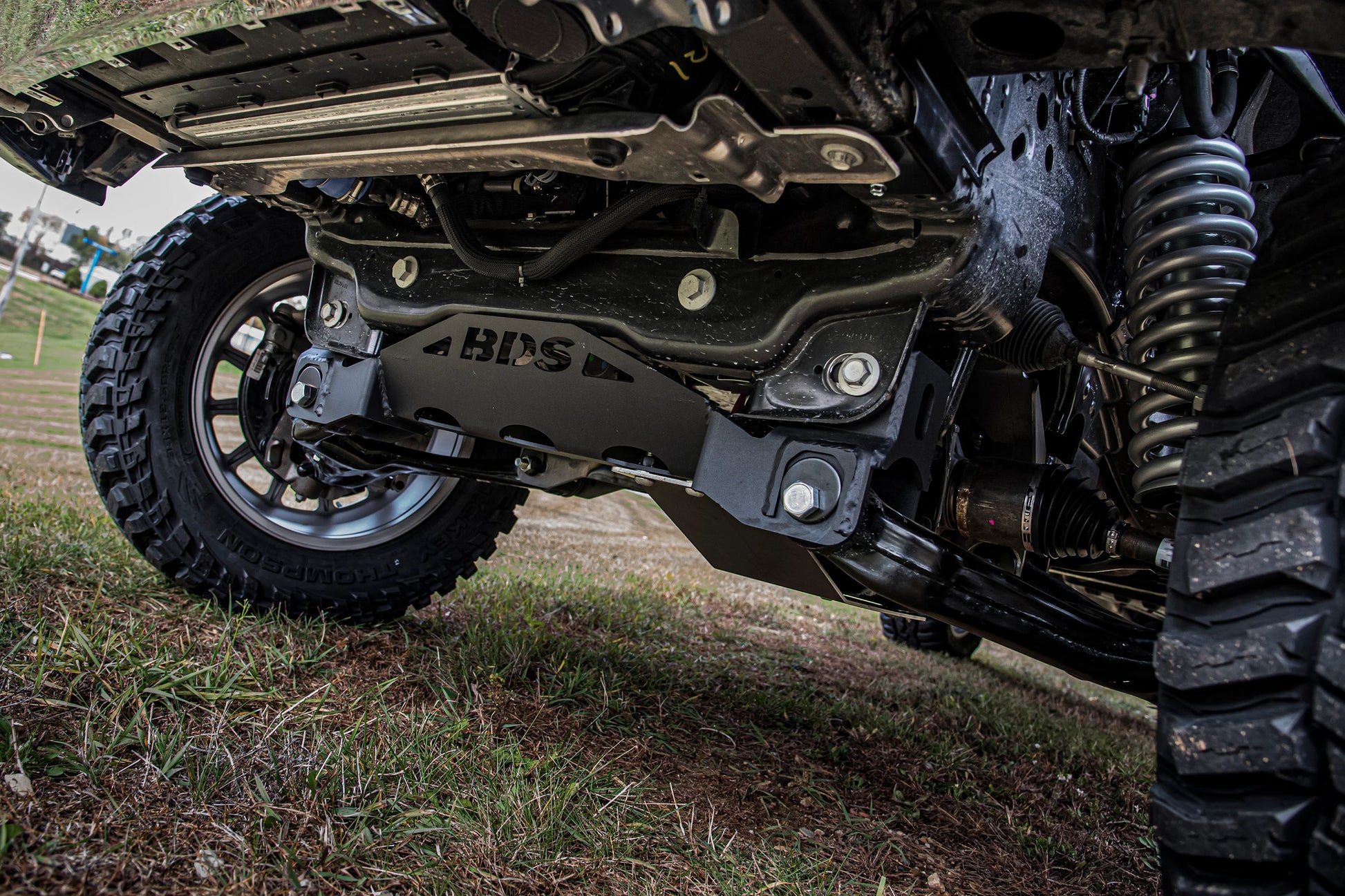

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Shock relocation brackets included to maintain CCD shock system



If a different tire package is preferred please reach out to us directly at Tspbuildz@gmail.com for a custom configuration.
