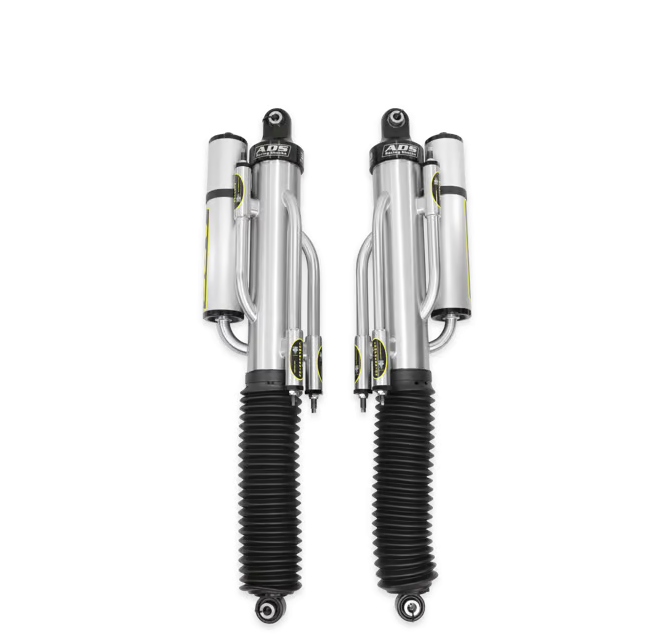

ADS Racing Shocks 2010-2014 Ford Raptor 3.0 Rear Bypass Shocks

ADS Racing Shocks Direct Fit suspension upgrade, designed to take your off-road performance to the next level. These top-of-the-line shocks are engineered to provide maximum stability and control, allowing you to conquer even the toughest terrains with ease. Crafted from high-grade materials, ADS Racing Shocks bolt-on suspension upgrade is built to withstand extreme conditions and heavy use. The advanced damping technology ensures a smooth ride, minimizing shock and vibration for maximum comfort. Installation is a breeze, with a bolt-on design that fits seamlessly onto your existing suspension system. Whether you're a seasoned off-road enthusiast or just starting out, ADS Racing Shocks bolt-on suspension upgrade is the perfect choice for enhancing your vehicle's performance and handling.

Active or Passive Suspension	Passive
Adjustable Compression	Yes
Adjustable Rebound	Yes
Adjustable Reservoir	No
Adjustable Ride Height	No
Body Color	Silver
Body Diameter	3 IN
Body Finish	Electric zinc plated w/ Ceramic coat
Body Material	Steel
Boot Included	Yes
Brand	ADS Racing Shocks
Collapsed Length	17.995 IN
Drivetrain	4WD
Emission Code	6
Extended Length	29.665 IN
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Mono tube
Internal Rebound Bumper	No
Internal Rebound Spring	No
Lift Range	0-2.5 IN
Lower Mount Type	Eyelet
Mounting Hardware Included	Yes
Part Type	Suspension Shock Absorber
Position	Rear
Quantity	Sold as a pair
Requires UCA	No
Reservoir Color	Silver
Reservoir Diameter	2.5 IN
Reservoir Finish	Anodized
Reservoir Length	11 IN
Reservoir Material	6061 Aluminum
Reservoir Type	Piggyback
Shaft Diameter	0.875 IN
Shaft Material	Hard-chrome plated steel
Shock Travel	Extended Travel
Travel Length	11.669999999999998 IN
Type	Bypass
Upper Mount Type	Eyelet
Valving Type	Progressive
Weight	46 LB
