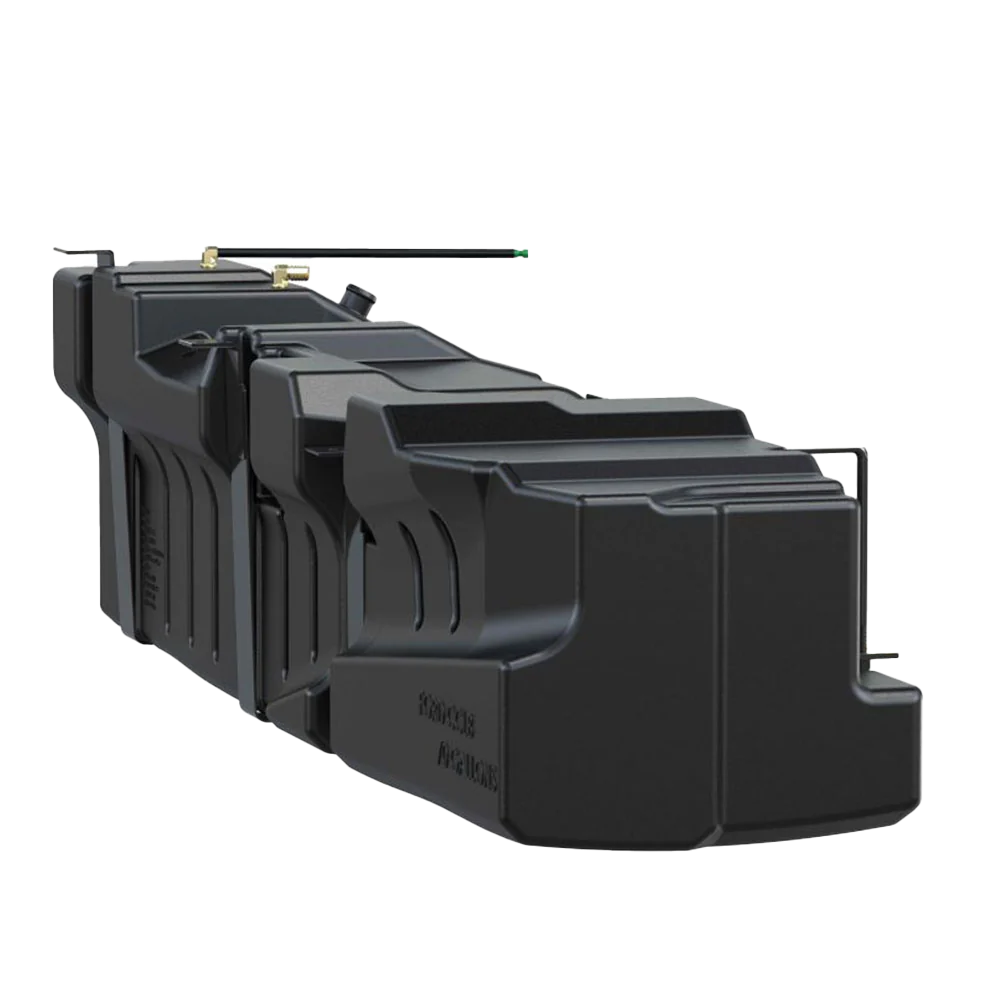

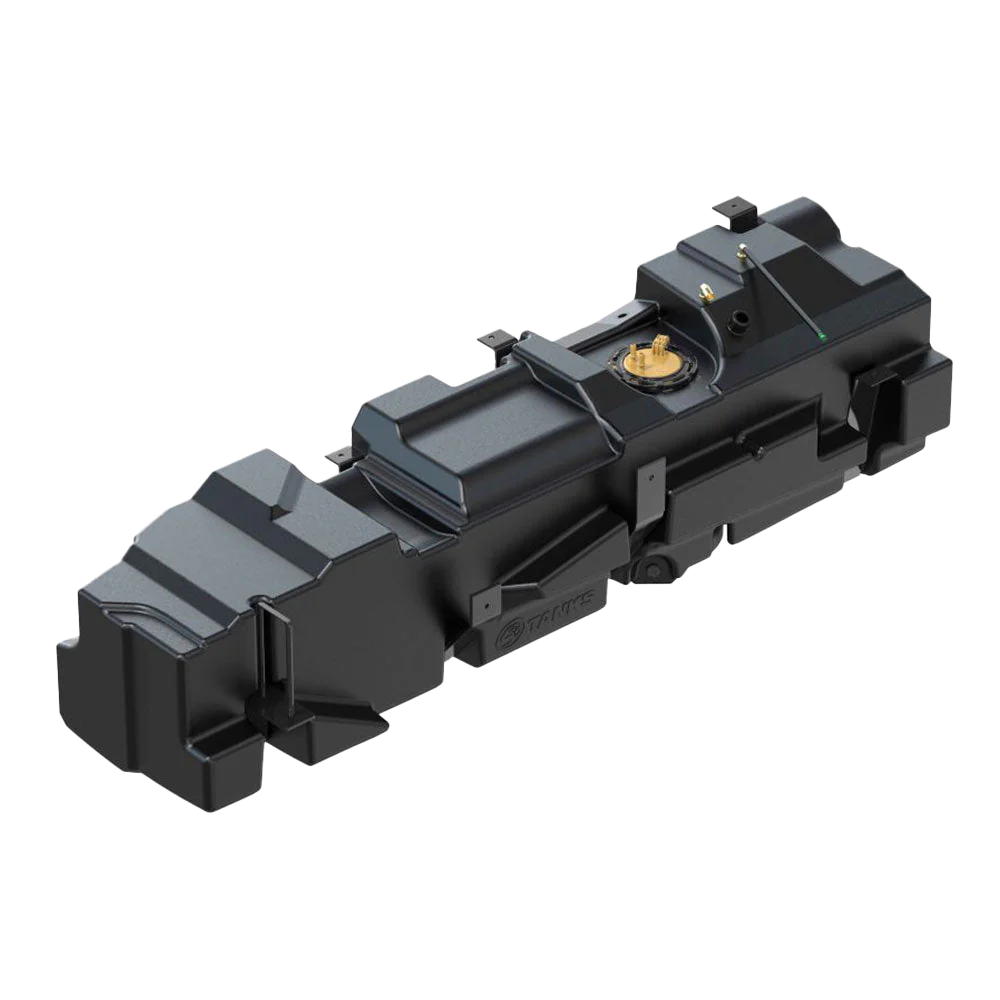

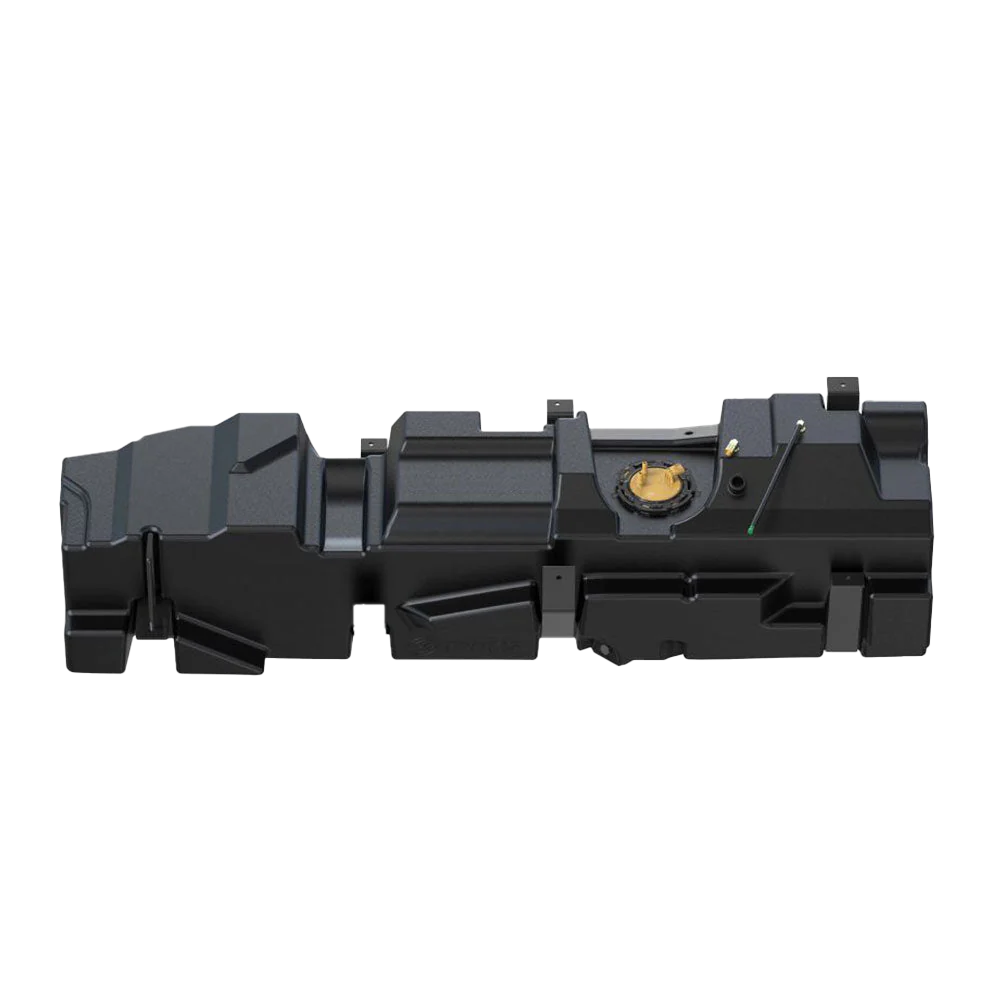

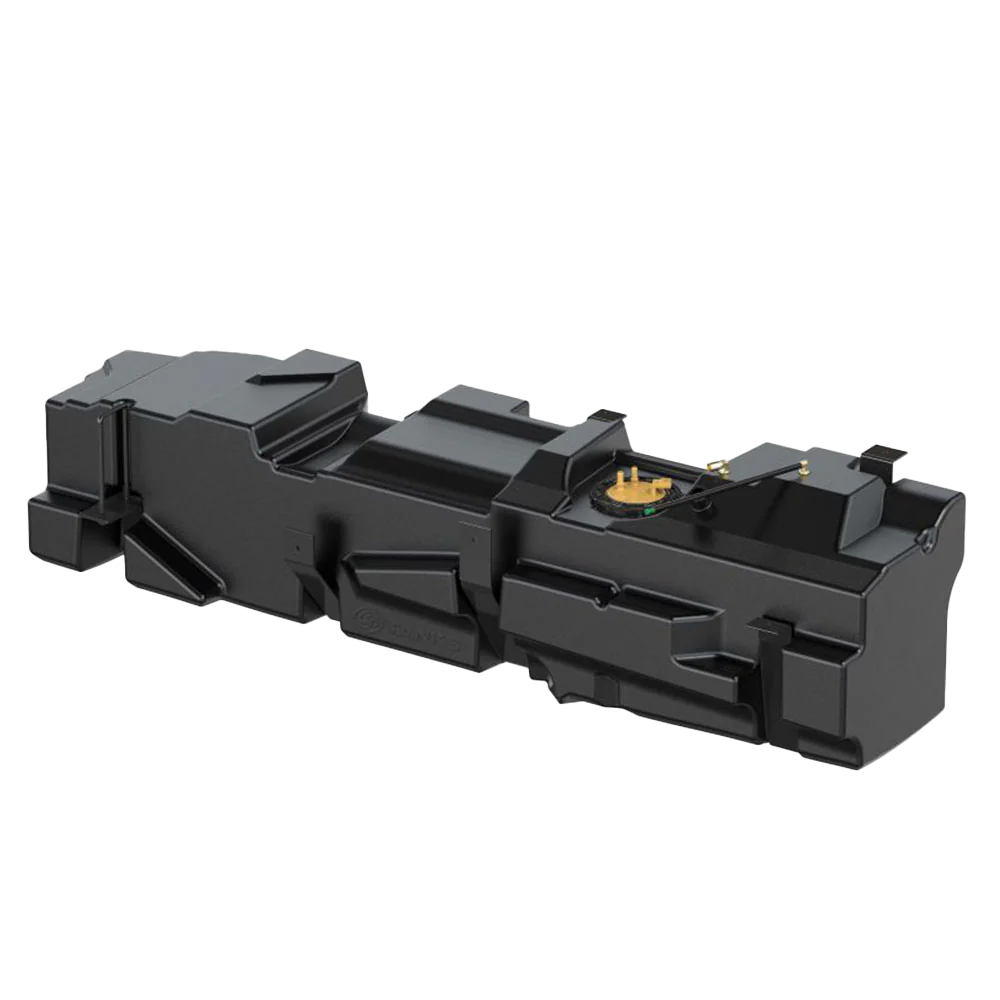

S&B Tanks more than double the range on your truck. The tank reuses the OEM sending unit and comes with new brackets and straps. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 5 more gallons than competitor tanks allowing you to save time, go further, and get more out of your truck!
EASY RECALIBRATION FOR DISTANCE TO EMPTY
We offer a free service to update the computer in your truck so the Distance to Empty (DTE) displays the accurate range.
SAVE TIME. GO FURTHER. GET MORE OUT OF YOUR TRUCK.

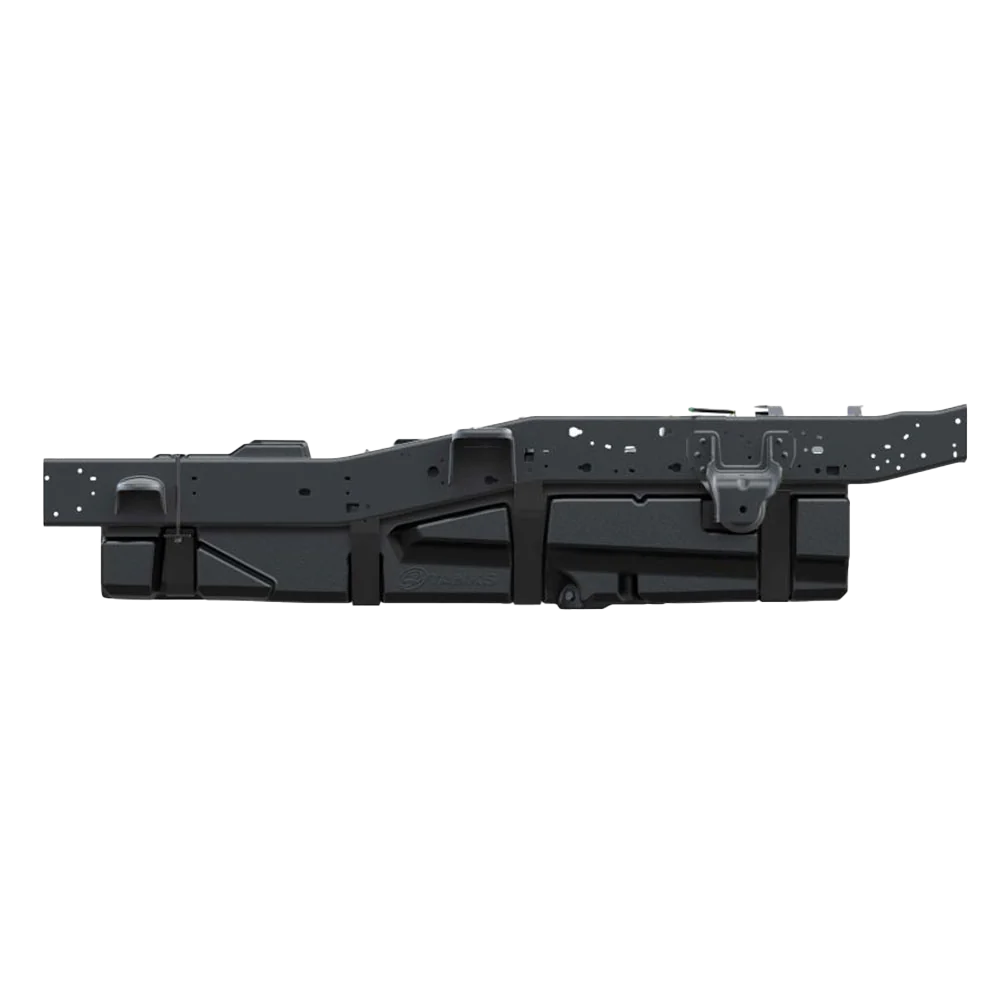

The tank sits 3" below the OEM fuel tank shield. Install can be done in 2-3 hours and does not require any cutting, drilling or modification.
Important Notes: The nozzle at high-flow fuel stations (truck stops) will not be able to fill automatically.
S&B's 70-gallon fuel tank replaces the OEM 35-gallon fuel tank. The replacement tank sits 3" below the OEM fuel tank shield and holds approximately 70 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 70-gallon tank with have a greater fuel reserve.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
| Compatible with gooseneck and 5th wheel | Yes |
| Compatible with oe skid plate | No |
| Dimensions | 80.82" X 19.18" X 20.79" |
| Drain | No |
| Embedded fitting thread size | 1/2" NPT |
| Ground clearance compare to oe tank | 3" Lower |
| Sending unit | OE |
| Straps included | Yes |
| Sump | No |
| S&B Capacity (Approximate) | 70 gallons |
| Tank type | Midship |
| Transfer pump ready | Yes |
| Weight dry | 53lbs |
