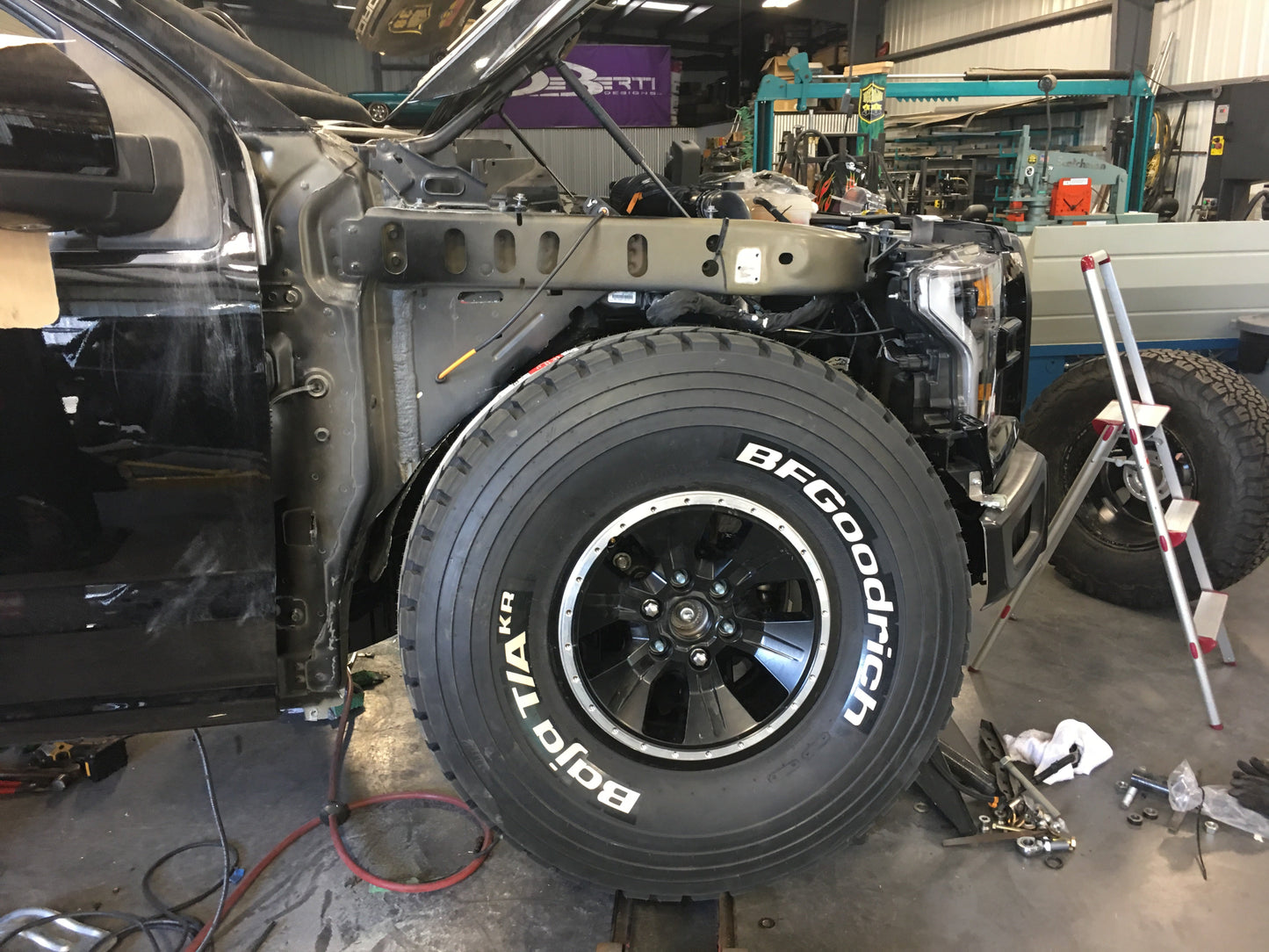

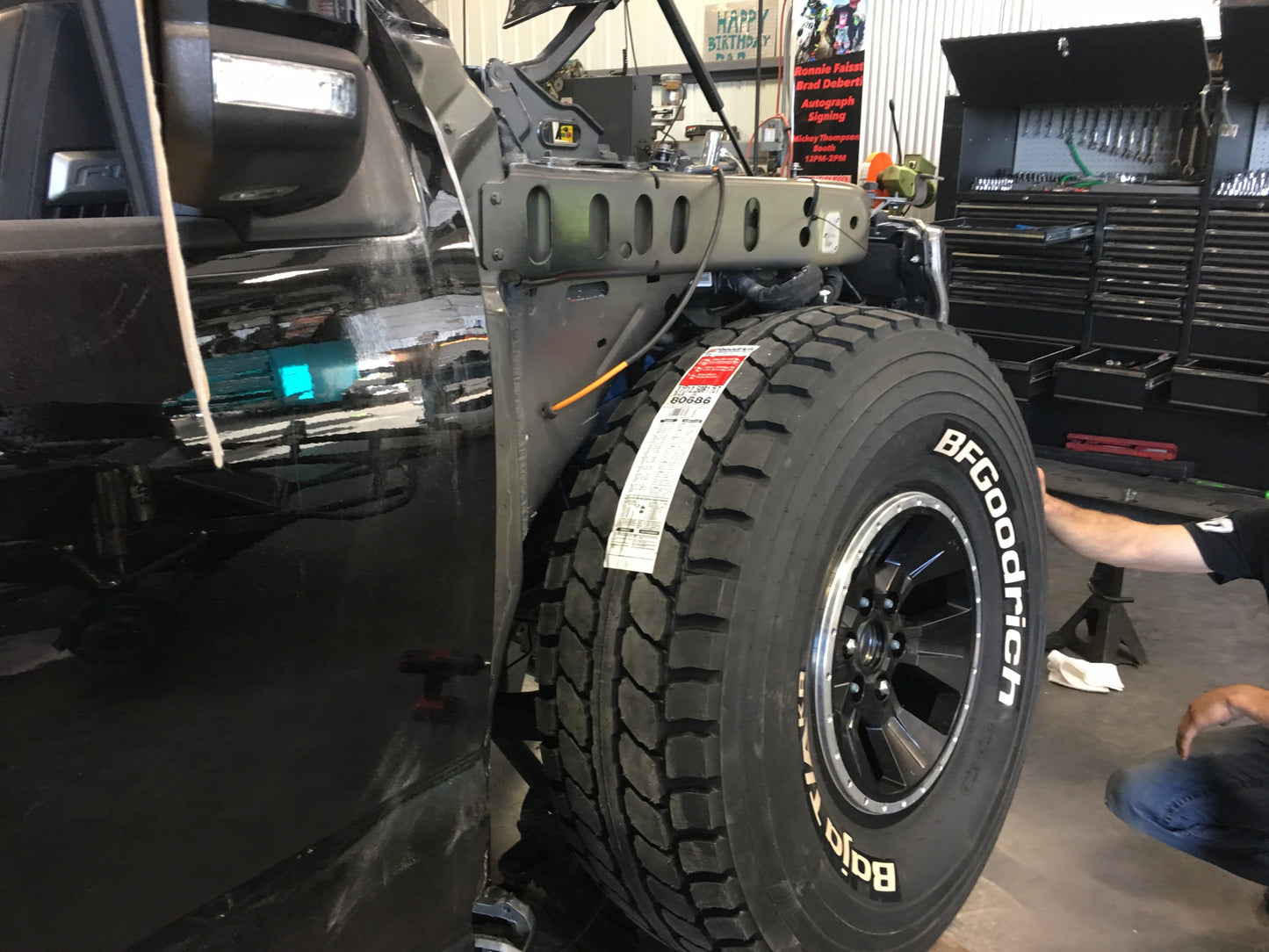

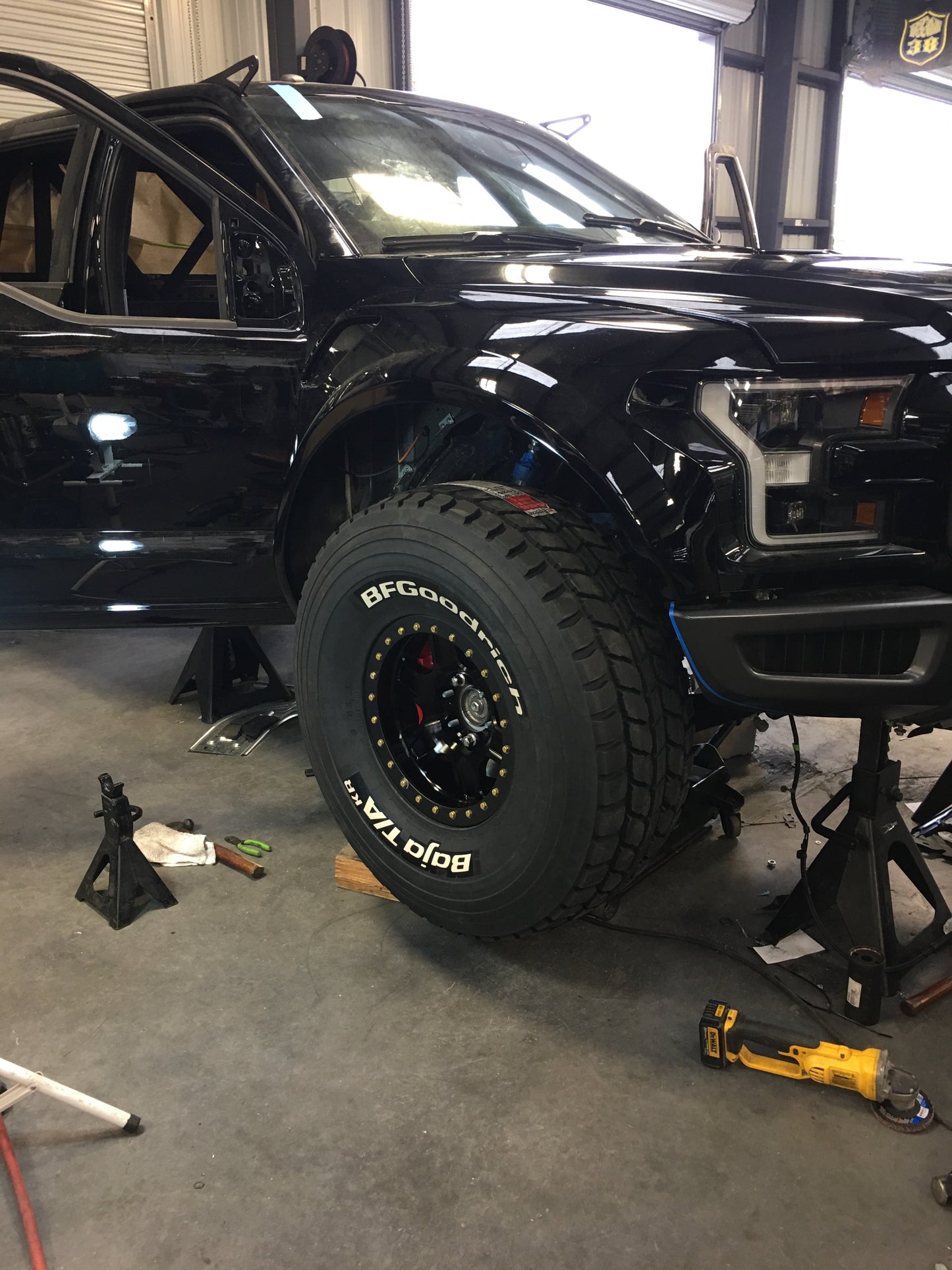

2017 Up Raptor Long Travel Front Suspension Kit - Gen 2

2017 Up Raptor Long Travel Front Suspension Kit - Gen 2

Regular price $14,999.99 USD
Regular price $18,999.99 USD Sale price $14,999.99 USD
Sale Sold out
Shipping calculated at checkout.

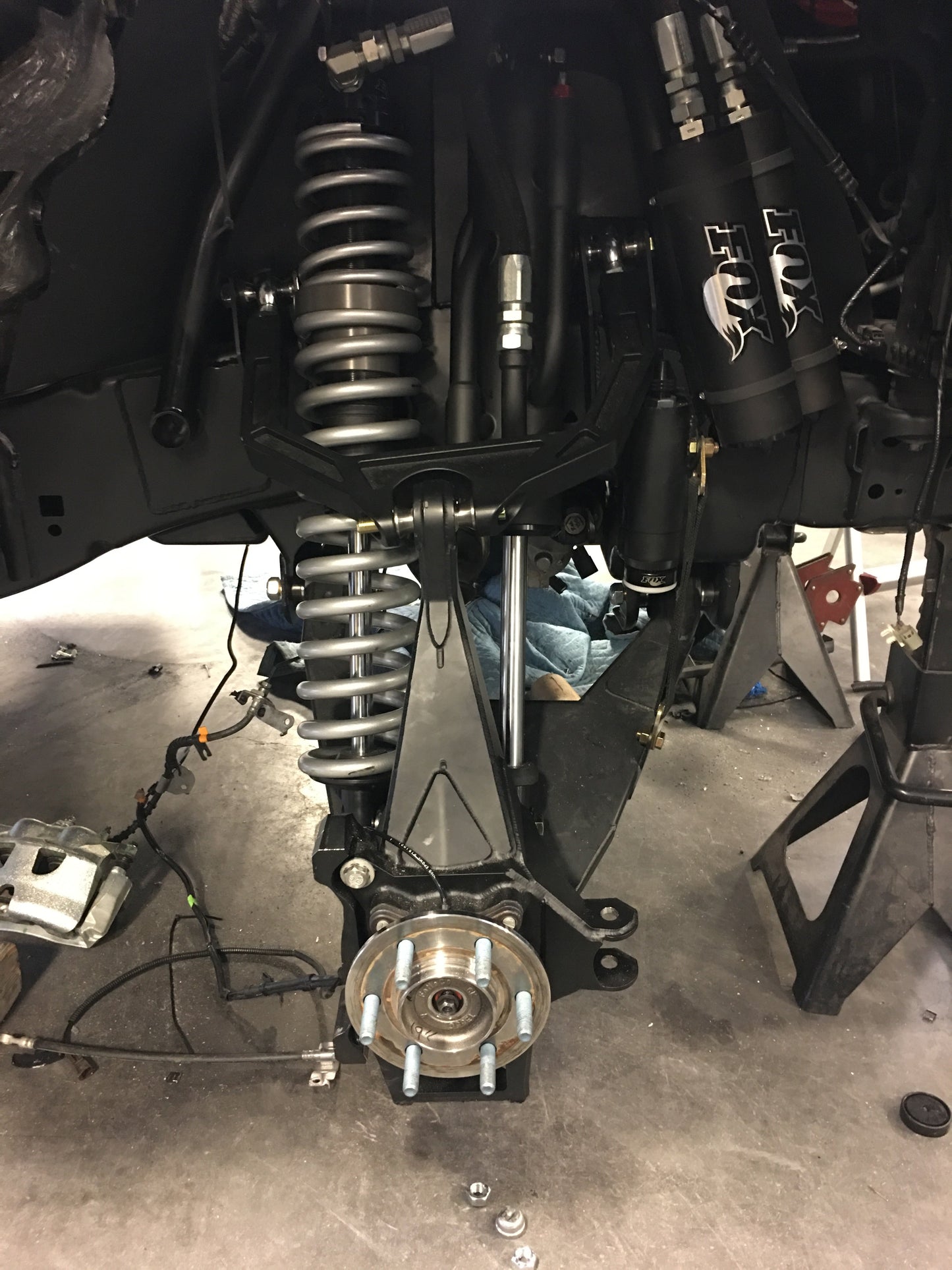

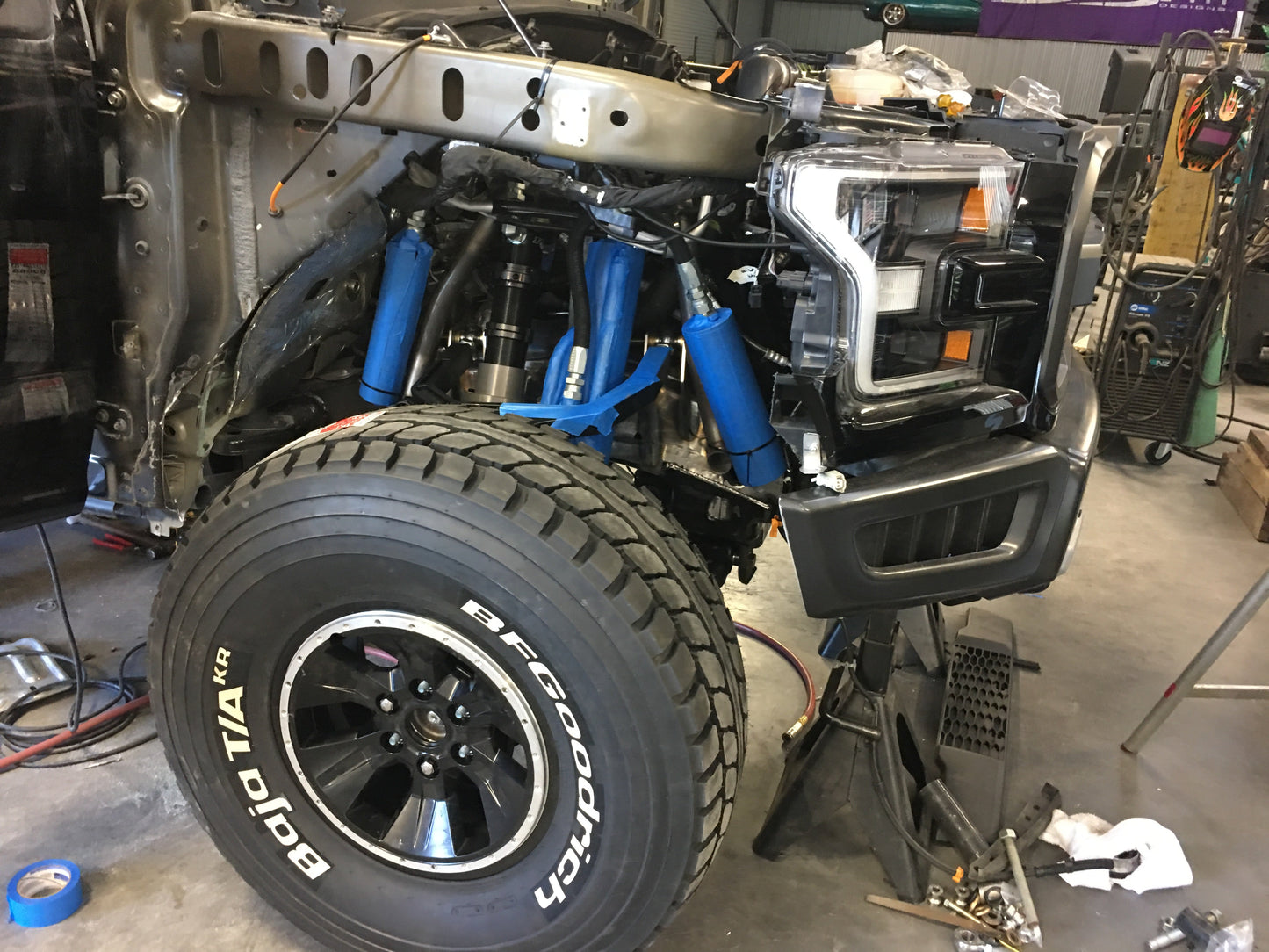

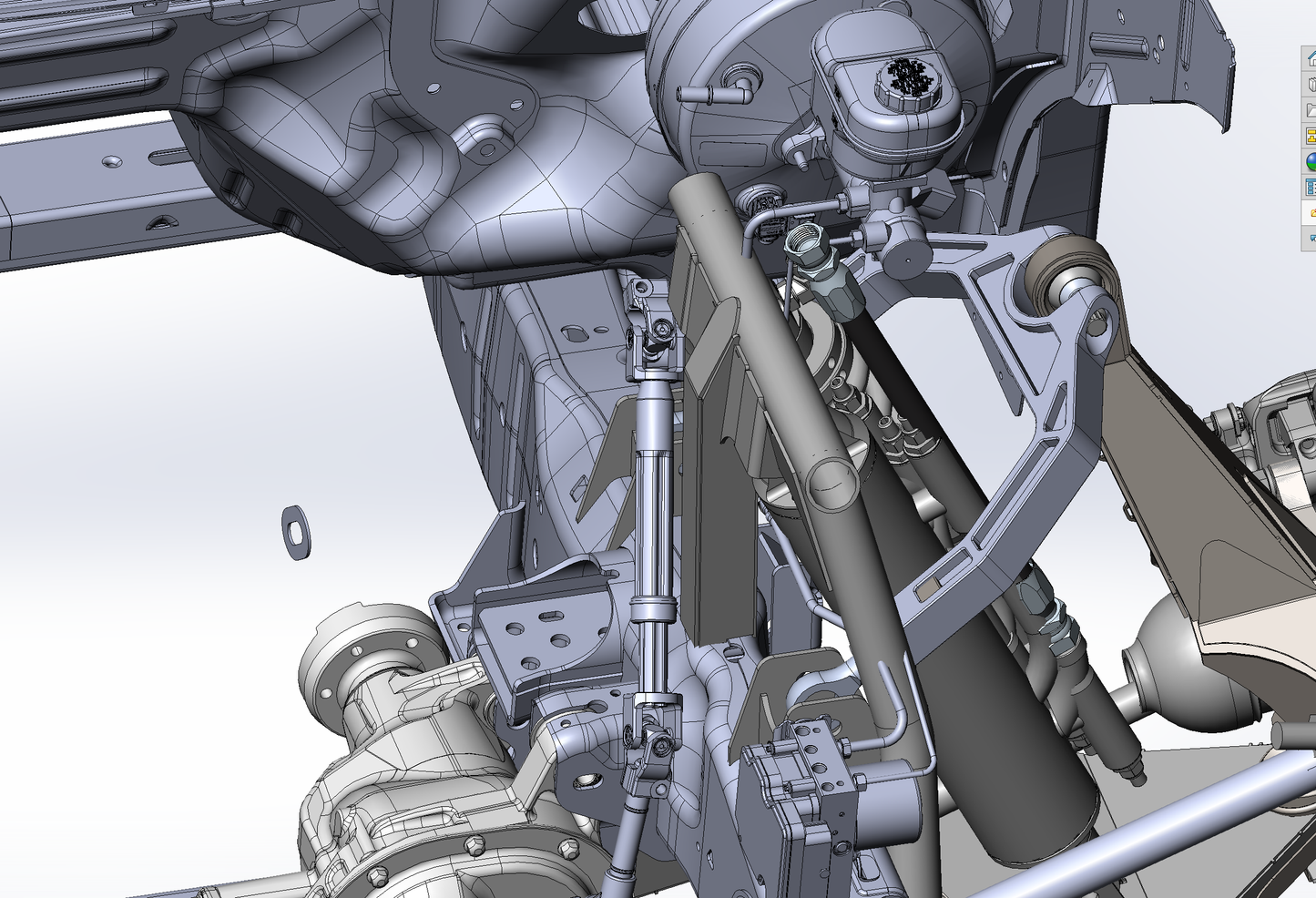

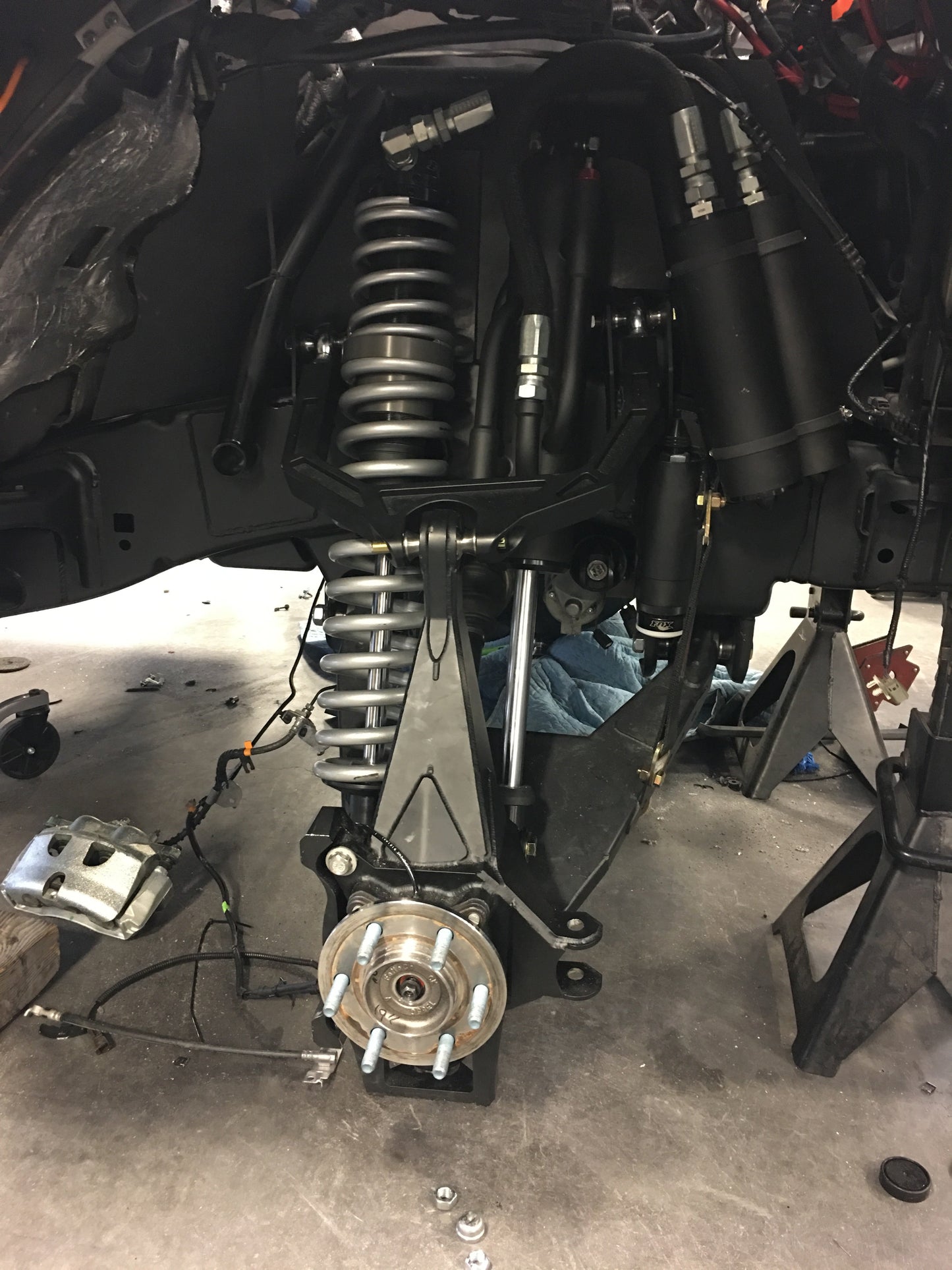

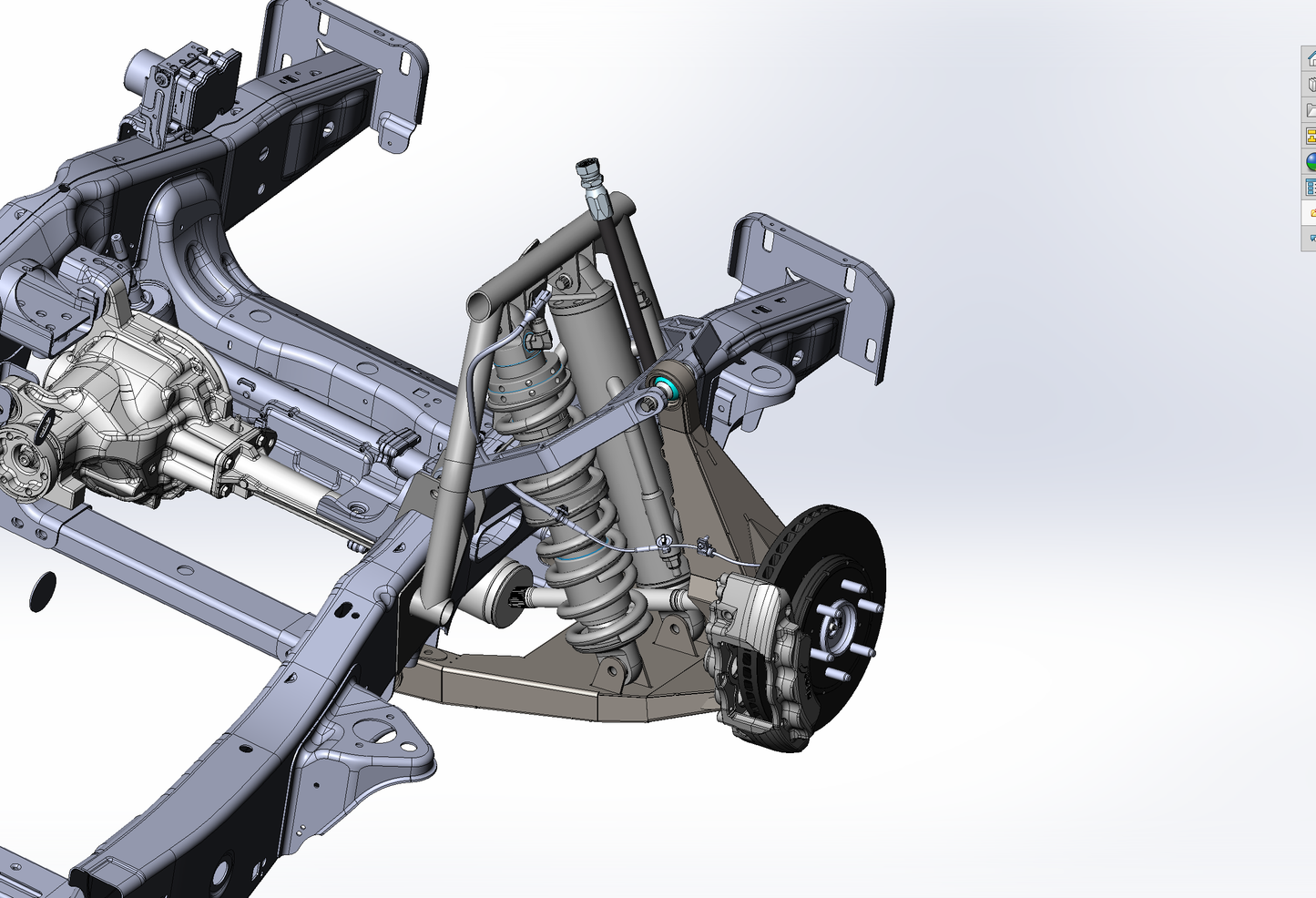

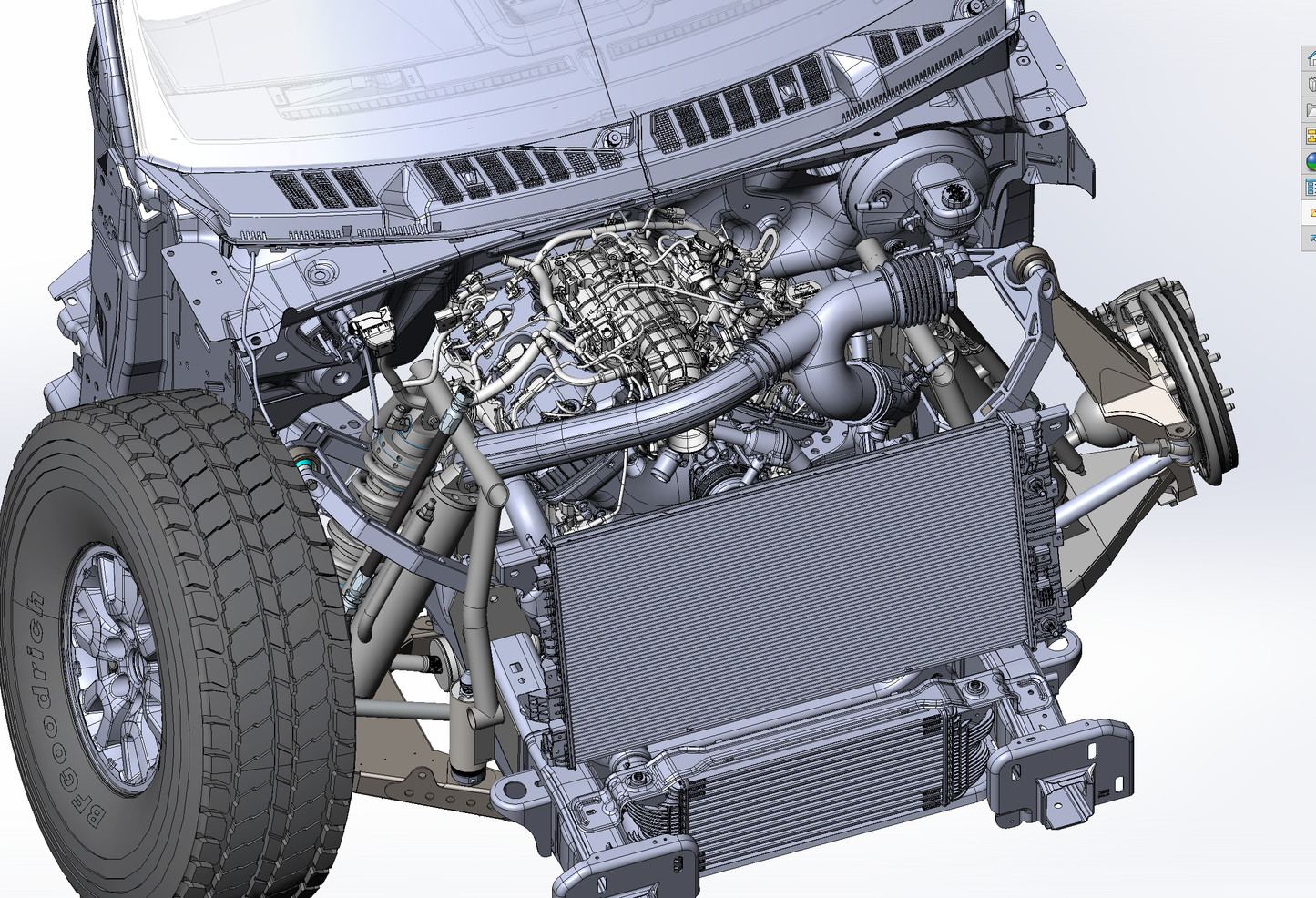

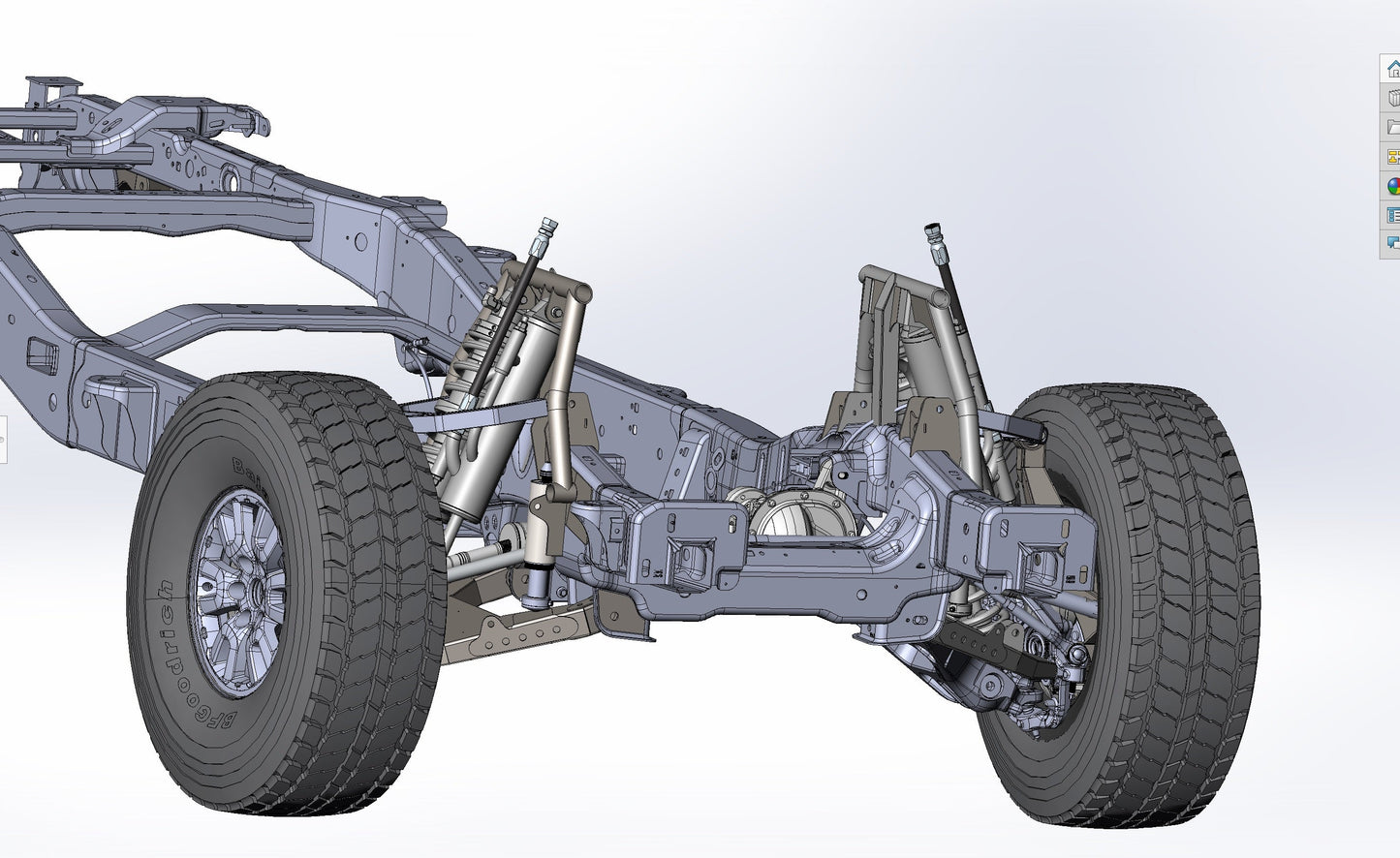

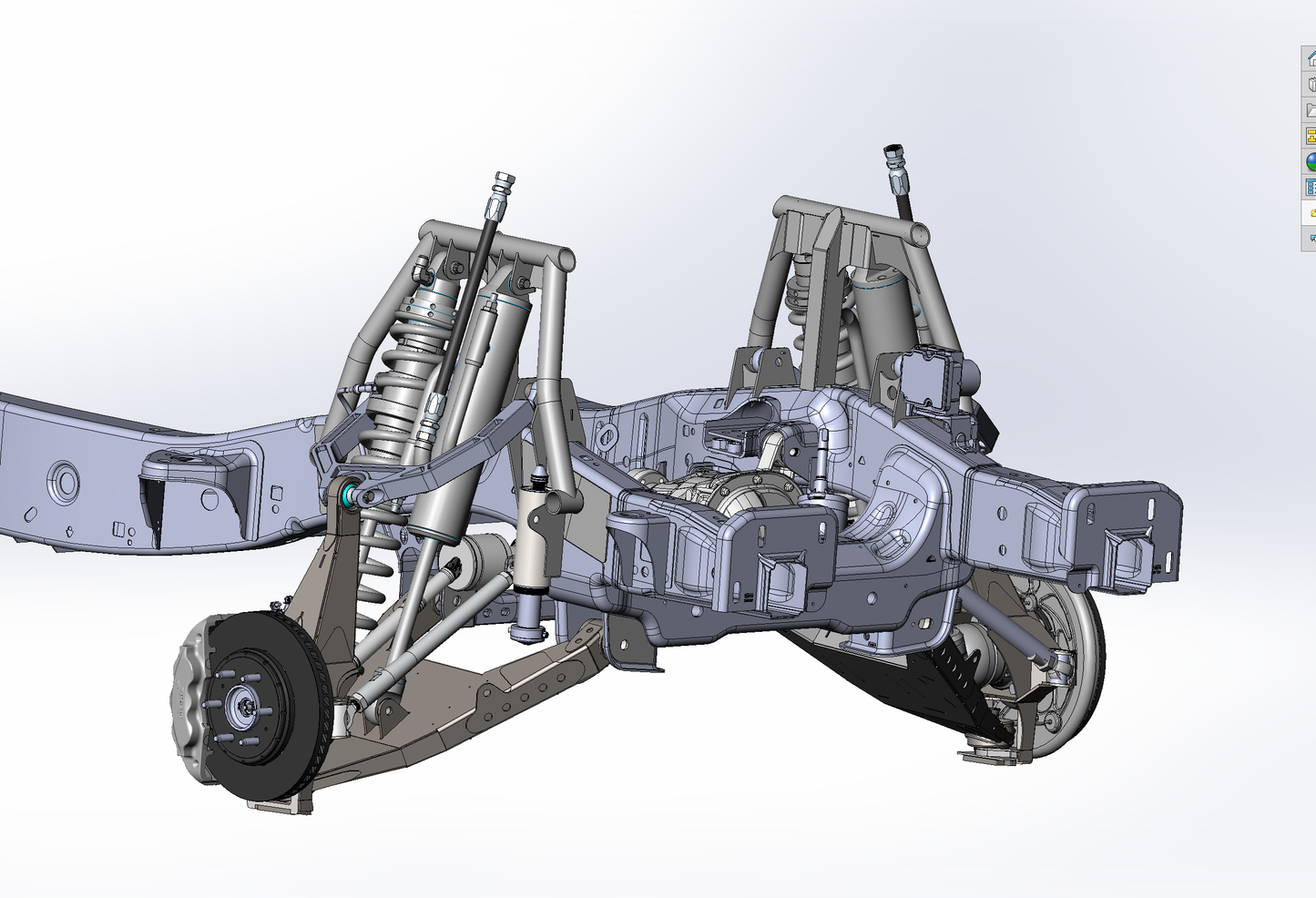

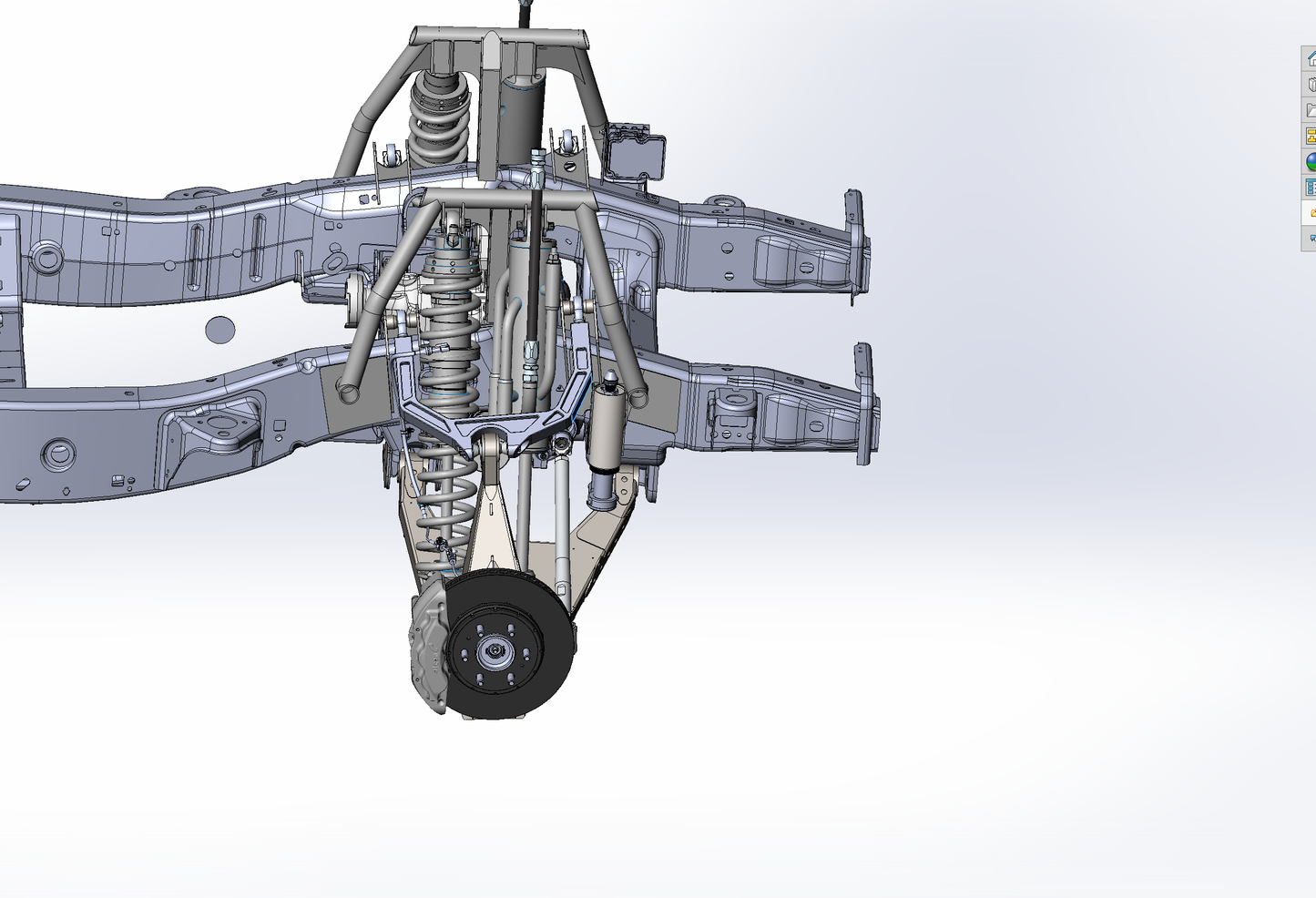

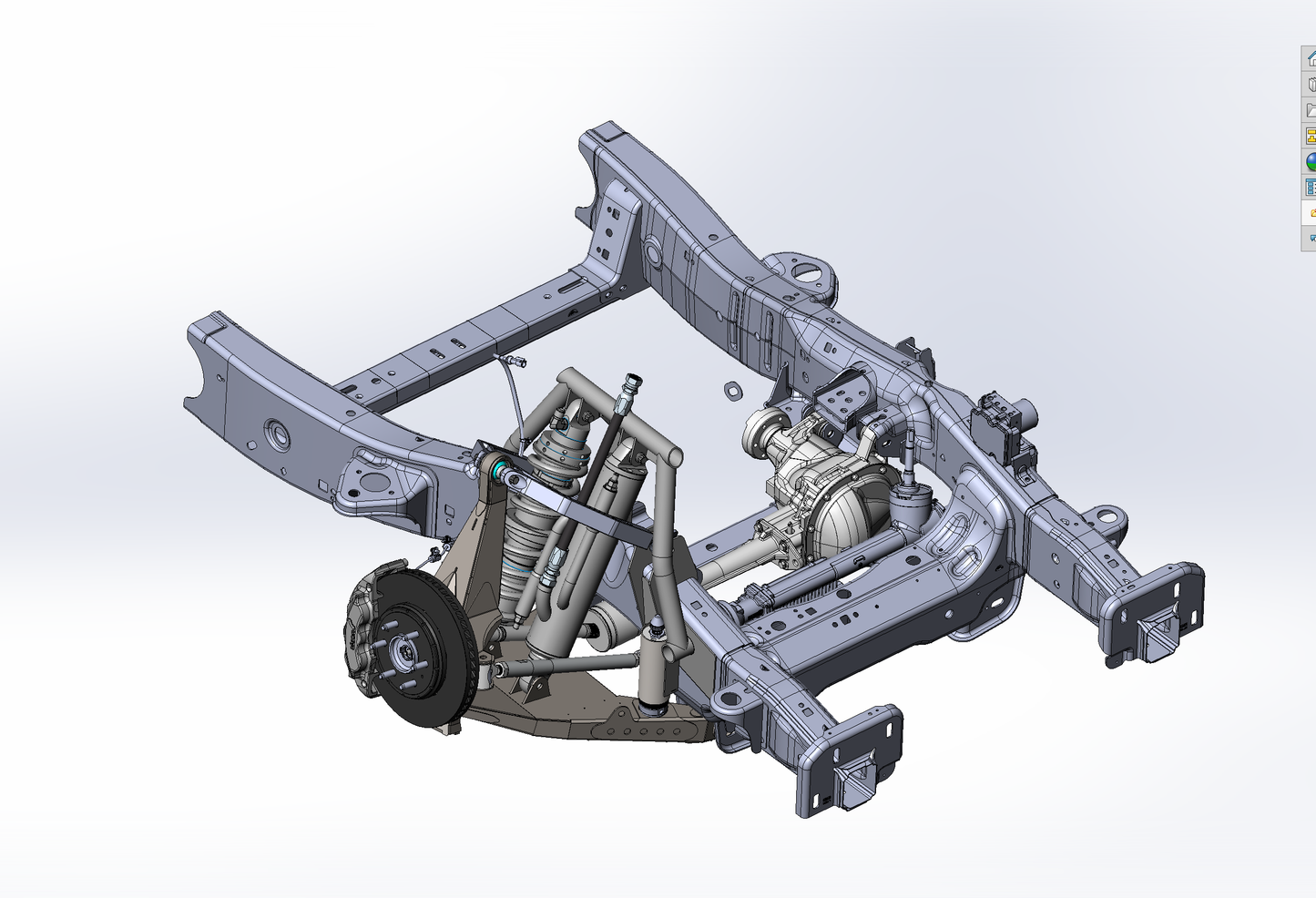

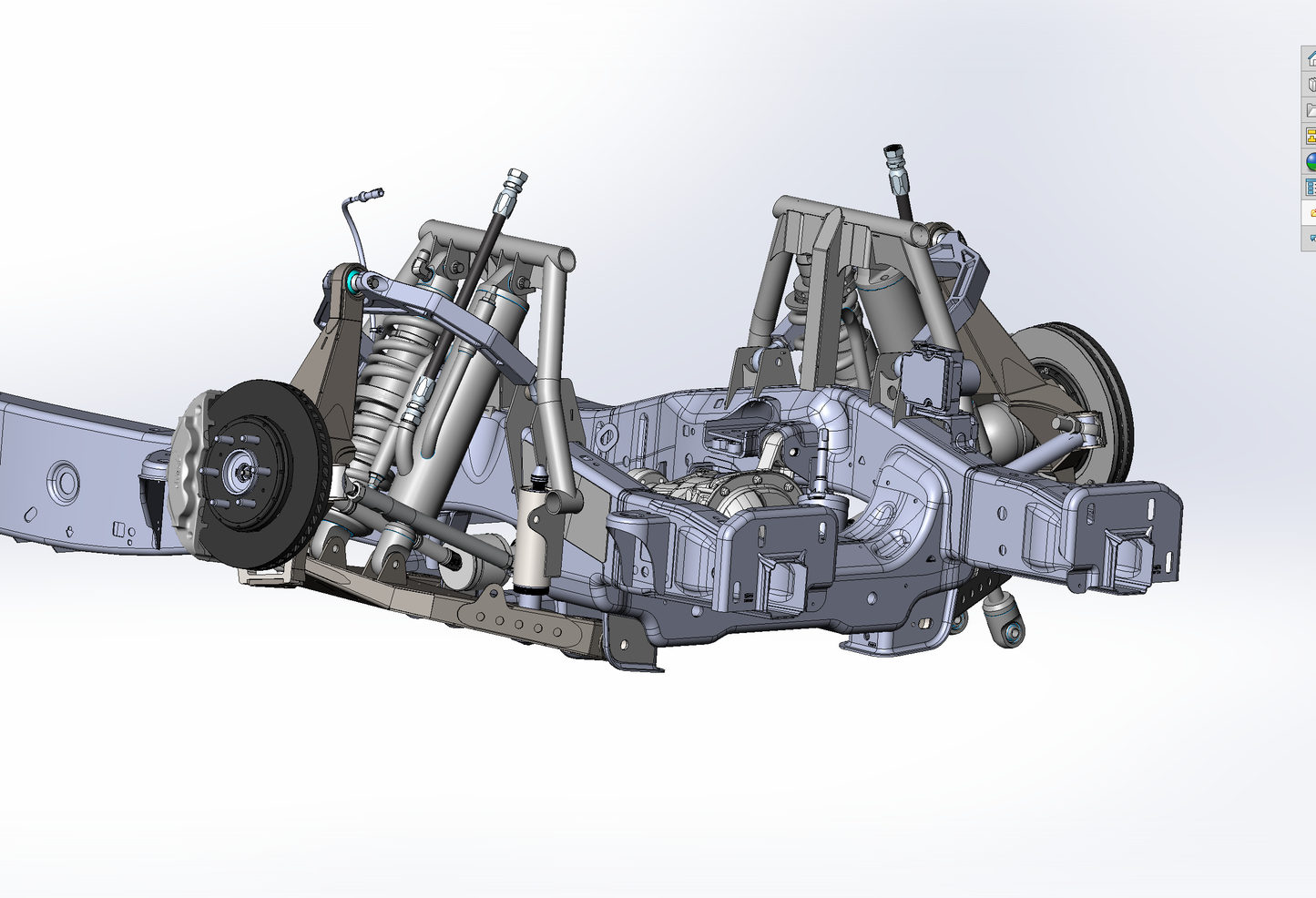

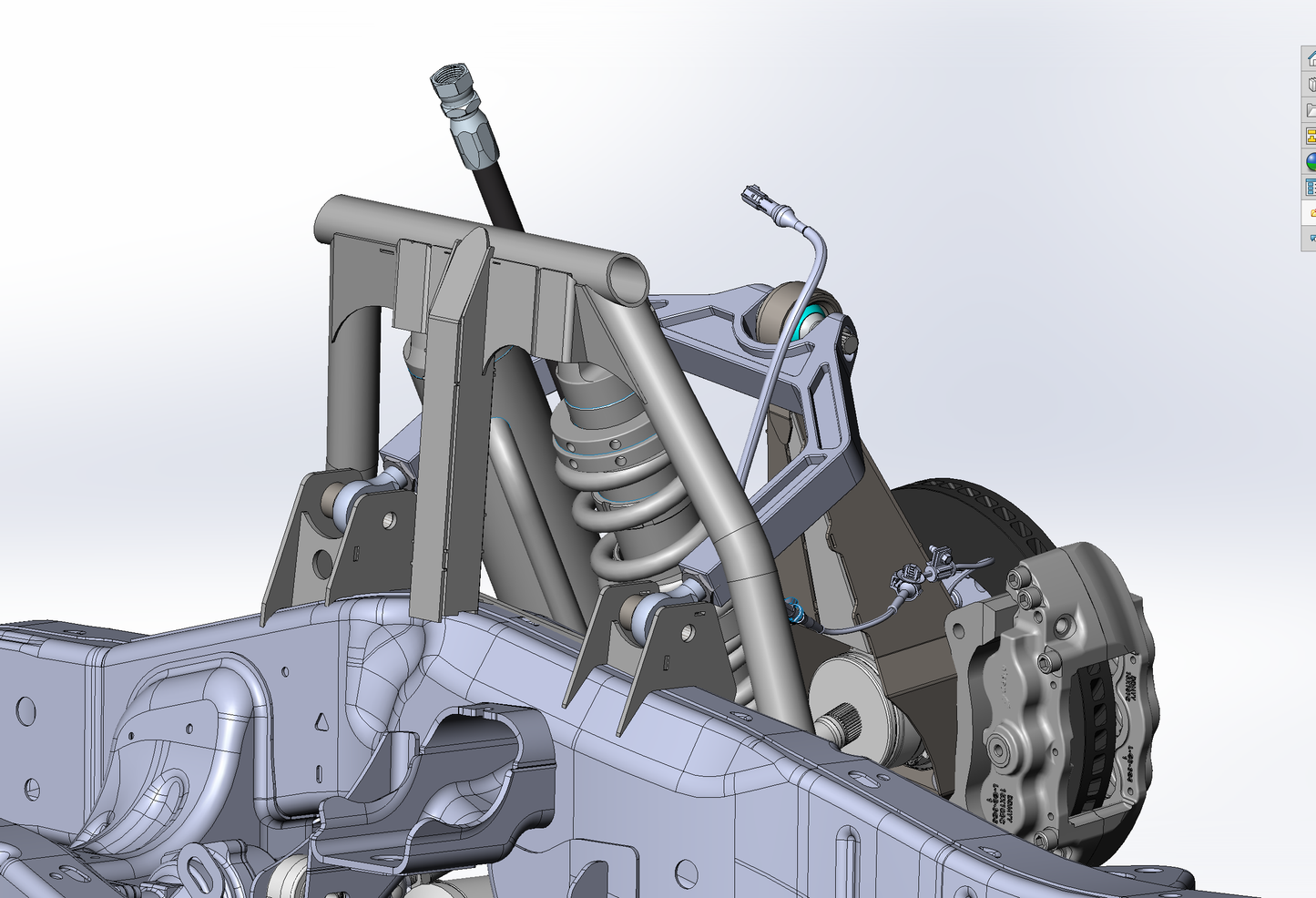

Our race proven front suspension kit has been tested and proven over and over.  This kit features full 4130 Fabricated Lower Arm, Billet Aluminum Upper Arm, Fabricated Front Spindle, Billet Aluminum Tie Rods, Uniball Bearings.  With 18" of working travel keeping your 4 wheel drive you will be able to eat the bumps anywhere you go.  Works with any shock brand in the  correct configuration.   The kit will accommodate up to 4" bypass shock and 3" coil over shock.

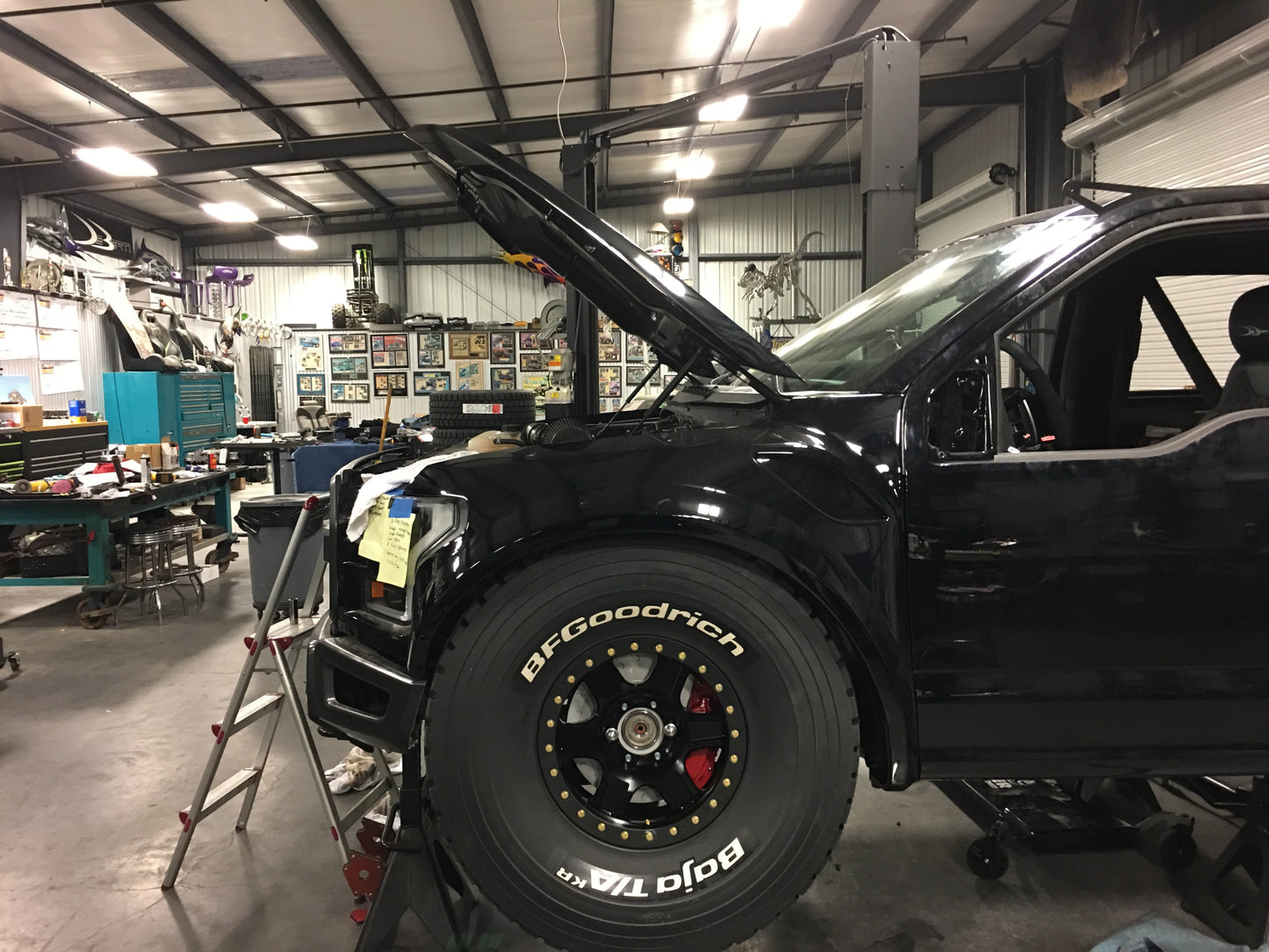

This kit can be installed on all versions of Raptor trucks from 2017 to current model.  In addition the kit can be installed on any 2015 and up F150 trucks.

Kit Includes

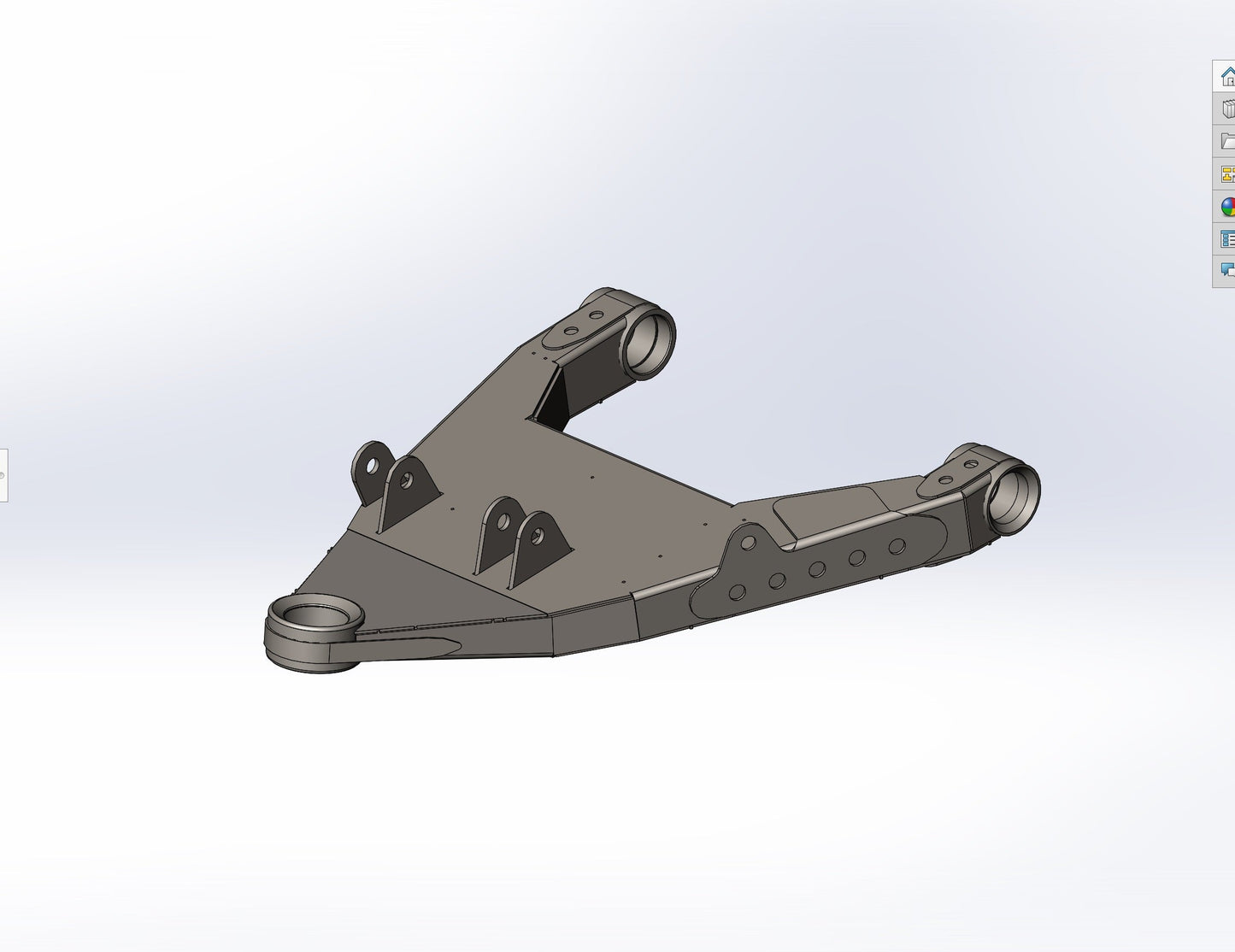

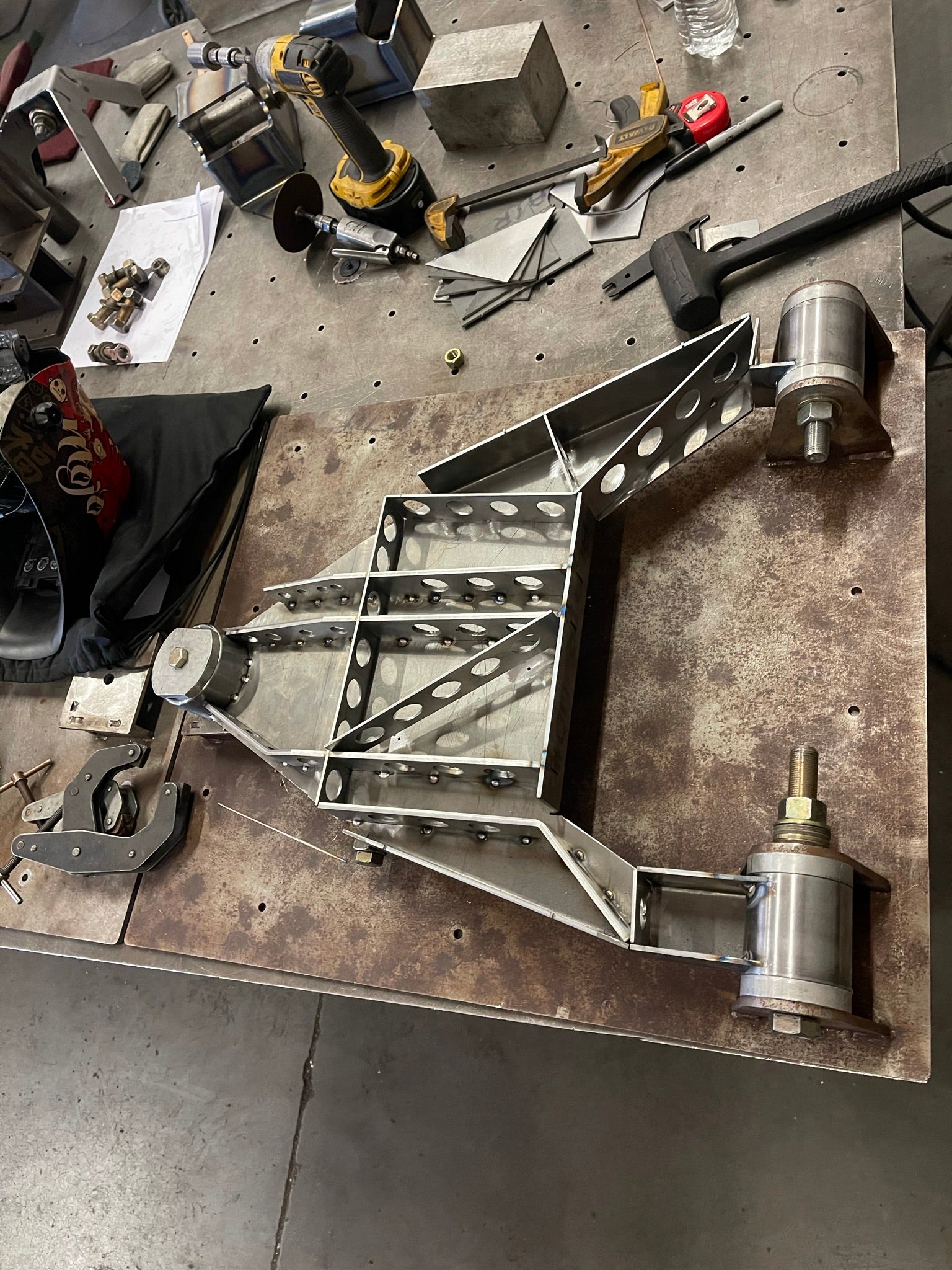

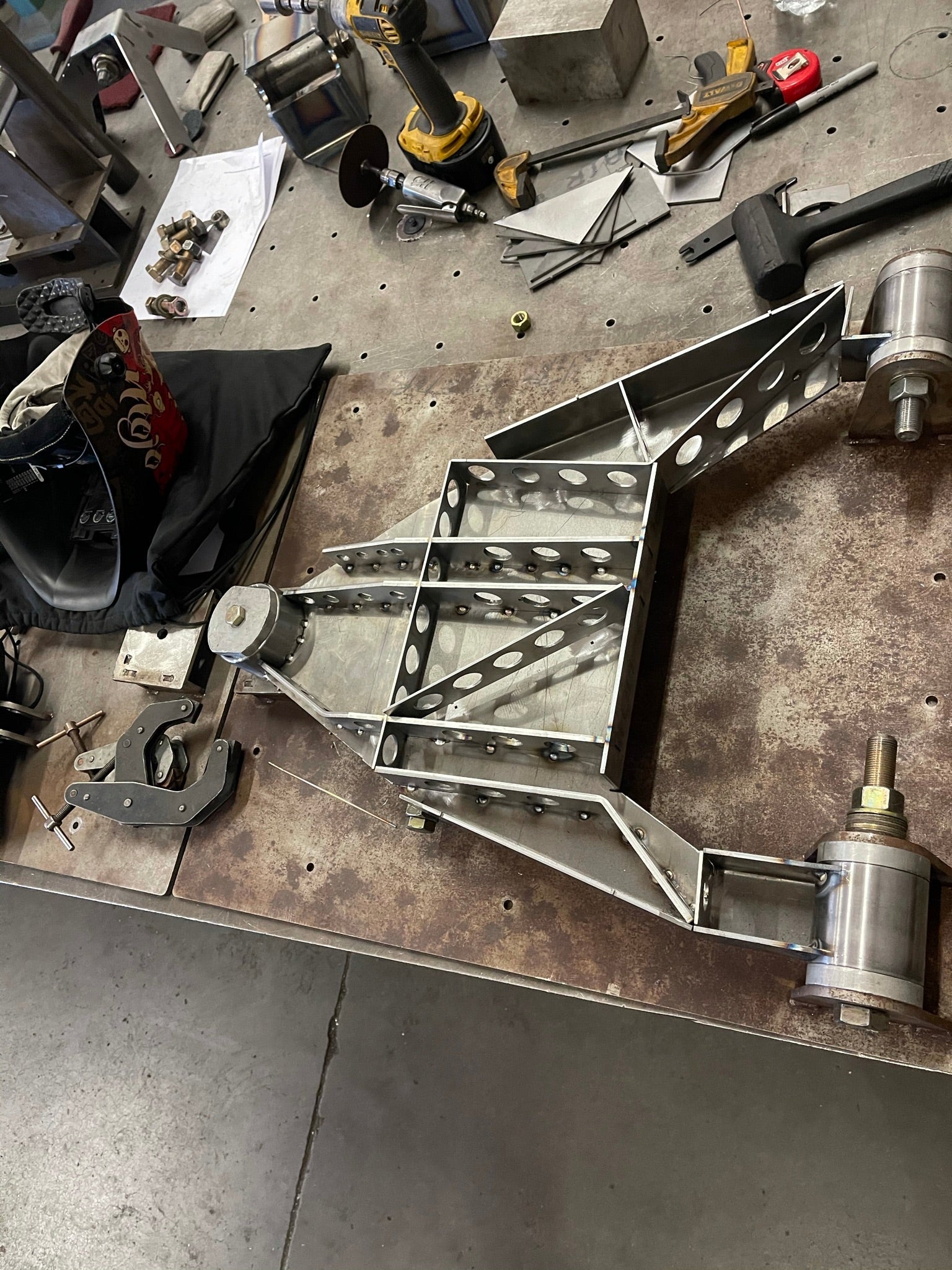

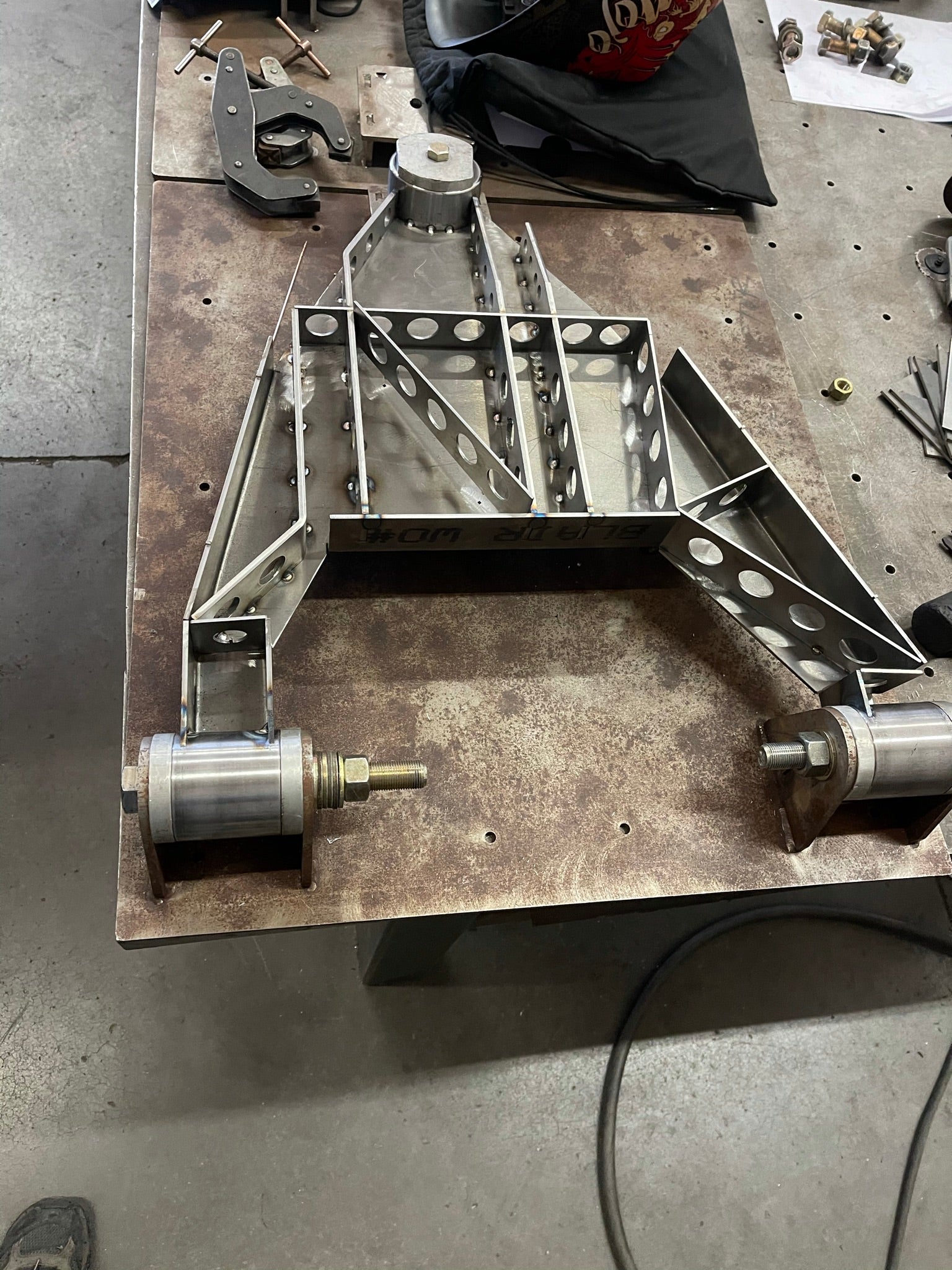

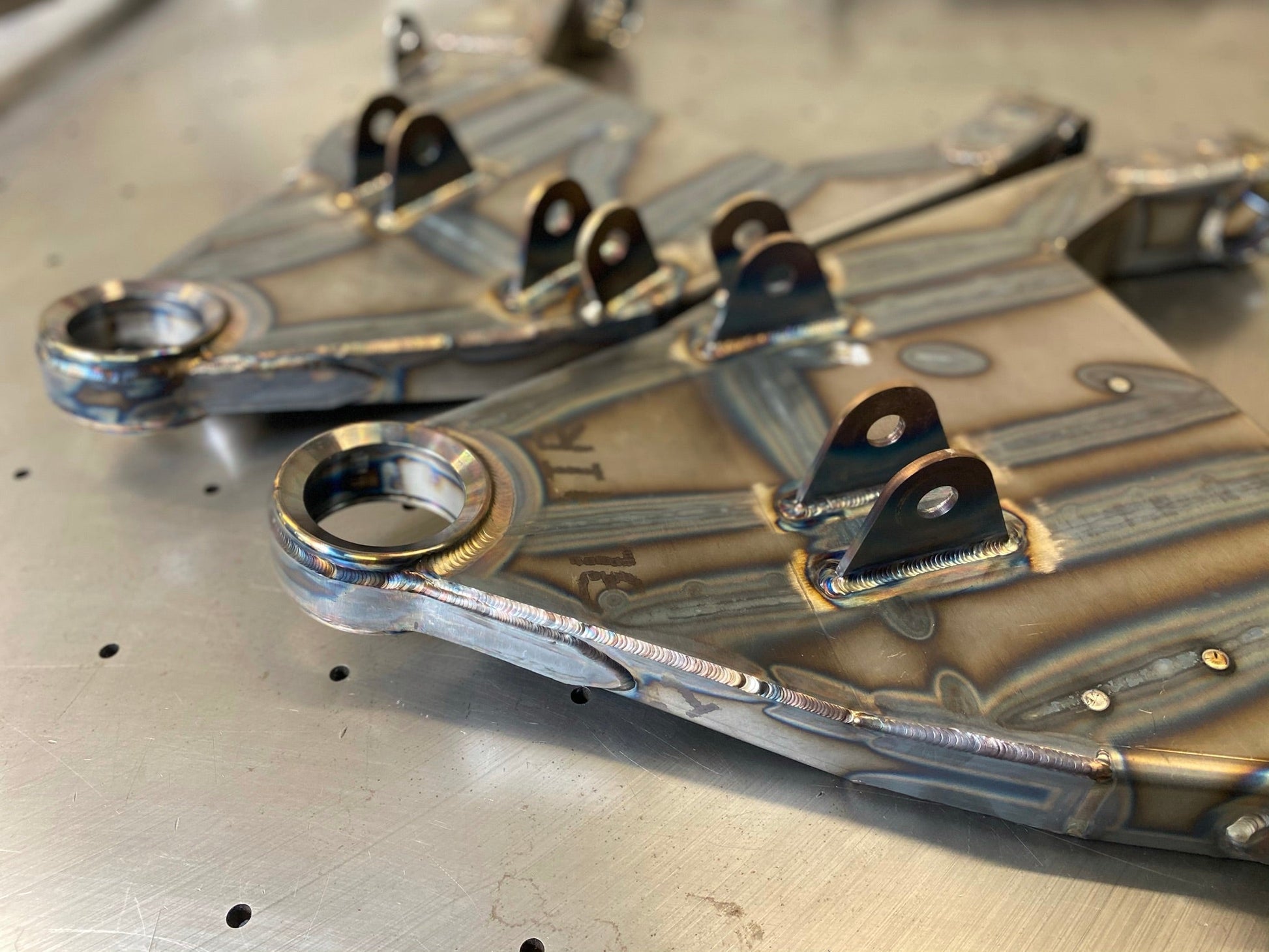

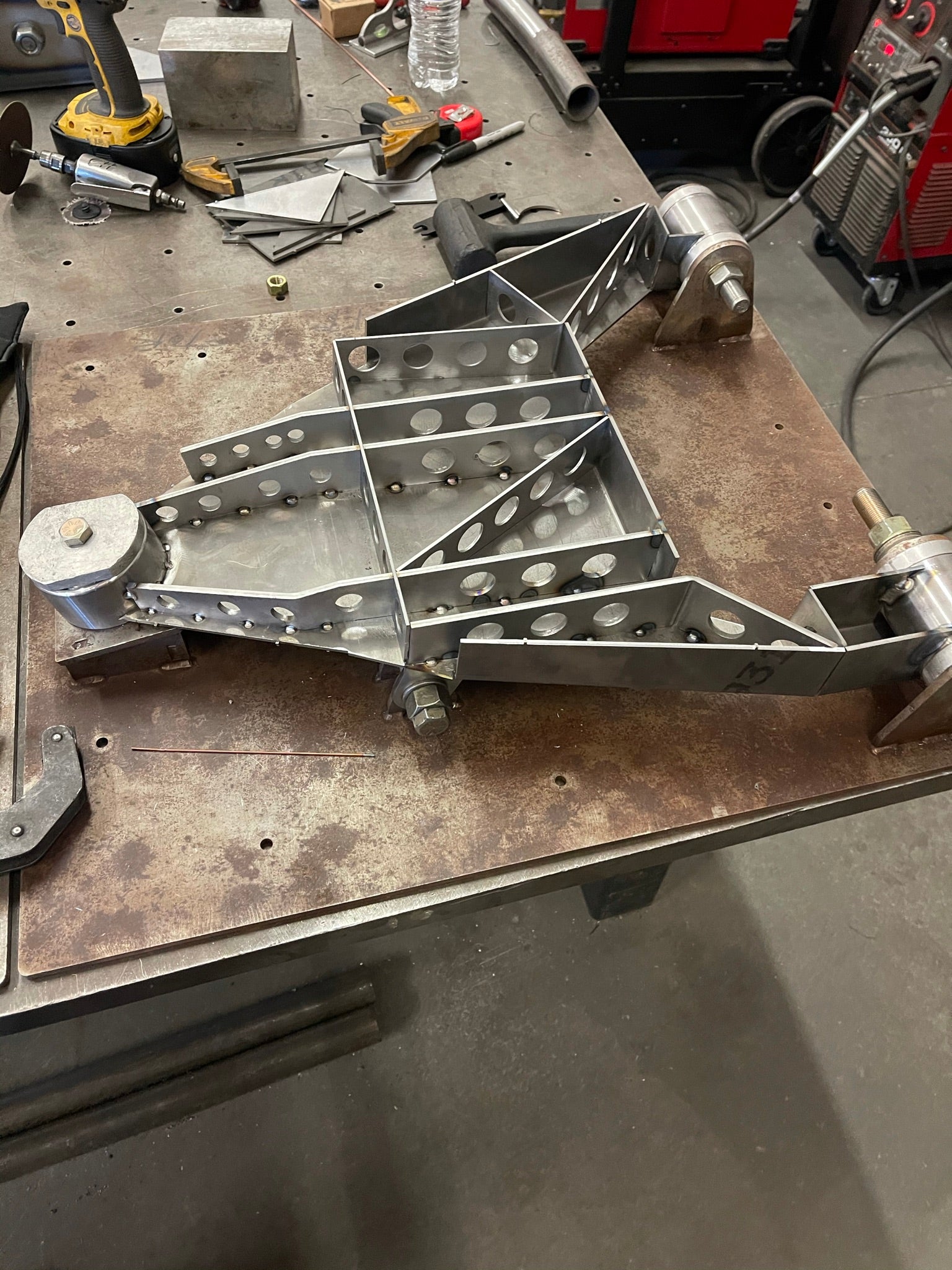

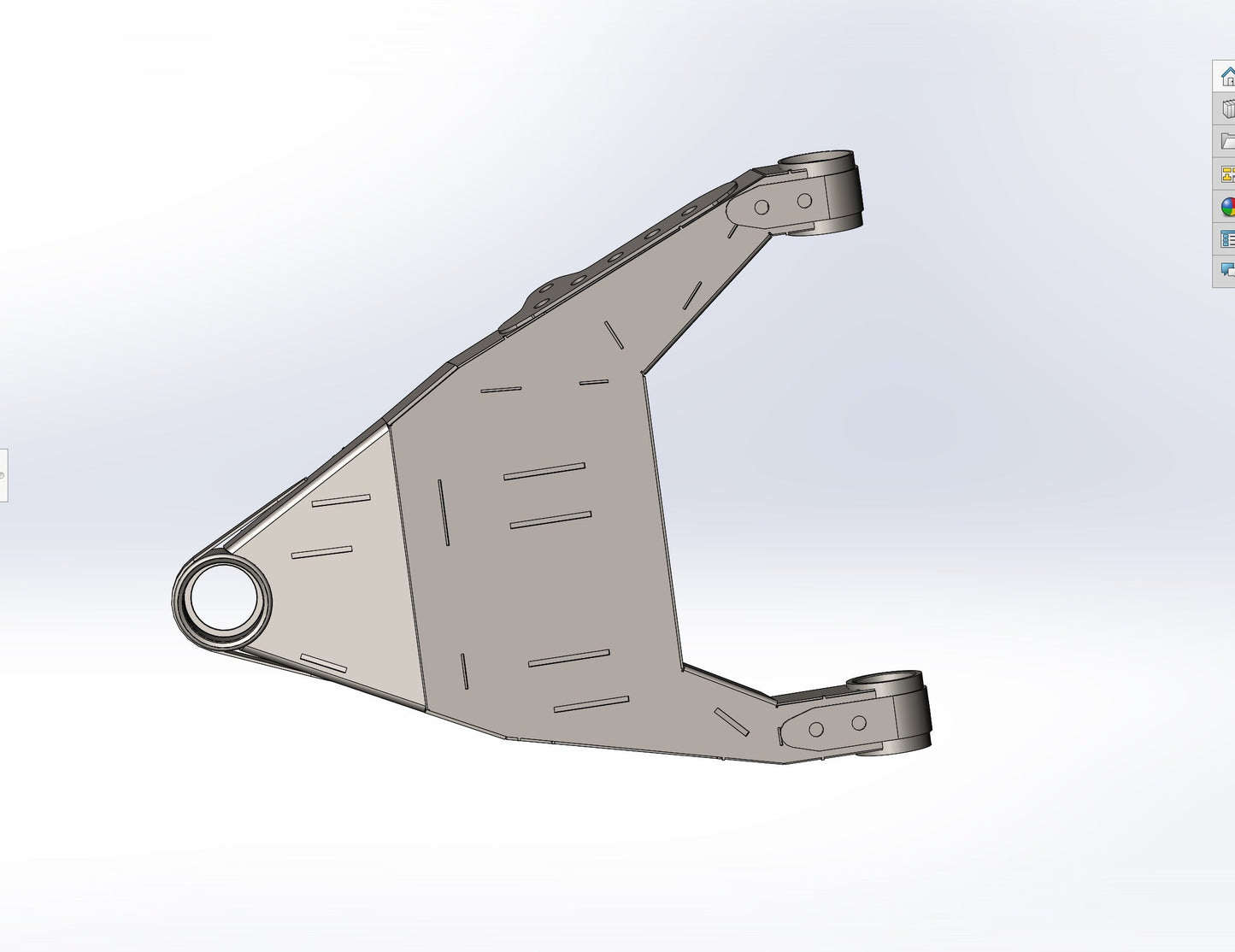

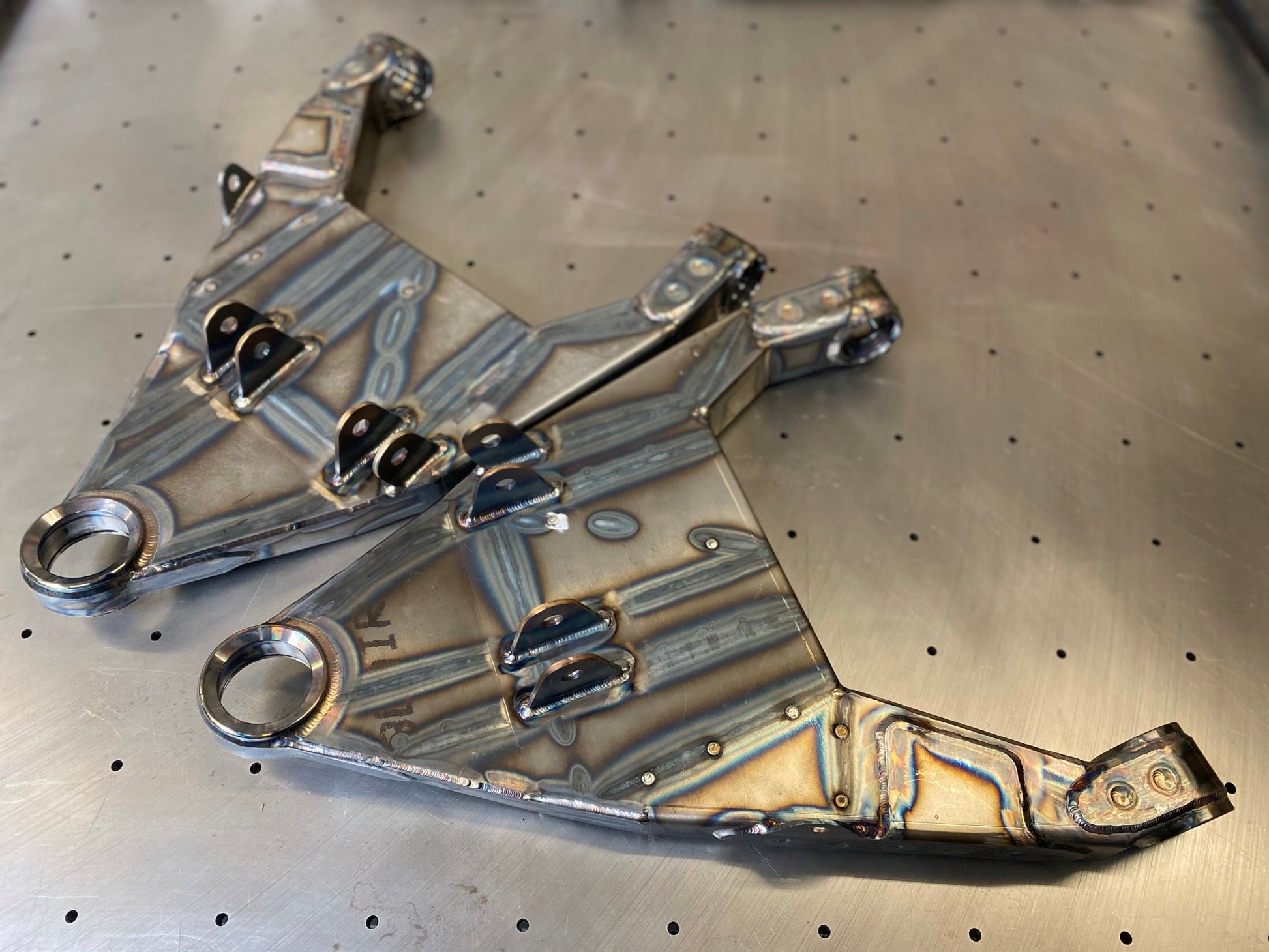

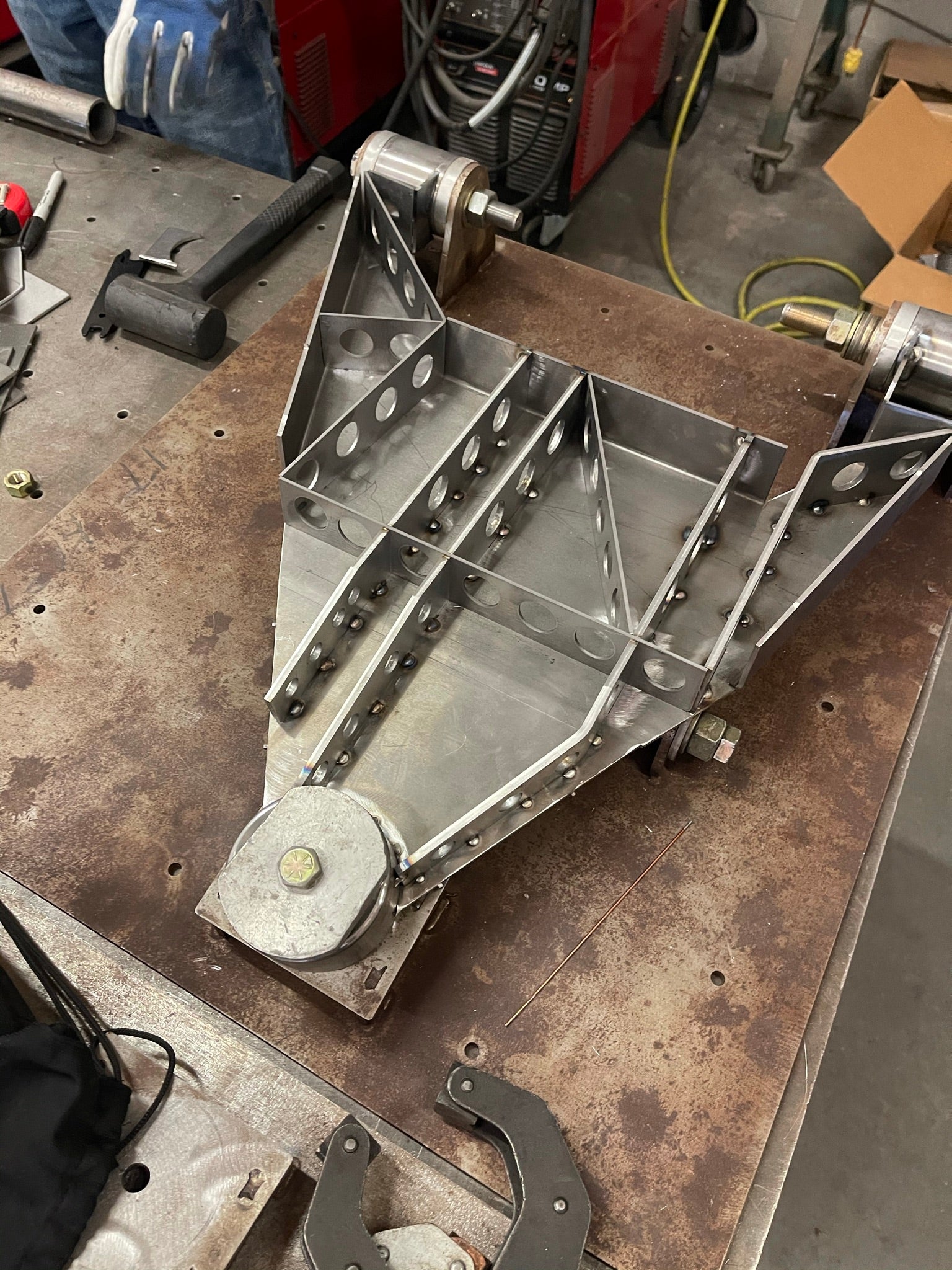

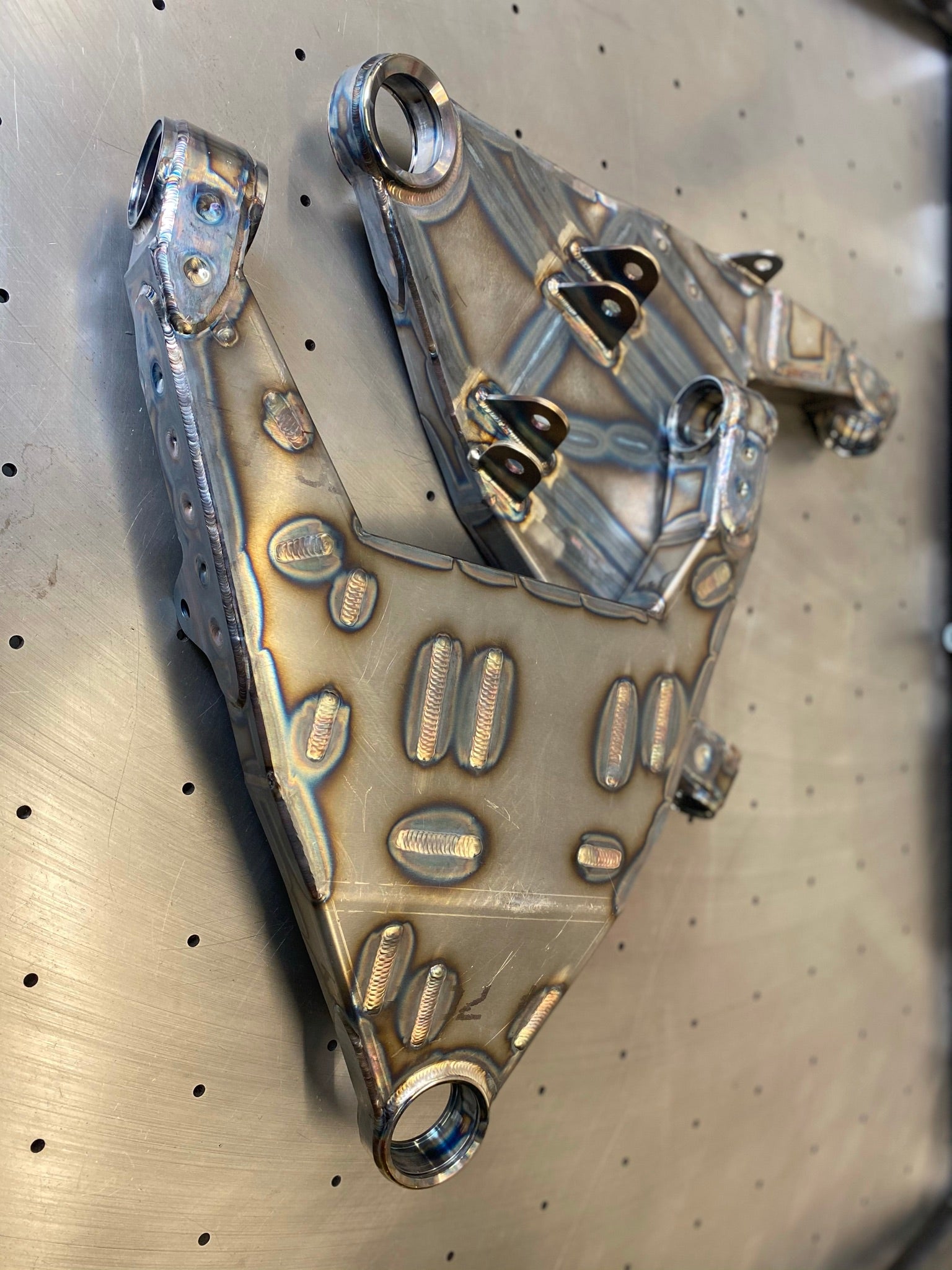

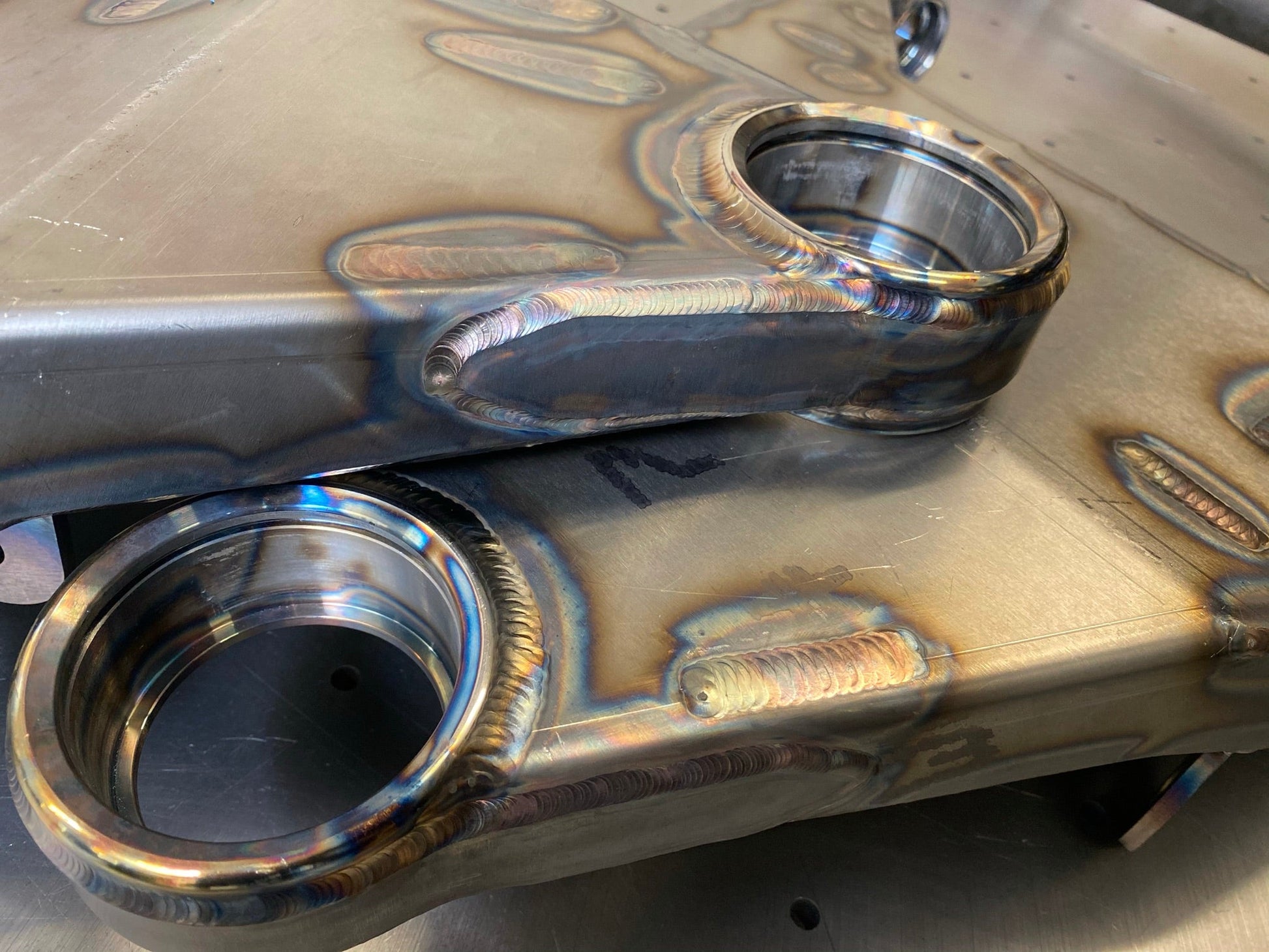

2 ea Lower A-arms with 1.5" uniballs, snap rings, and spacers

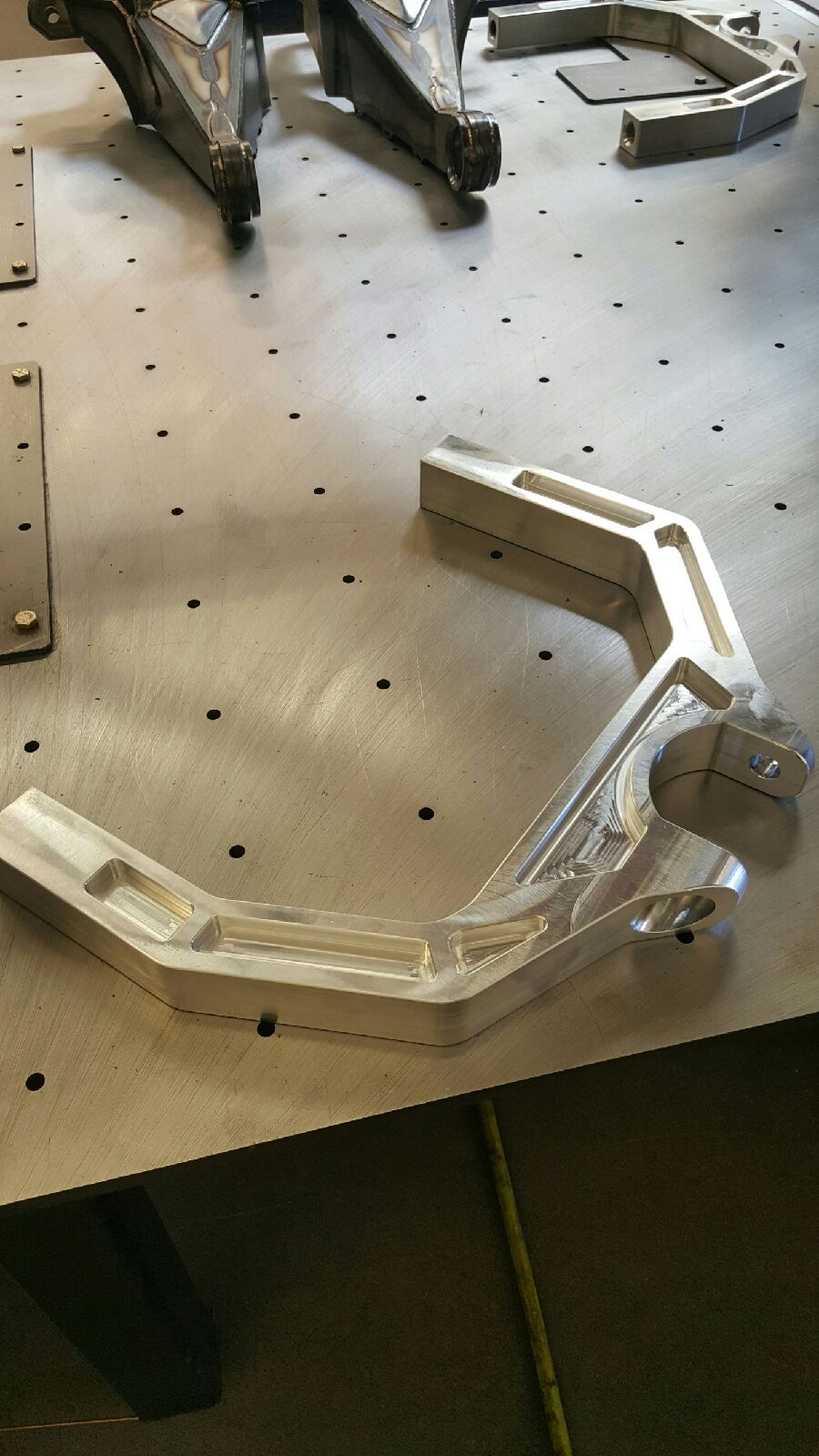

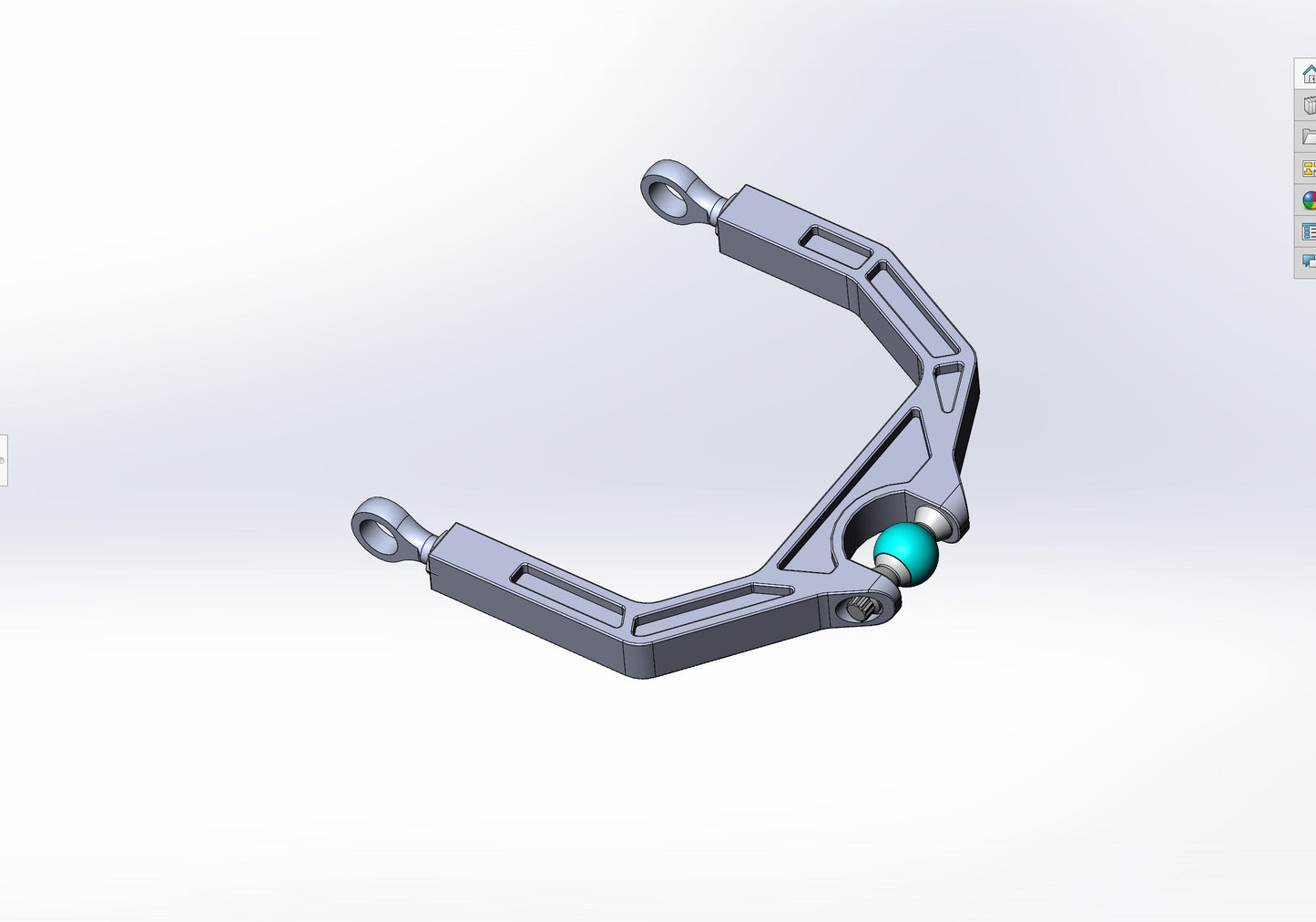

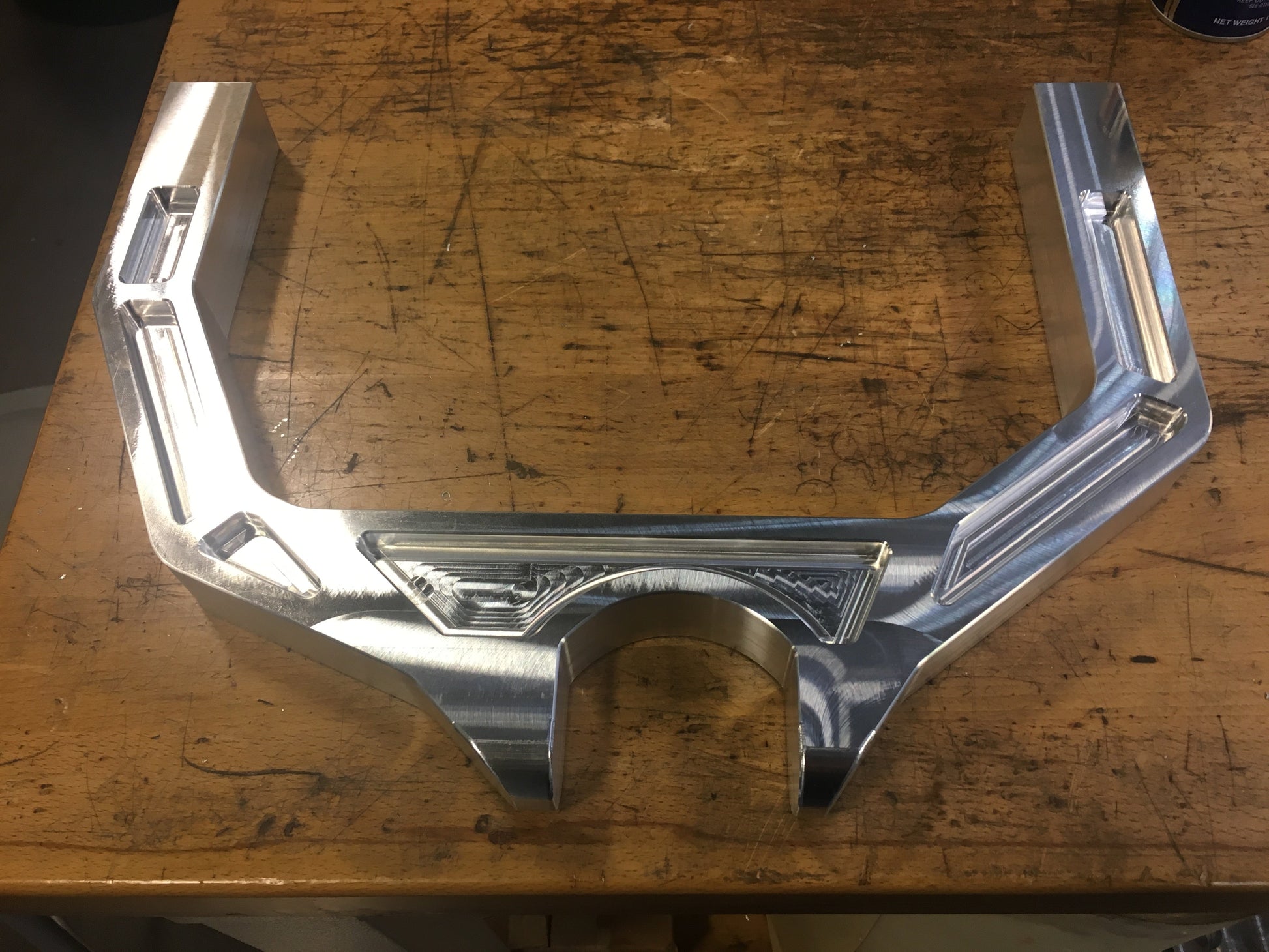

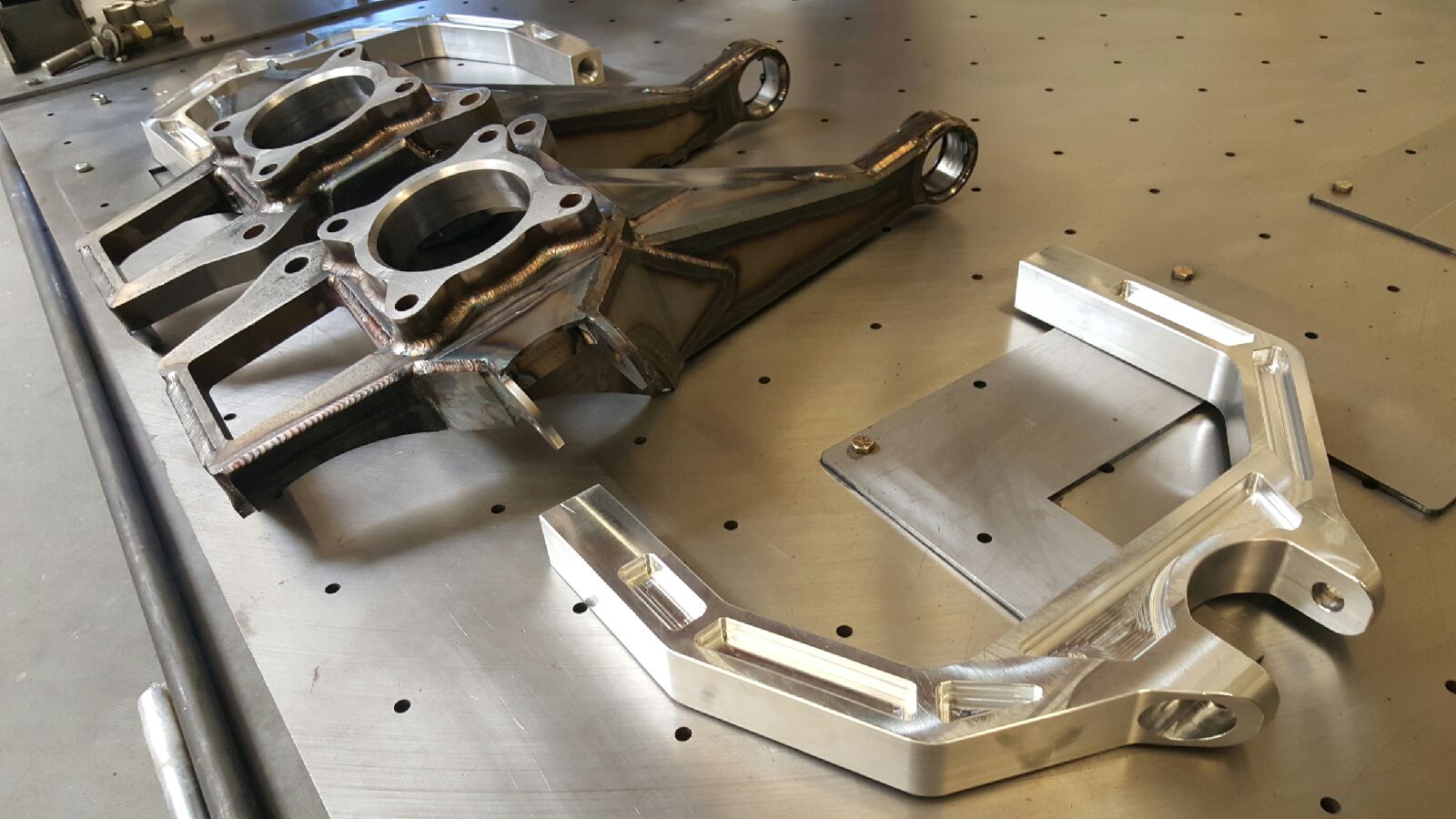

2 ea Upper A-arms with 7/8 rod ends and spacers

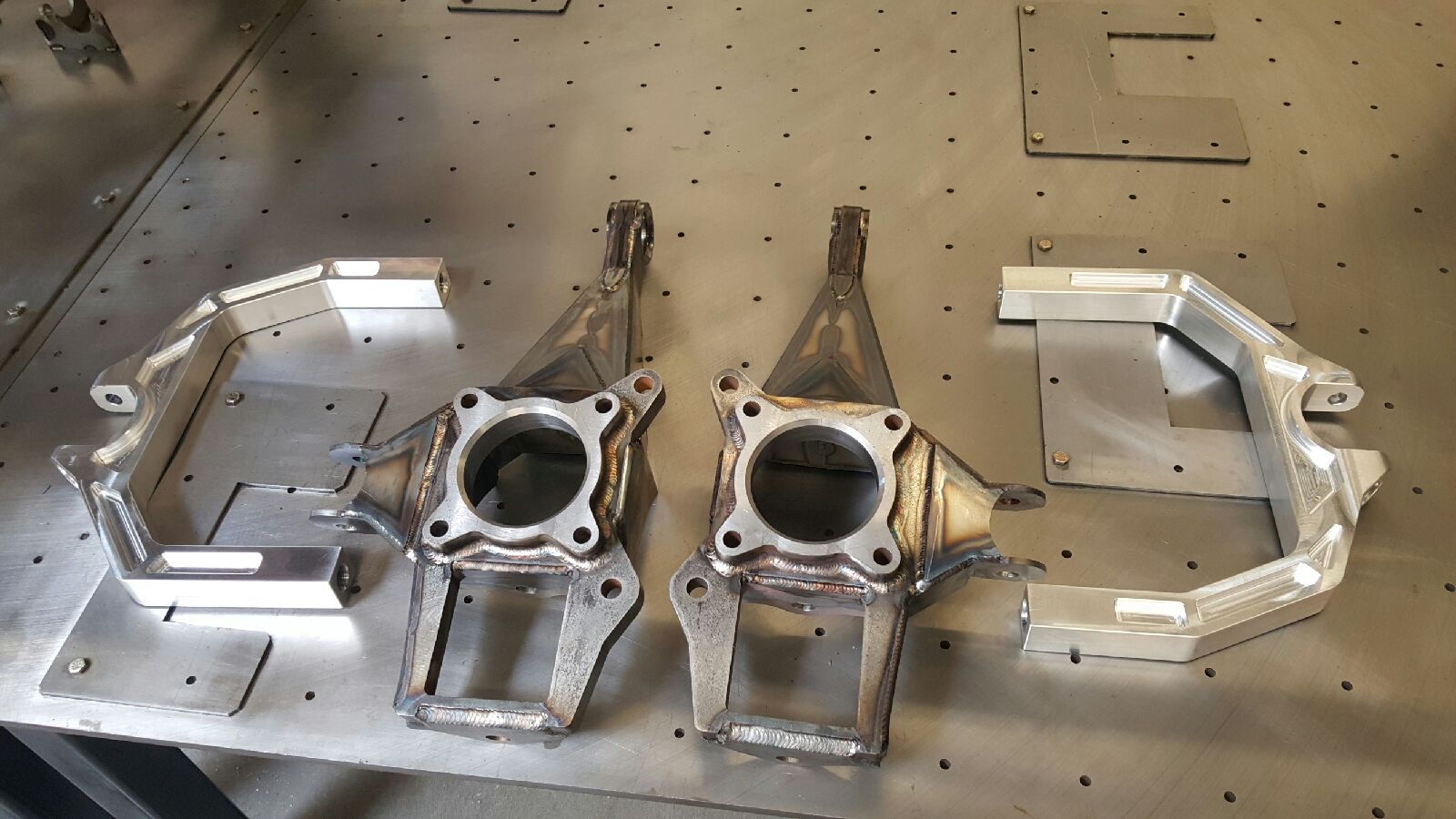

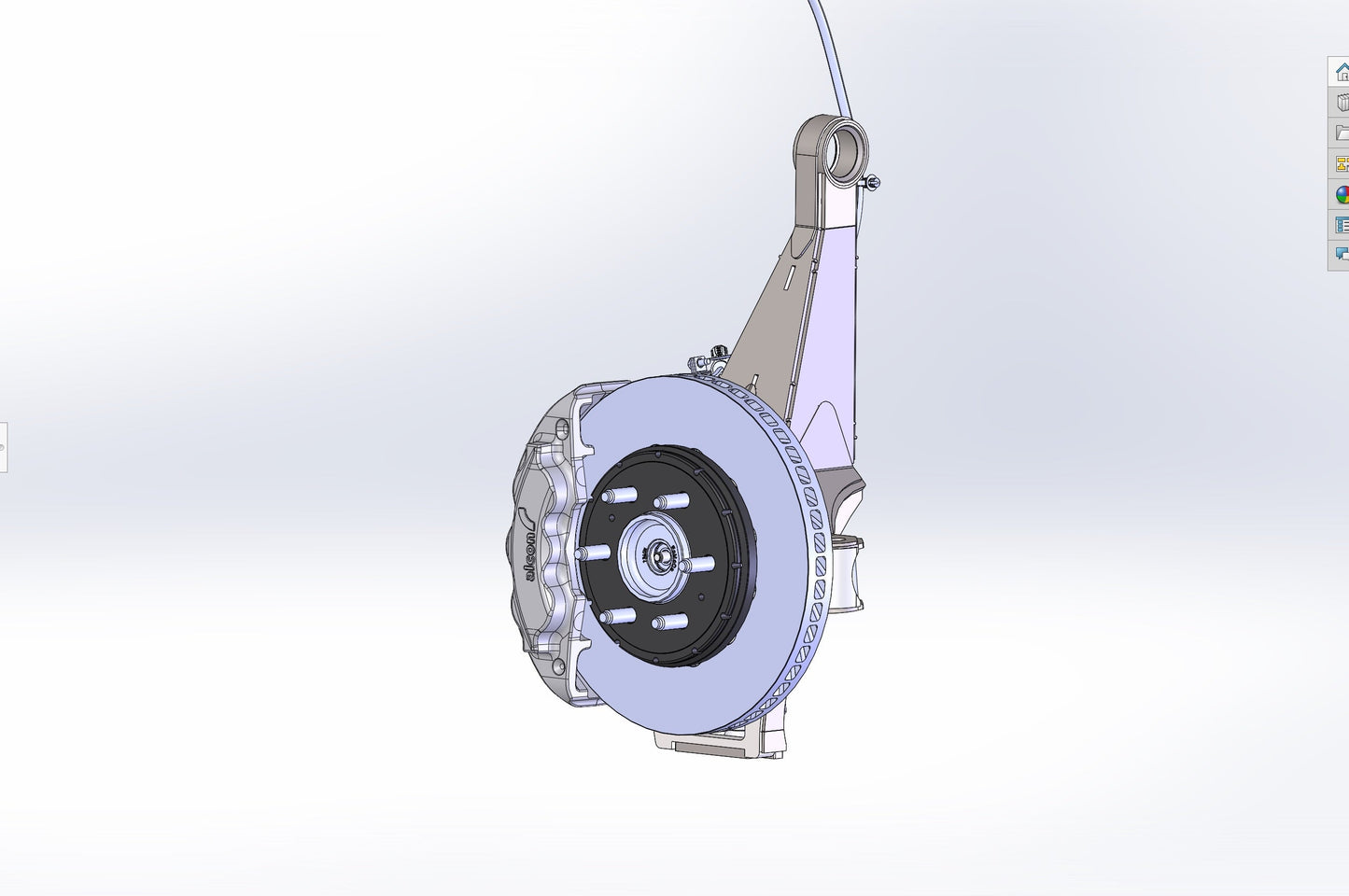

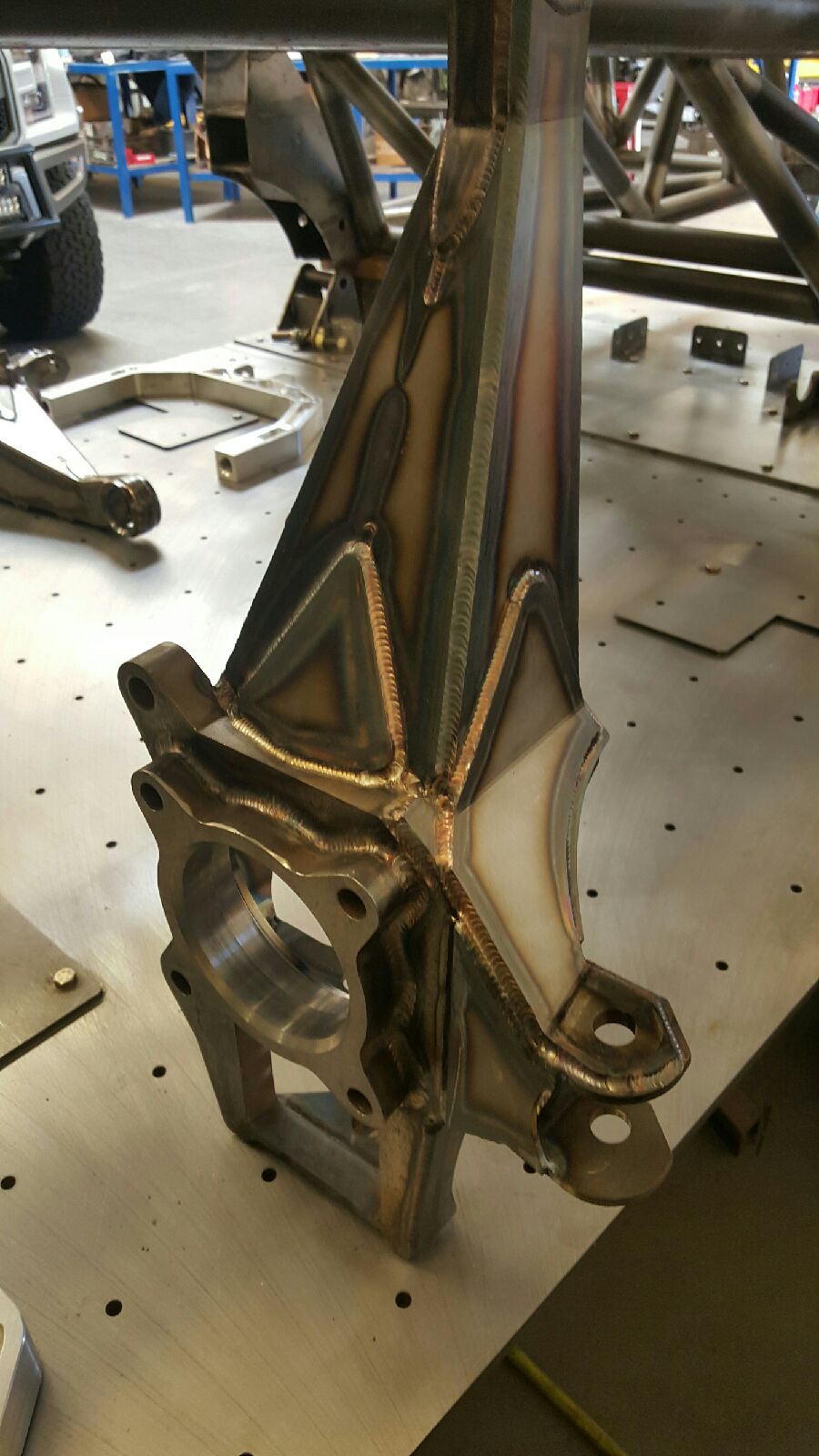

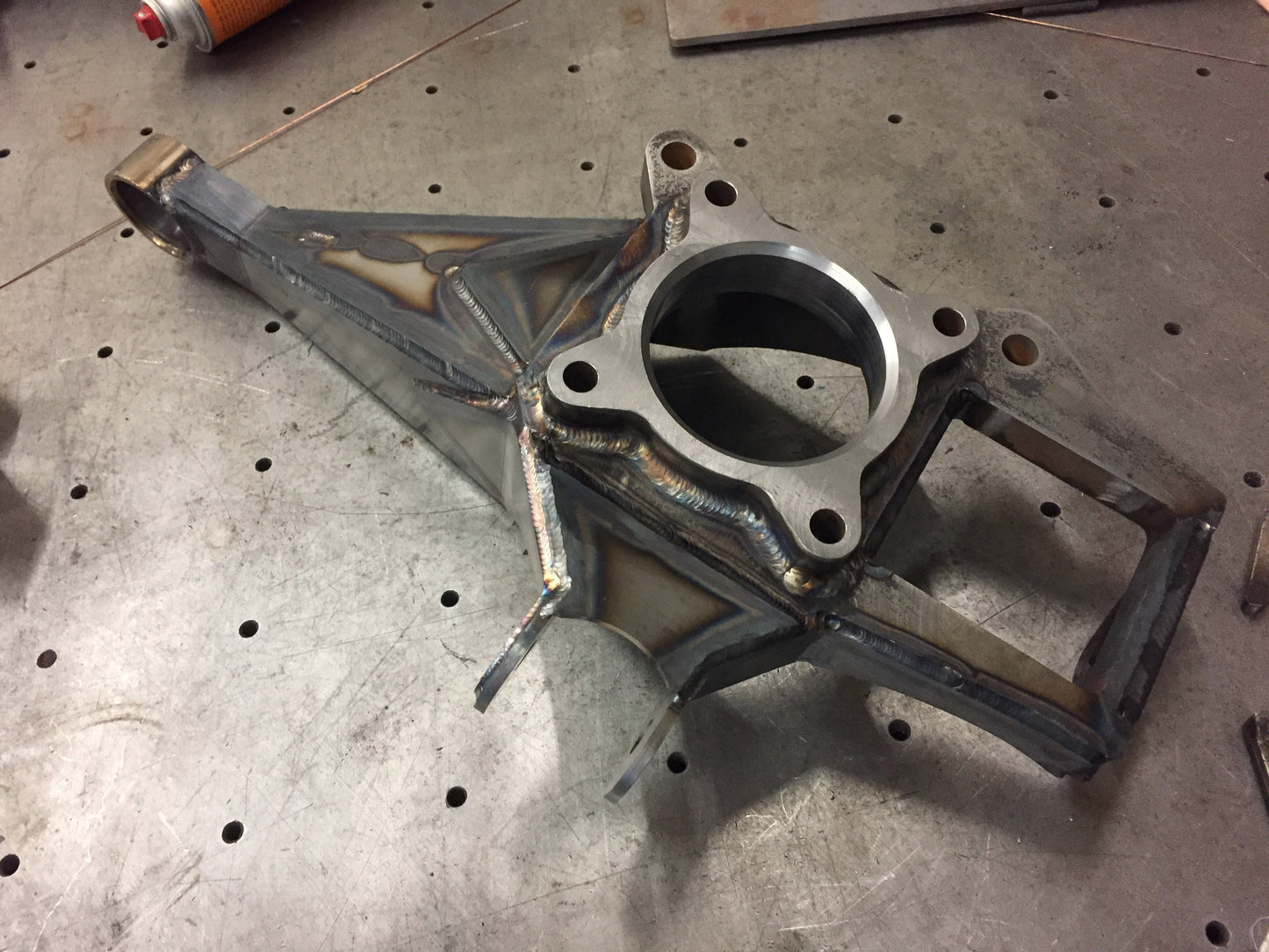

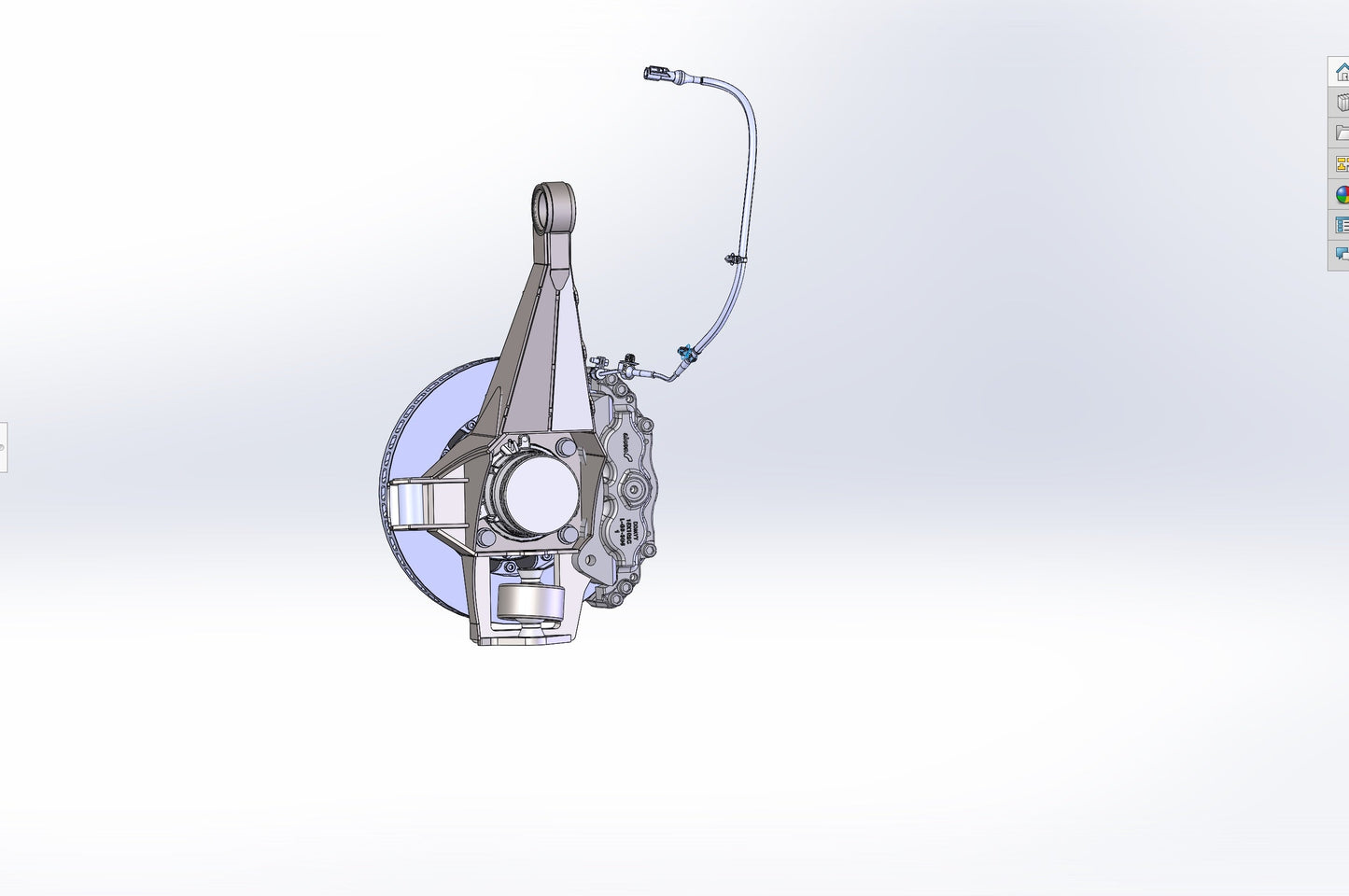

2 ea Fabricated upright (spindle) with 1" upper uniballs, snap rings, and spacers
1 set of Billet aluminum tie rods with rod ends and clevis for steering rack
1 set of extended axles to work with stock CV joints

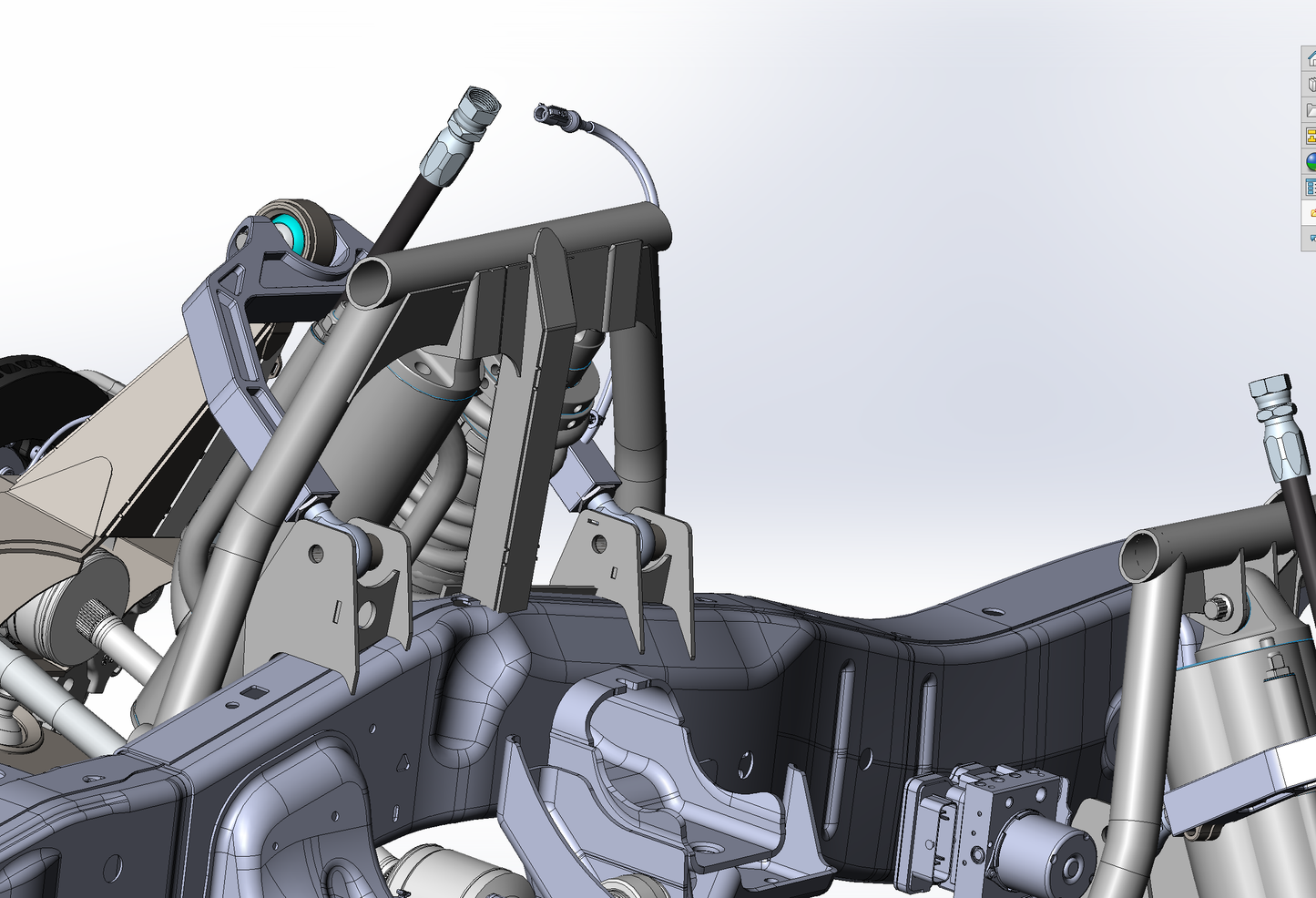

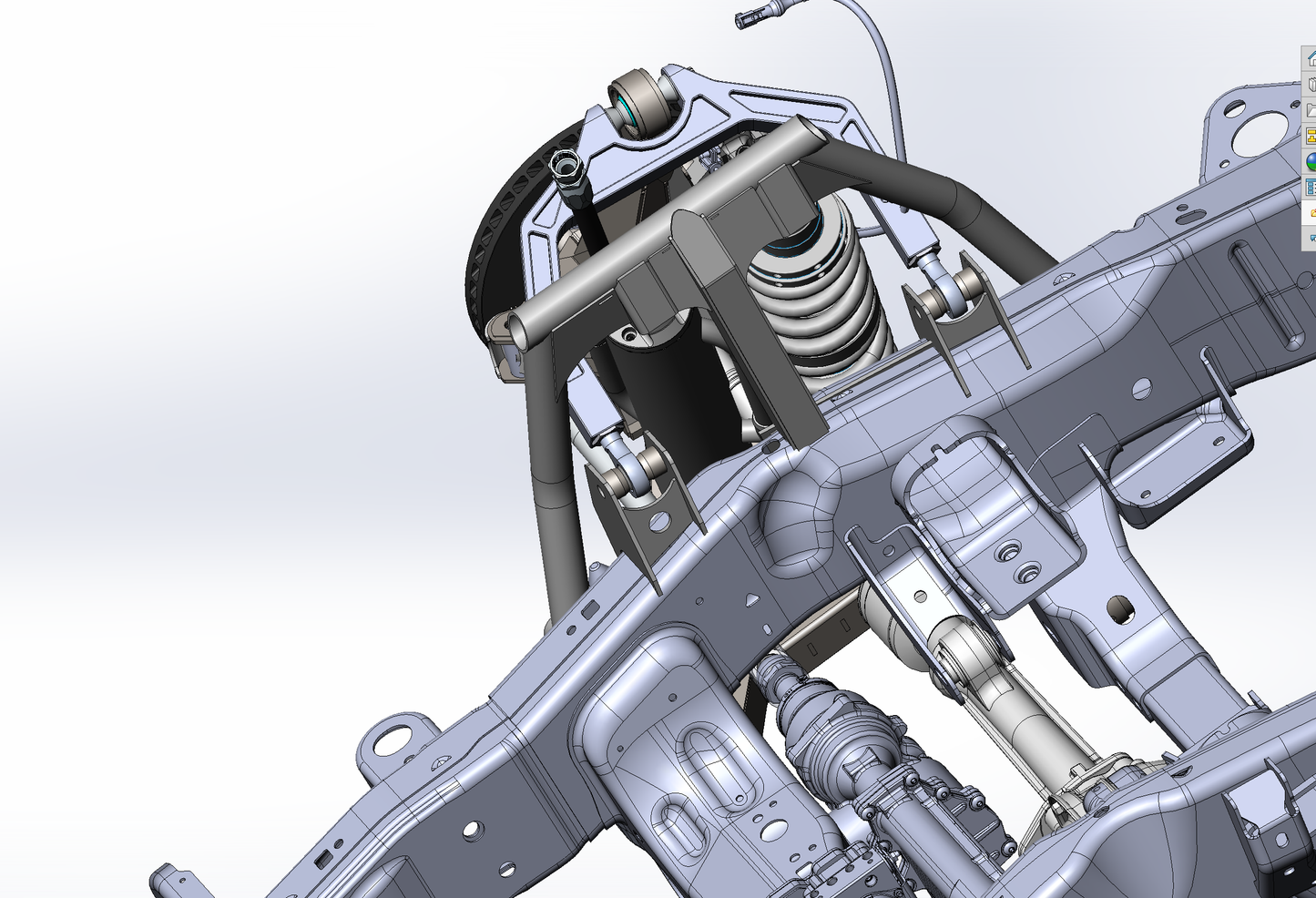

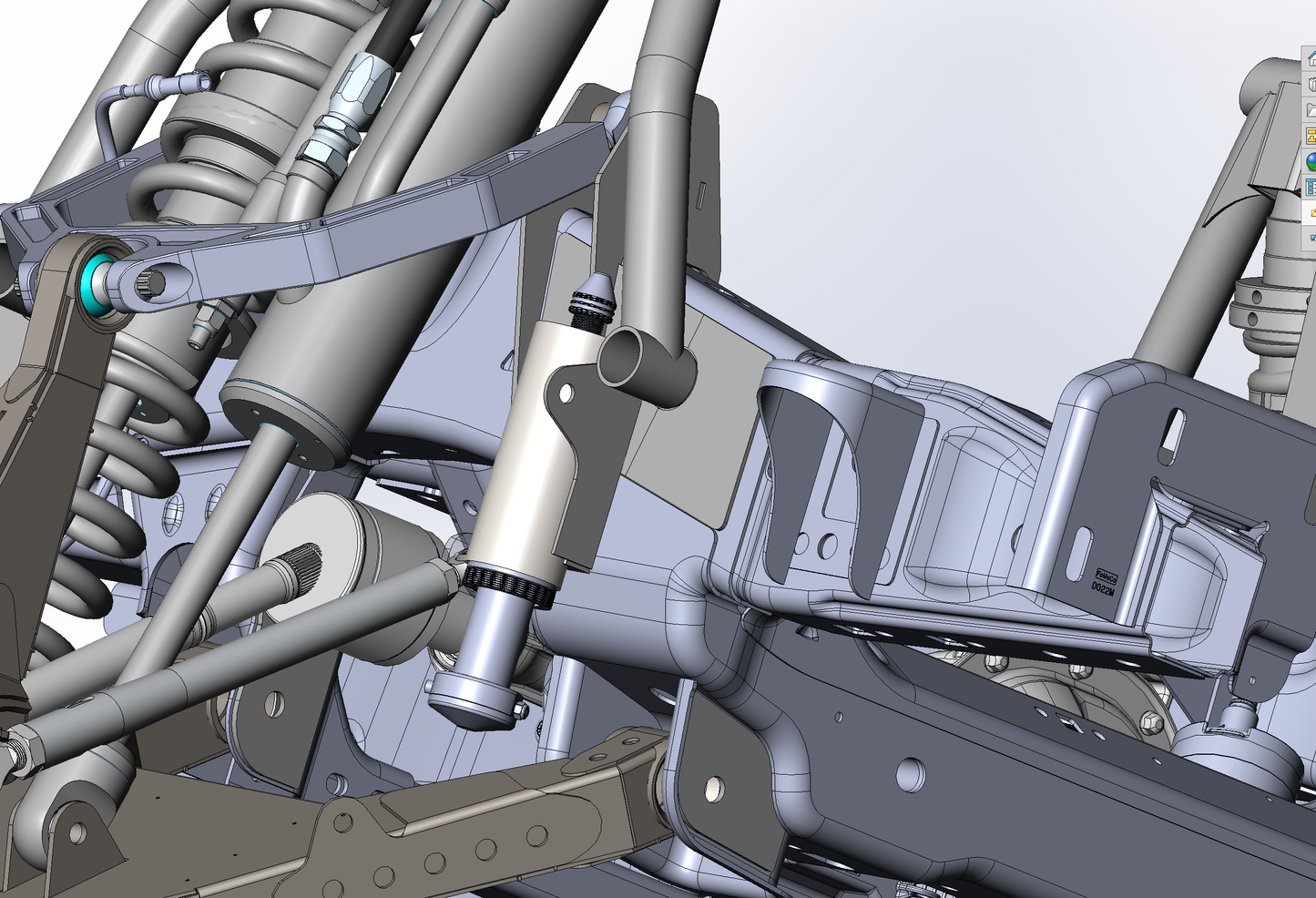

1 set of Frame mount for upper arm and shock tower
1 set of lower arm slot delete weld in plates for Gen 2

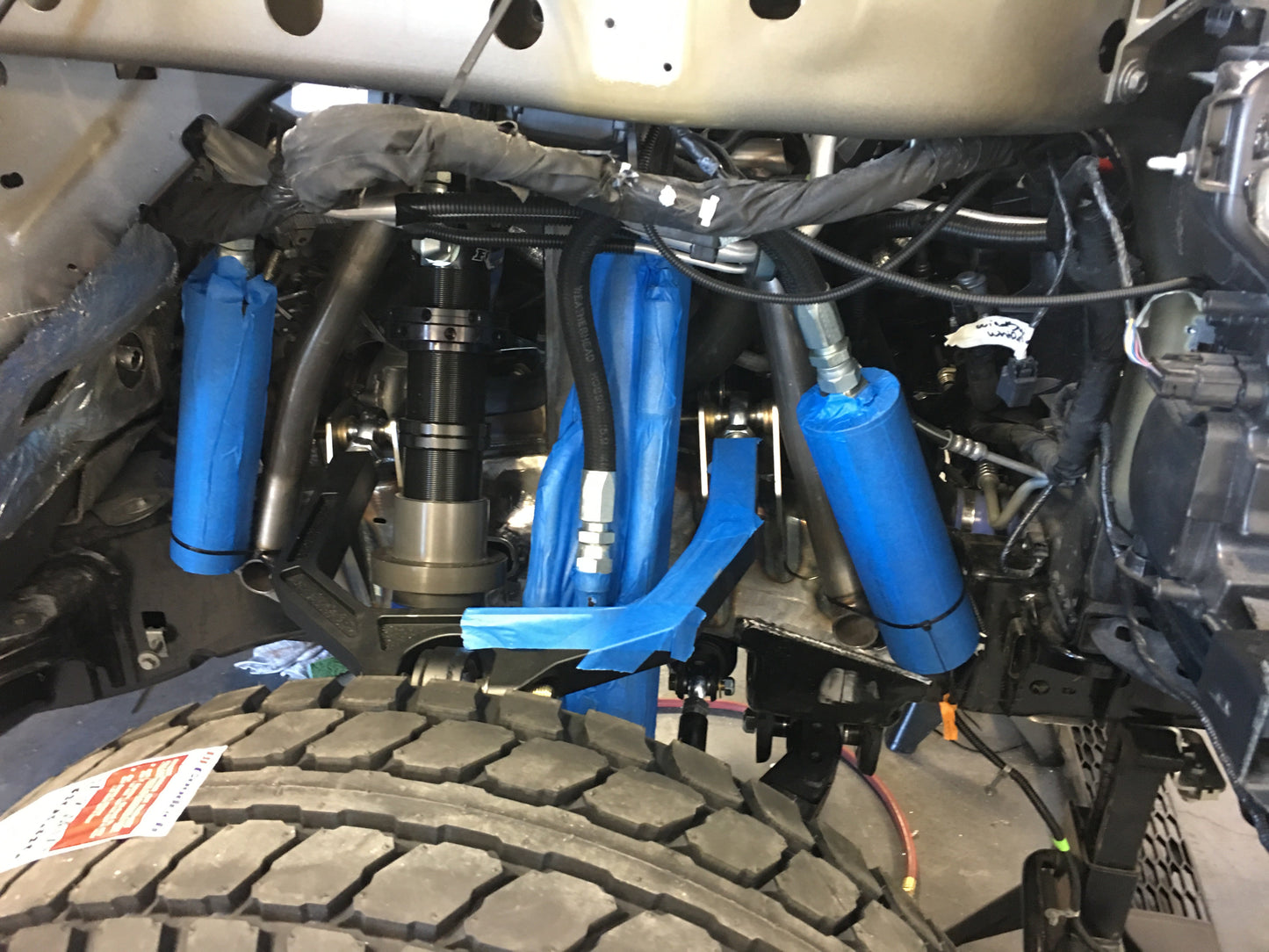

**** This kit requires cutting and welding and must be installed by a qualified fabricator.  call for details.
****  Shocks are not included in pricing and you must select which shock option you want to add to the kit
