2017-2023 Ford Raptor Xtreme-DI XDI - Direct Injection High Pressure Fuel Pump Upgrade

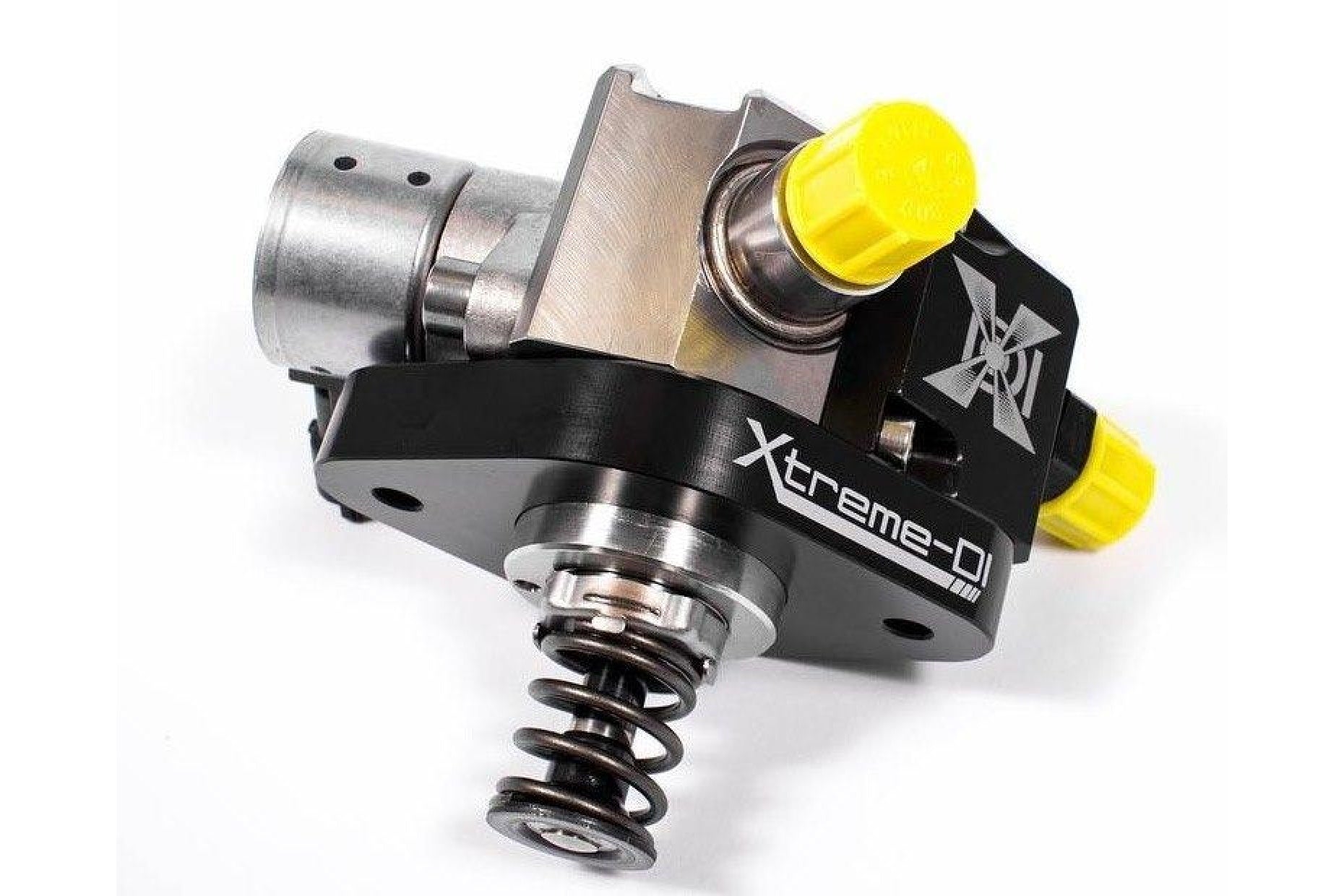

Xtreme-DI (XDI) Ford EcoBoost HPFP | Direct Injection High-Pressure Fuel Pump Upgrade For Ford EcoBoost

Upgrade your stock fuel pump and unlock your engine's true potential with the XDI Ford EcoBoost High-Pressure Fuel Pump. This upgraded fuel pump opens the tap so to speak, allowing your engine to get the fuel it needs when tuned beyond stock performance. This is especially important if you've installed upgrades like a Garrett Powermax turbo and a Full-Race intercooler.

*Some applications will have a pump option for the standard HPFP-35 upgrade or the highest flowing XDI-EVO pump.

Applications

This fuel pump fits in the following Ford EcoBoost vehicles:

• F-150
• Raptor
• Mustang
• Edge
• Fusion
• SHO
• Focus ST
• Explorer ST

Injection Pressure Comparison for Ford F150 3.5L Ecoboost V6

• OEM: 150bar / 2150psi
• XDI-HPFP-35: 200bar / 2900psi
• XDI-EVO: 240bar / 3500psi

Specifications:

• Application Maximum Rail Pressure: 240bar / 3500psi
• Fuel Compatibility: all known fuels, all Ethanol blends
• Electric Connector: Bosch Compact 2-pin
• Driver Profile: OEM
• Mechanical Data Geometric Volume: 1.58cc / rev (depending on cam lobe)
• Maximum Flow Rate: 200LPH (depending on cam lobe)
• Housing material: stainless steel hard coated
• Aluminum O-Ring material: Viton
• Cam-Lobe: 4×4.4mm (same for 2.3EB Mustang and Focus RS)

Performance Graphs for XDI's HPFP

Stock Fuel Pump

XDI Fuel Pump
