2017-2020 Ford Raptor Bedcage V1

This bedcage has been slightly redesigned and now comes with more tubing than pictured, but main structure is still the same. Pictures will be updated as soon as possible!

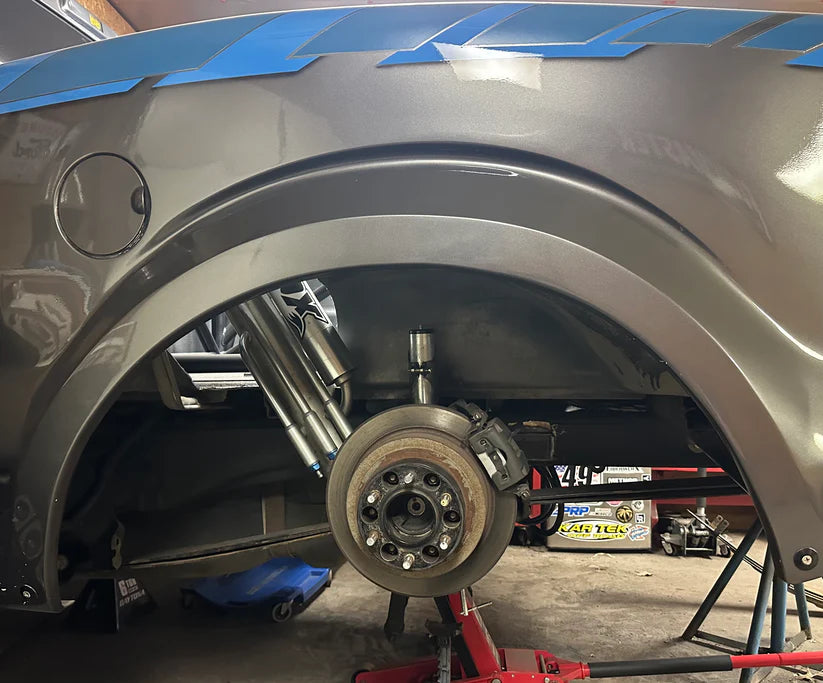

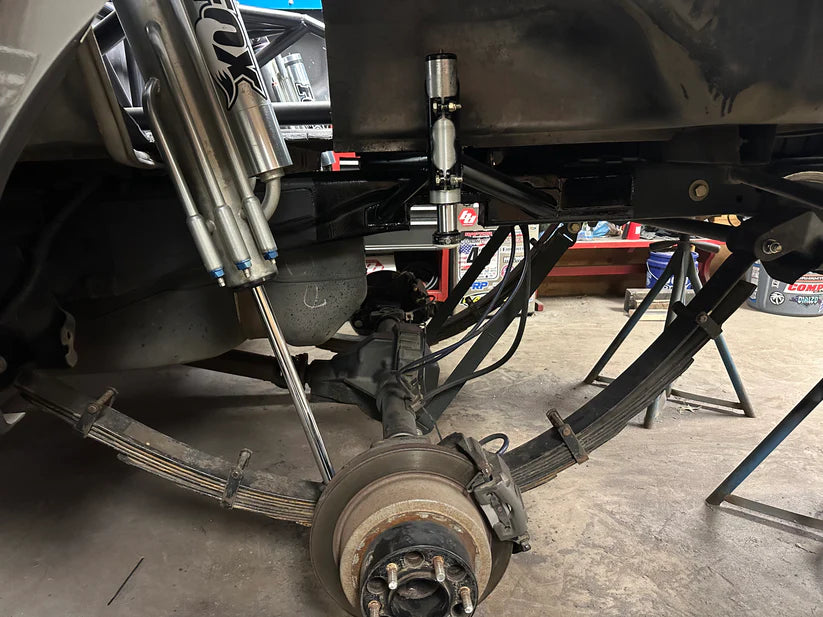

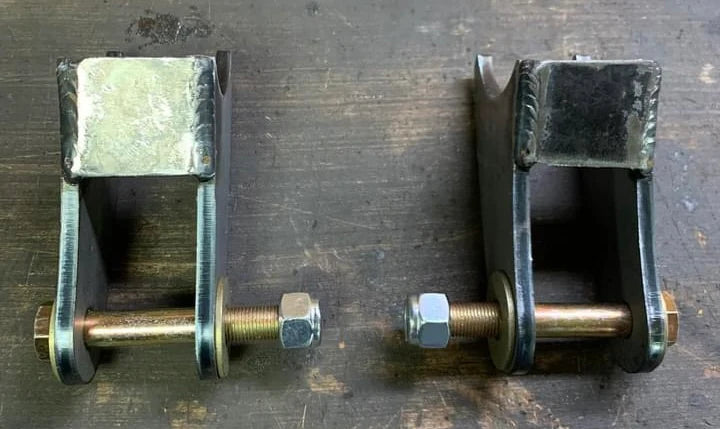

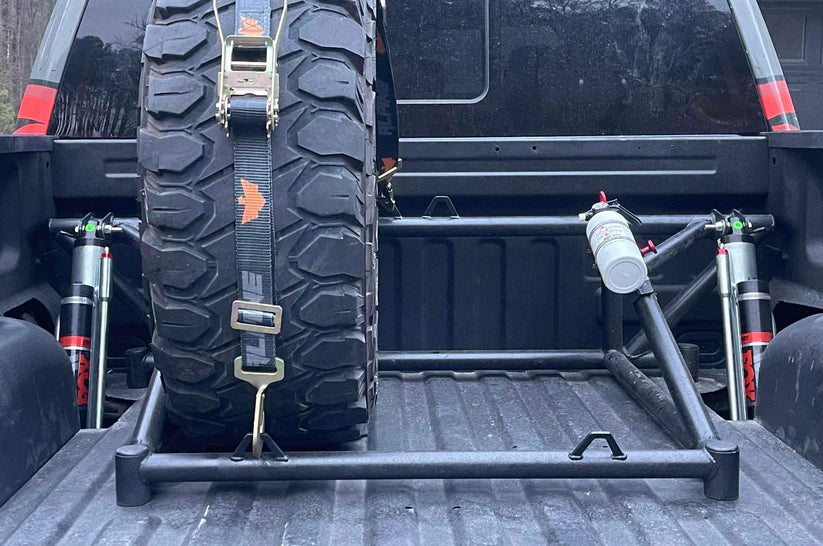

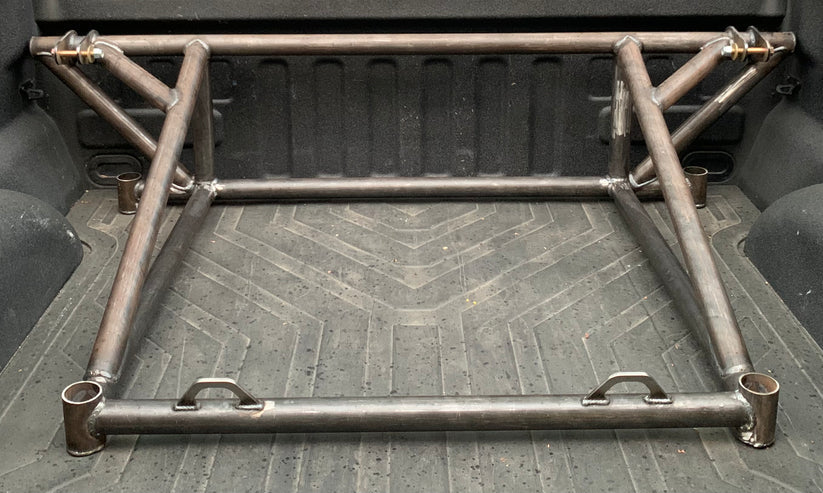

This is a bolt-in bedcage for 2017-2020 F150s/Raptors with the 5.5' bed, this is the V1 design option. Class 10.9 bed bolts, grade 8 shock bolts, plastic end caps, and weld-on axle tabs are all included. Bedcages are mig welded and made from 1.75" .120 dom tubing. They are designed for 16" or 18" stroke shocks and can hold two spare tires vertically. Tire separator tubes are optional. Installation requires cutting the stock shock mounts off the truck frame and axle. Longer brake hoses are required because of increased suspension travel. Cycling suspension to set axle tab location and to check for clearance is recommended. Wheel spacers may be necessary for tire/shock clearance with a F150 axle (Raptor axle is wider).

Shock Bolt Size - You can drill 1/2" out to 5/8" later if you're unsure! (2.5 and 3.0 shocks usually use 1/2" bolts, 3.5 and bigger usually use 5/8" bolts)
