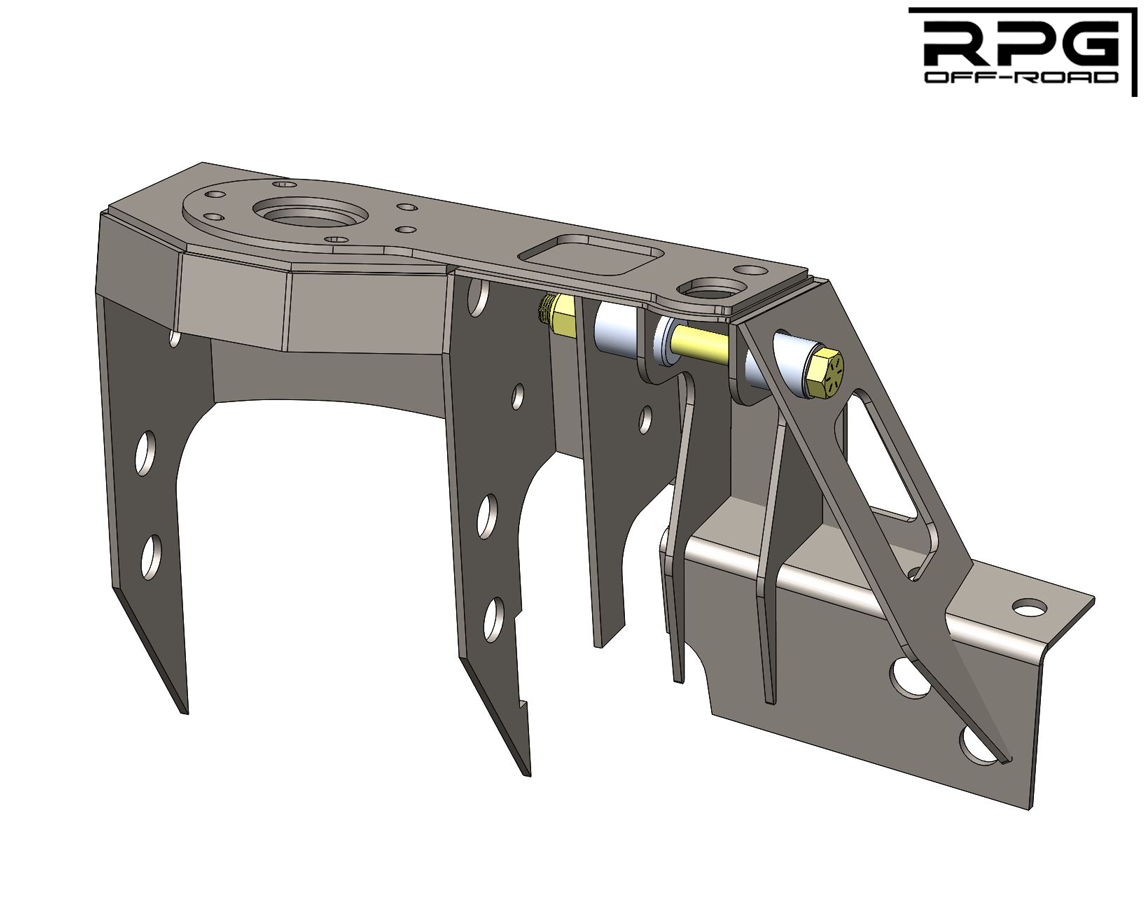

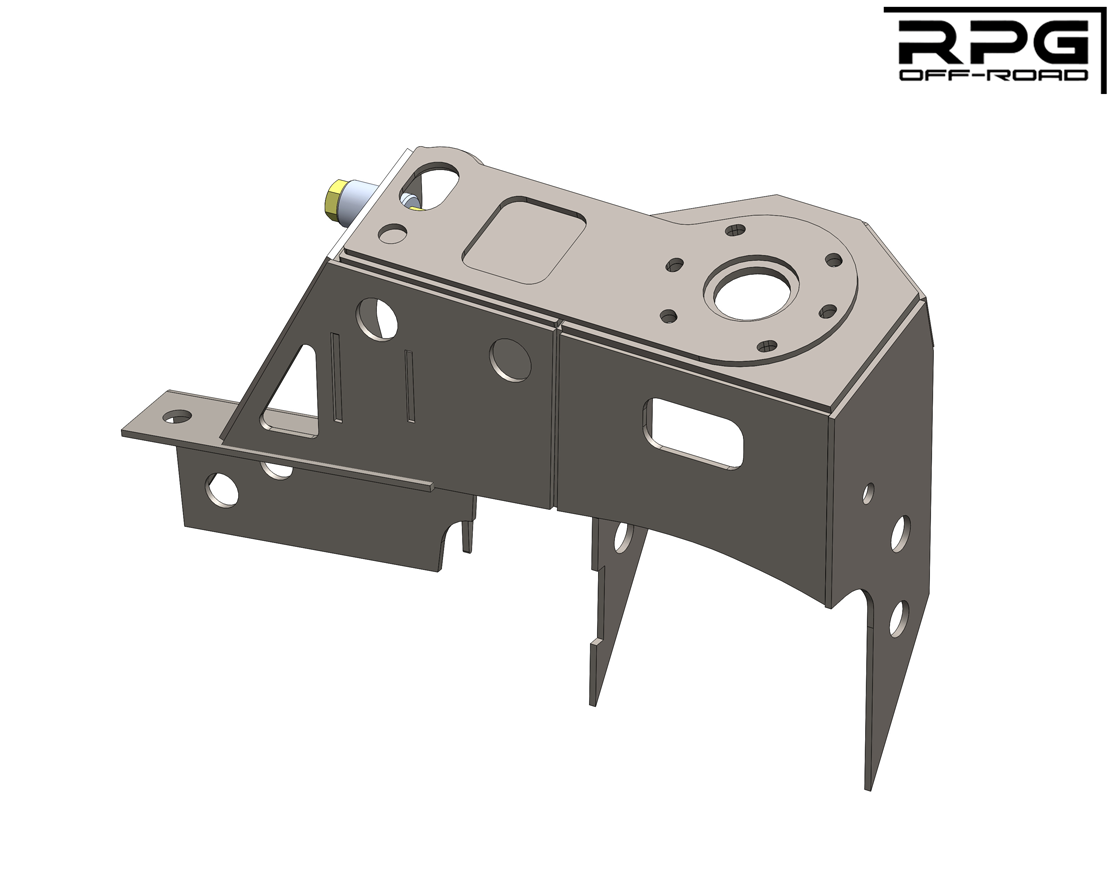

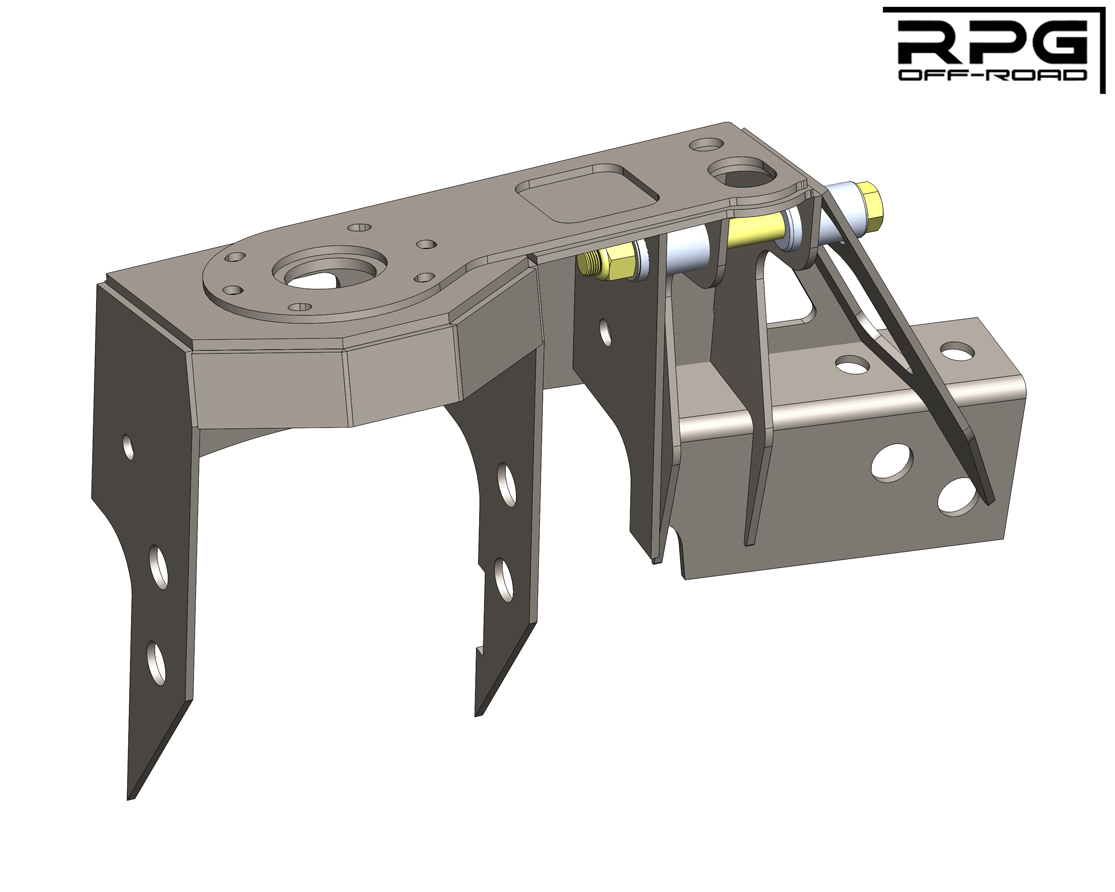

2010-2026 Ford Raptor Coil Buckets with Integrated Secondary Shock Mounts

RPG Offroad ’10+ Ford F150 Raptor Coil Bucket with Integrated Secondary Shock Mount

• Laser Cut in the USA
• 4130 Chromoly Steel
• Welded Prior to Shipment
• 100% Weld-On Application
• Integrates Secondary Bypass Shock Mounts
• Allows Use of Gen 2 Raptor Coilovers on 09+ F150’s and Gen 1 Raptors
• Includes Driver and Passenger Side

Throughout the years, the Raptor’s coil bucket has shown itself to be one of the prevalent areas of concern with many instances of cracking or breaking after some spirited driving. For the most part, when upgrading to a dual-shock setup in the front, customers would retain the factory coil bucket and add on our Dual Shock Mount setup which features a gusset plate for the frame and the mounting tower for your secondary shock. In some cases, customers would use a stand alone aftermarket coil bucket replacement, and still just add on our Dual Shock Mount setup. We didn’t think it should stop there, so we took things to the next level.

• Laser Cut in the USA
• Constructed from laser-cut 4130 Chromoly Steel, the buckets feature a combination of 1/4″ and 3/16″ thick plate
• Fully Weld-On
• Integrates the Secondary Shock Mounts
• Allows use of a Gen 2 Raptor Coilovers on 09+ F150’s and Gen 1 Raptors

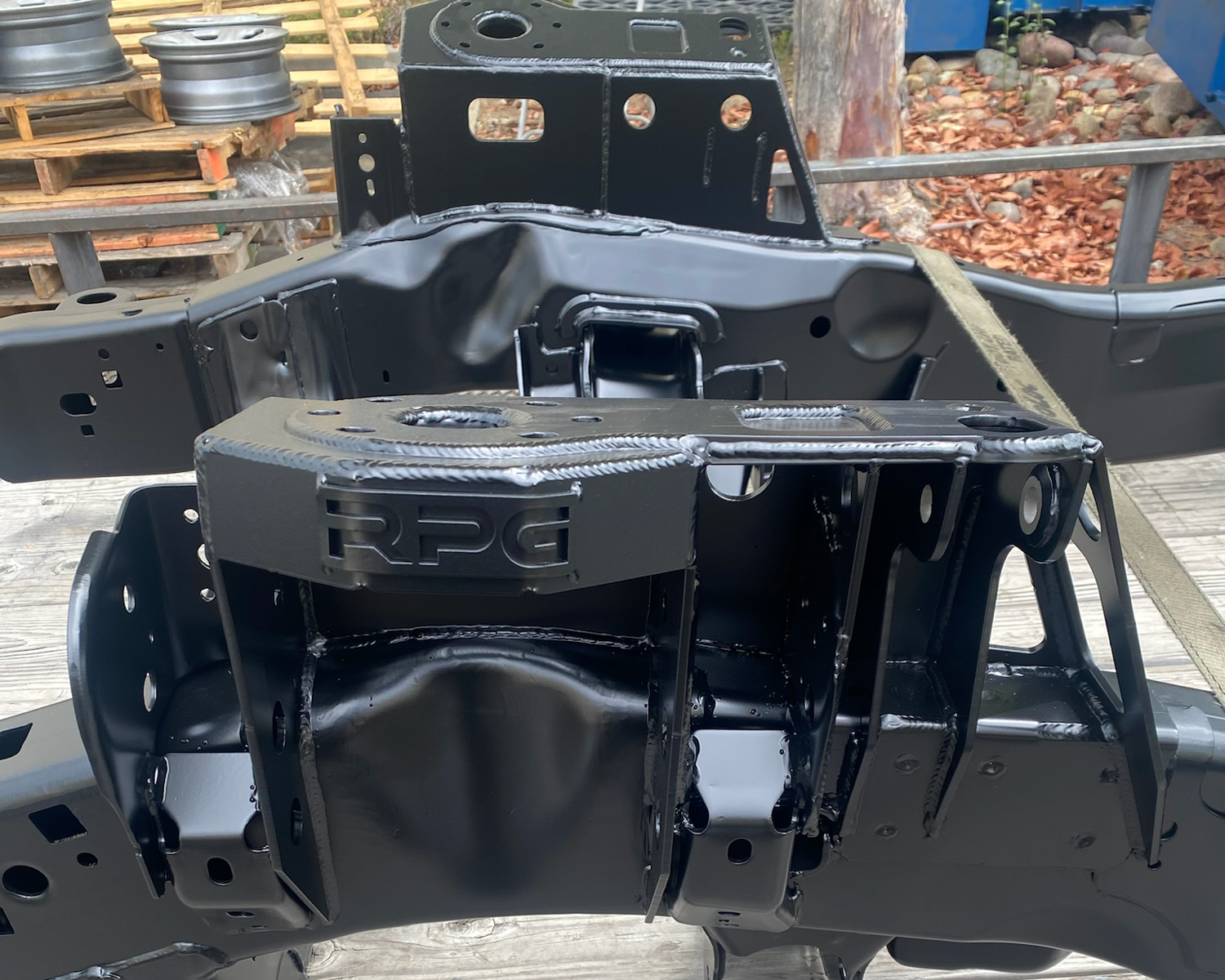

Now, this coil bucket setup will not be for everyone. It does require pulling the motor in order to get solid welds on the backside where the coil bucket connects to the frame. If you are already planning to pull the motor, or have the means necessary to do so, this coil bucket kit will be a no brainer.
