2010-2014 Ford Raptor FOX 3.0 Rear Shock Pair

2010-2014 Ford Raptor FOX 3.0 Rear Shock Pair

Regular price $3,499.95 USD
Regular price Sale price $3,499.95 USD
Sale Sold out
Shipping calculated at checkout.

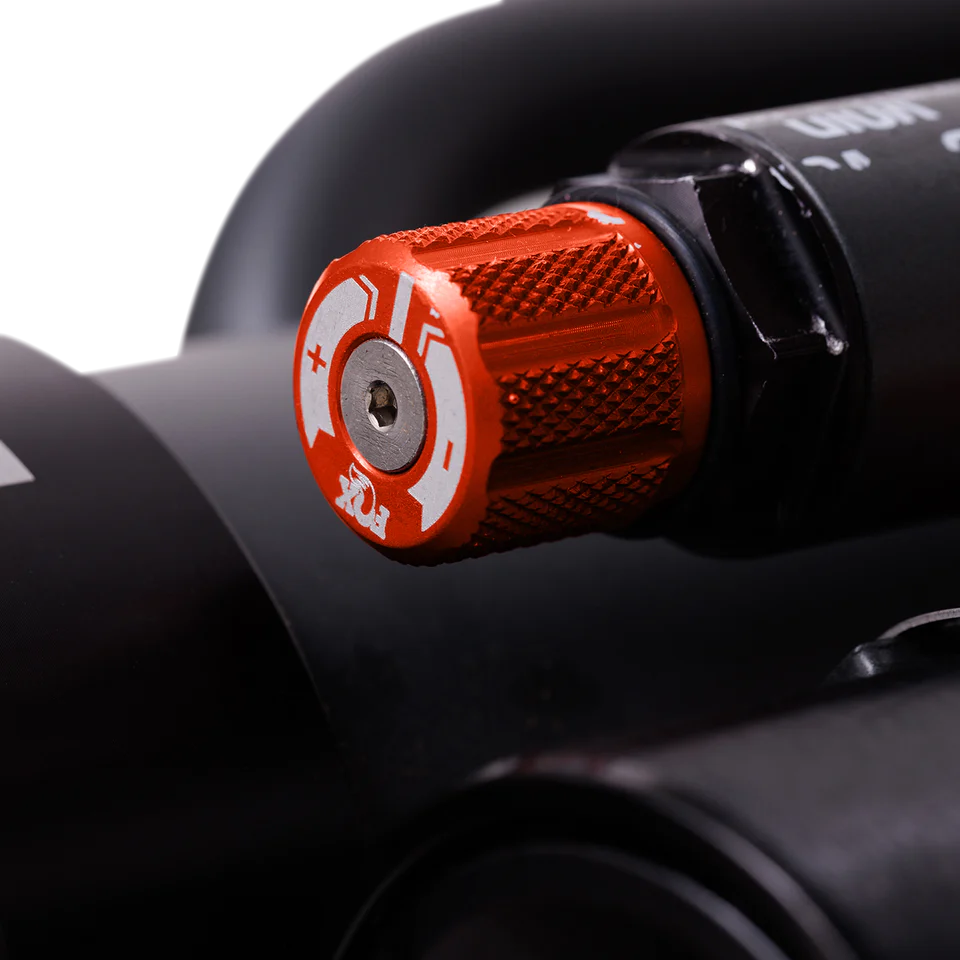

These adjustable rear shocks feature QAB adjusters which allow you to adjust your compression and rebound with your fingers. Extremely convenient and ready to hit the trails.

At FOX, racing has always been the cornerstone of our product development. Our Factory Race Series 3.0 External Bypass, position-sensitive shocks maximize the entire wheel travel, increases oil capacity, and adds 60% more damping area over the stock FOX SVT shocks. The Factory Series 3.0 Bypass shocks were developed with three independently owner tunable bypass zones for complete ride control regardless of terrain conditions. They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use.

These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on to your factory mounts. Large 2.5 inch remote reservoirs increasing the shocks cooling capabilities. The Factory Race Series 3.0 External Bypass shocks utilize all of the same components from our race winning Trophy Truck shocks with steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals. Pair these shocks with aftermarket leaf springs and bump stop kits to unleash the SVT Raptors true off-road capabilities.

FEATURES

Performance Tuned For Vehicle Specific Application
Cerakote Plated Seamless Alloy Body
External Reservoir System Dissipates Heat Fast
Black Anodized CNC Machined Aluminum Components

SERIES Factory Race
TRAVEL 11.42
BODY 3.0" Smooth bore and honed seamless alloy body
BODY PLATING Cerakote Finish
RESERVOIR 2.5" Smooth bore and honed seamless alloy reservoir
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 7/8" 17-4 H900 stainless steel hard-chrome plated
PISTON 6061-T6 hard-anodized, high flow aluminum piston
VALVING Application specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal High temperature Viton seals
BEARINGS PTFE-lined, heat-treated, alloy steel spherical
EXTENDED LENGTH 29.35
COMPRESSED LENGTH 17.93
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
