2004–2008 Ford F-150 IWE Silicone Vacuum Line Replacement

Permanent silicone vacuum line replacement for the Ford F-150 IWE system. Fixes common vacuum leaks that cause hub grinding and unreliable 4WD on 2004–2008 F-150 4×4 trucks.

Finally — a real fix for Ford F-150 IWE grinding noise and vacuum system failures.

If your 2004–2008 Ford F-150 is making grinding or ratcheting noises from the front hubs, or your 4WD engages inconsistently, the problem is usually somewhere in the IWE (Integrated Wheel End) vacuum system.

Three components commonly fail in the IWE system:

• Vacuum lines

• IWE hub actuators (wheel ends)

• Vacuum solenoid

When any of these fail, the vacuum is lost or unstable, allowing the hubs to partially engage, which causes grinding noises and unreliable 4WD operation.

Vacuum line failure is by far the most common failure point, and it should always be inspected and replaced first before replacing hubs or solenoids.

✅ The Problem

Factory IWE vacuum lines are made from vinyl around the engine compartment and are exposed to:

• Constant engine bay heat cycling

• Vibration and suspension movement

• Moisture and road debris

Over time, the vinyl hardens and cracks, leading to vacuum leaks that cause:

• IWE grinding or clicking noises

• Front hubs not fully engaging or disengaging

• Intermittent or unreliable 4WD operation

Once the vacuum system leaks, the IWE system can no longer operate correctly — and prolonged vacuum leaks can eventually damage the IWE hub actuators.

✅ The Infinity Overland Solution

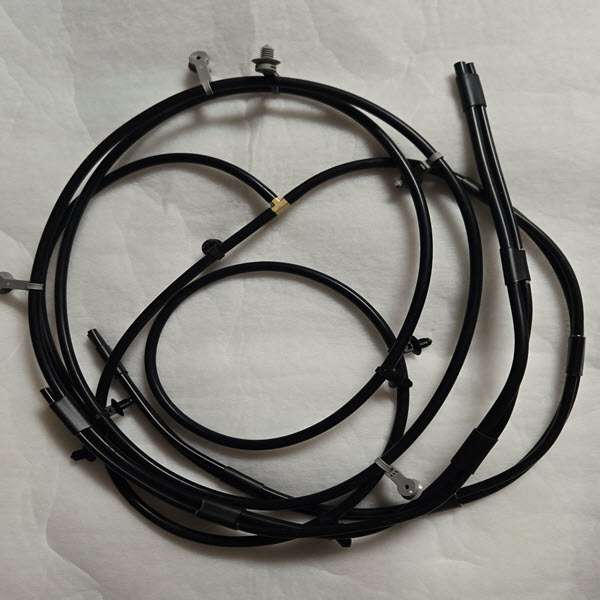

This direct-replacement silicone vacuum line assembly eliminates the weak factory vinyl hoses and replaces them with high-temperature silicone designed for long-term durability.

Each replacement line features:

• Premium silicone hose that remains flexible and crack-resistant

• A brass T-connector instead of fragile plastic fittings

• OEM-style fir-tree mounting clips for proper factory routing and secure retention

This is not a universal hose kit.
It is built specifically for the factory F-150 IWE routing and mounting points for a true OEM-style fit. The dual lines (vacuum site and vent side) that go down to the wheel ends are intentionally long to fit lifted trucks and Raptors, so you can cut them to size.

Replacing the vacuum lines restores proper vacuum delivery to the IWE system and often eliminates grinding and engagement problems without replacing expensive hub components.

✅ Why Silicone?

Silicone dramatically outperforms vinyl in engine bay environments:

• Resistant to heat cycling that causes vinyl to crack

• Will not harden or become brittle with age

• Resistant to oil, coolant, and road chemicals

• Maintains consistent vacuum performance

These lines are designed to outlast the factory components and prevent repeat vacuum failures.

✅ Installation

• Direct OEM replacement

• Uses original mounting locations

• No modifications required

• Typical install time: 15–30 minutes with basic hand tools

Perfect for driveway DIY repairs or quick shop installs.

Optional tools that can make the removal of brittle factory lines easier:

• Fir-tree removal tool (also useful for panel fasteners) – View on Amazon

• Flush cutters for zip ties – View on Amazon

(Tools are optional but will make your life much easier — no special tools are required.)

✅ Fitment

• 2004–2008 Ford F-150 4×4 models

• Includes all 4×4 models

• Designed specifically for vehicles equipped with the factory IWE vacuum hub system
