Ford Raptor Third Brake Light Wiring Harness

Developed to make the wiring a breeze on your new third brake light, these wiring harnesses were made for those either installing themselves or having a shop install. Developed to be plug and play, with only the upfitter section to hardwire.

Wiring Harness Options

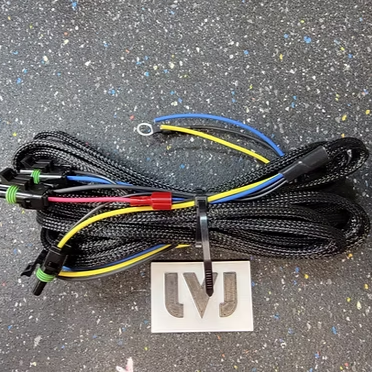

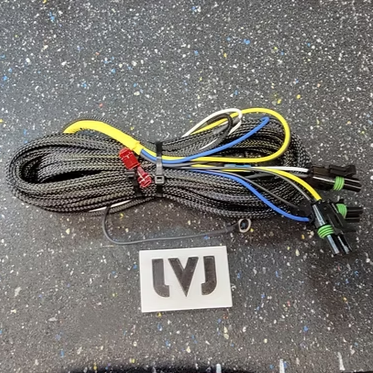

All wiring harnesses are cut to length and pre-terminated with weatherpack connectors and wrapped in soft loom for easy installation in your truck. The factory integration for the marker lights and cargo light uses the factory connector and does not require any cutting or soldering.

Basic Harness

This harness provides integration of the 3 marker/brake light LED's with factory wiring harness as well as connecting the center light to the cargo light circuit. Two additional circuits are provided to connect the outer lights to the factory upfitter switches in the passenger kick panel.

Reverse Light Harness

This harness has all the features of the basic harness, but also connects the center light to the brake light circuit so that it comes on automatically when the truck is placed in reverse. This kit adds an additional diode so the light can also be controlled from an Aux switch.

Stop/Tail/Turn Harness

This harness includes a stop/tail/turn controller to integrate the outer to lights with the factory brake/turn signals. It includes inputs for connecting to your aux switches for:

• Master power to turn the system on/off
• Strobe Function
• Strobe pattern change (momentary switch to be optionally mounted in the dash)
• Constant on override to disable the turn/brake integration

Stop/Tail/Turn Harness with Reverse

This harness has all the features of the Stop/Tail/Turn harness, but also connects the center light to the brake light circuit so that it comes on automatically when the truck is placed in reverse.

Y Splitter - 2 Way

*Update*

• This isn't really needed as you can just connect two wires to one upfitter switch. Makes for a cleaner install and doesn't cost any extra.

This allows you to connect two lights to the same aux switch with a pre-terminated Y cable. This cable is terminated with weatherpack connectors and is plug and play.
